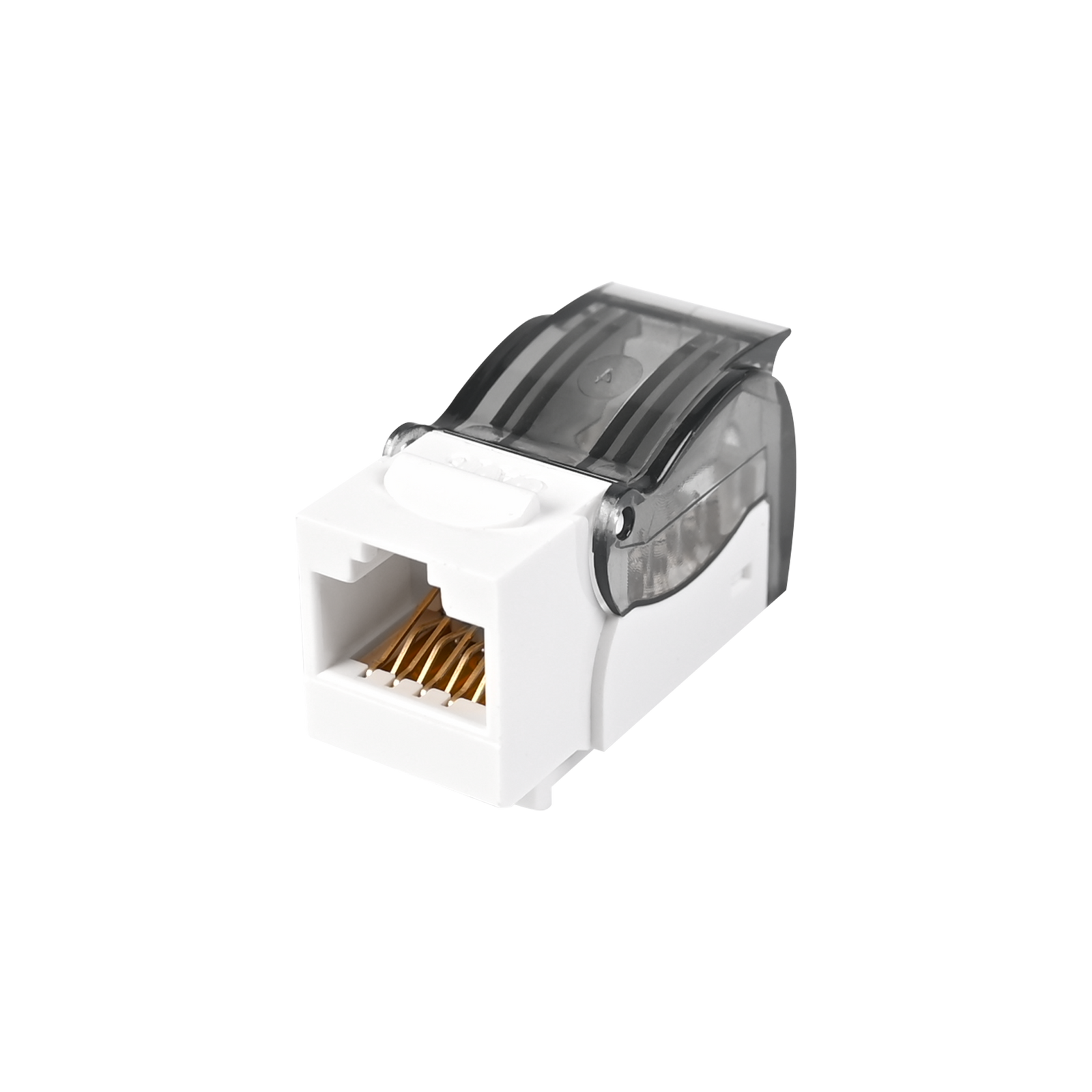

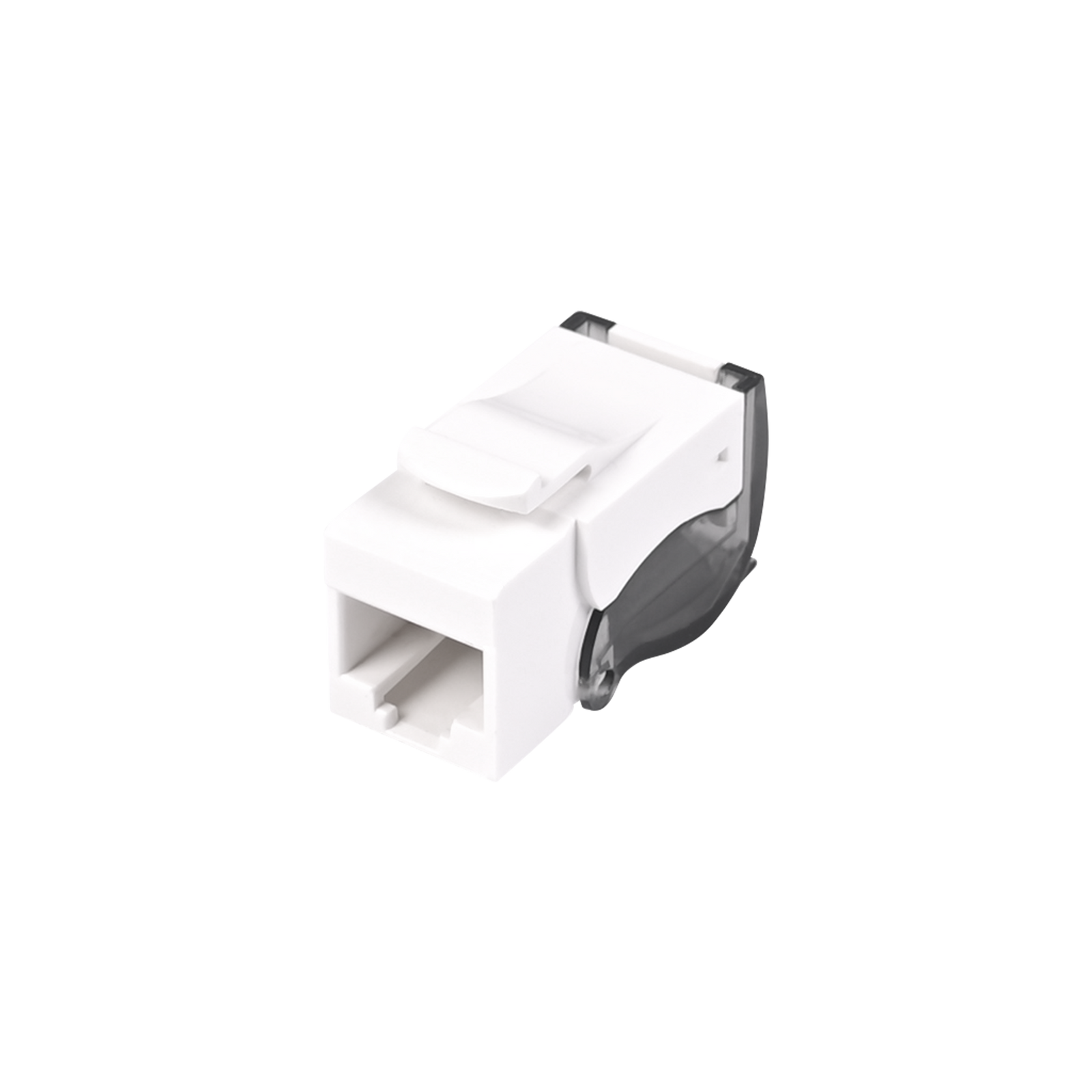

Unshielded Toolless Cat6 Keystone Jack

Unshielded Toolless Cat6 Keystone Jack VCELINK

C269-C6-5P-OL
$9.99
In Stock 600+
QuantityPrice Per Unit / PackSavings
10-49 $9.505%
50-99 $9.0010%
100+ $8.0020%
Item Quantity
Saves you %

Free Shipping for Orders Over $10.99 in the US.

Fast shipping. Know More at Delivery & Return.

For more information, please send us an inquiry or email us.

Features:

  • Toolless Design Without Professional Punch Down Tools
  • Ideal for Unshielded Ethernet Cables
  • 90 Degree Style with Gold-Plated Contacts
  • Dual Wiring Diagrams for T568A and T568B
  • Worldwide Shipping & Fast Delivery
  • 12-month Warranty & Lifetime Product Support

Pairs Perfectly With

  • patch panel rj45
  • keystone plate

    Keystone Wall Plate VCELINK

    $0.99

    Style
Total price: --
Prices shown may not reflect final costs.

Description

VCELINK Unshielded Toolless Cat6 Keystone Jack is designed to be used with unshielded (U/UTP) Ethernet cables. The toolless design makes it easy to install without any need for a professional punch-down tool, ideal for network technicians and novices. The 90-degree design with gold-plated contacts offers stable and reliable data transmission. It is compatible with all standard wall plates, surface mount boxes, and patch panels, ensuring seamless connectivity and easy cable management. Upgrade your home and office networks and data centers with our unshielded Cat6 keystone jack.

Specifications

Product Type Cat6 Keystone Jack
Wiring Diagram T568A/T568B
Dimensions 1.38''x 0.65''x 0.77''
Termination Type Keystone Jack
Style 90-degree, Toolless; Unshielded
Data Rate Support 10 Gbps
Housing Material PC
PCB Material FR4; Thickness: 1.6mm
Contact Material Phosphor Bronze
IDC Contact Material Phosphor Bronze Nickel Plated
Voltage Rating 125 VAC RMS
Current Rating 1.5 AMP
Contact Resistance 100 MILLIOHMS MAX
Dielectric Strength 750 VAC RMS 60Hz 1MIN.
Storage Temperature -40°C ~ 85°C
Operation Temperature 0°C ~70°C
Usage 23 AWG to 24 AWG Stranded and Solid Wires

Features

High-performance Data Transmission

-Supports Cat6 network speed;

-Equipped with gold-plated contacts, this keystone jack ensures stable data transmission, minimizing signal loss and maximizing network performance.

Great Compatibility and Versatility

-This keystone jack is compatible with both 23 to 24 AWG solid and stranded wires, offering versatility in your wiring setups;

-Paired with unshielded (U/UTP) Ethernet cables for seamless compatibility;

-Fully compatible with standard wall plates, surface mount boxes, and patch panels.

Easy Installation

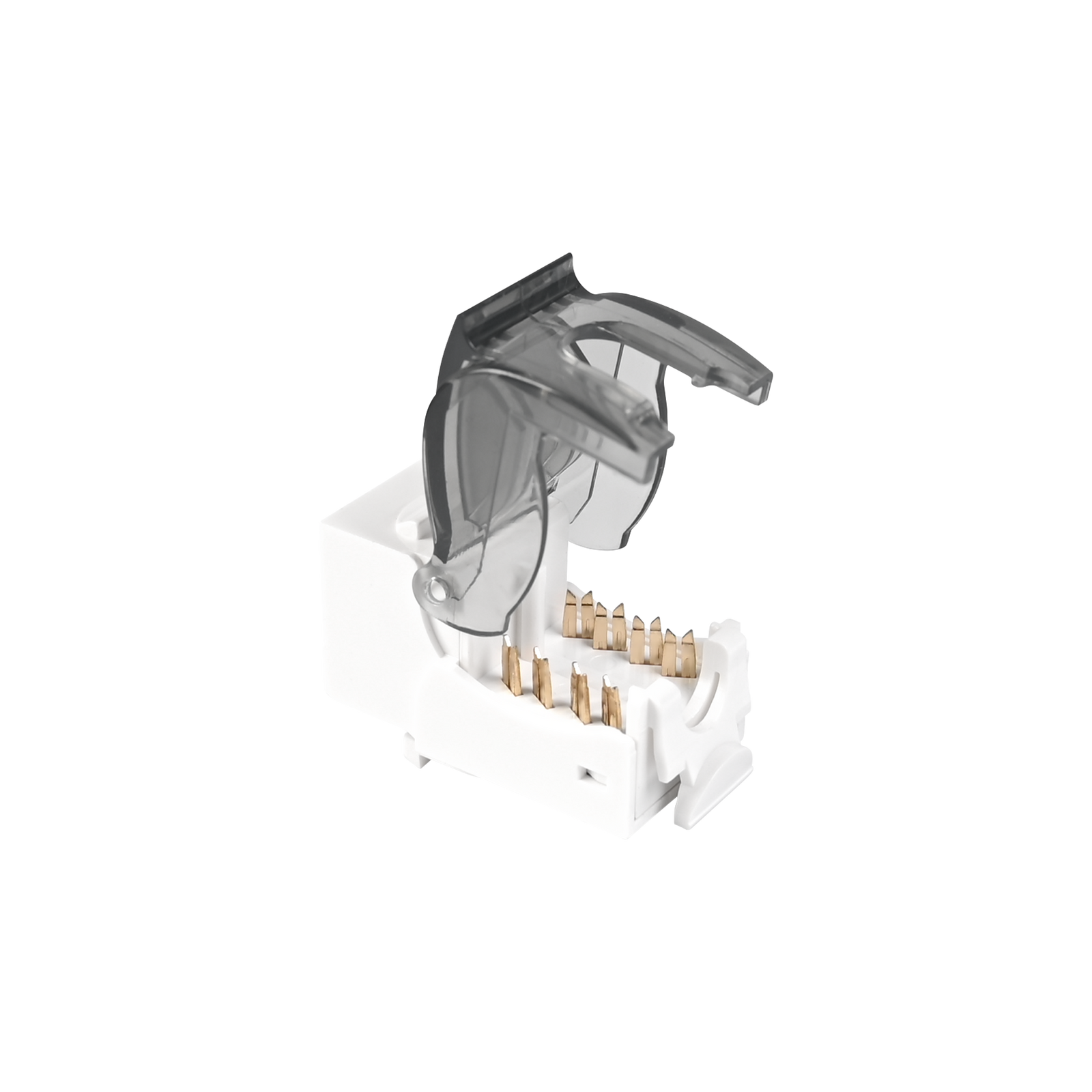

-This 90-degree toolless keystone jack can be easily installed without the need for punch-down tools, saving you time and effort;

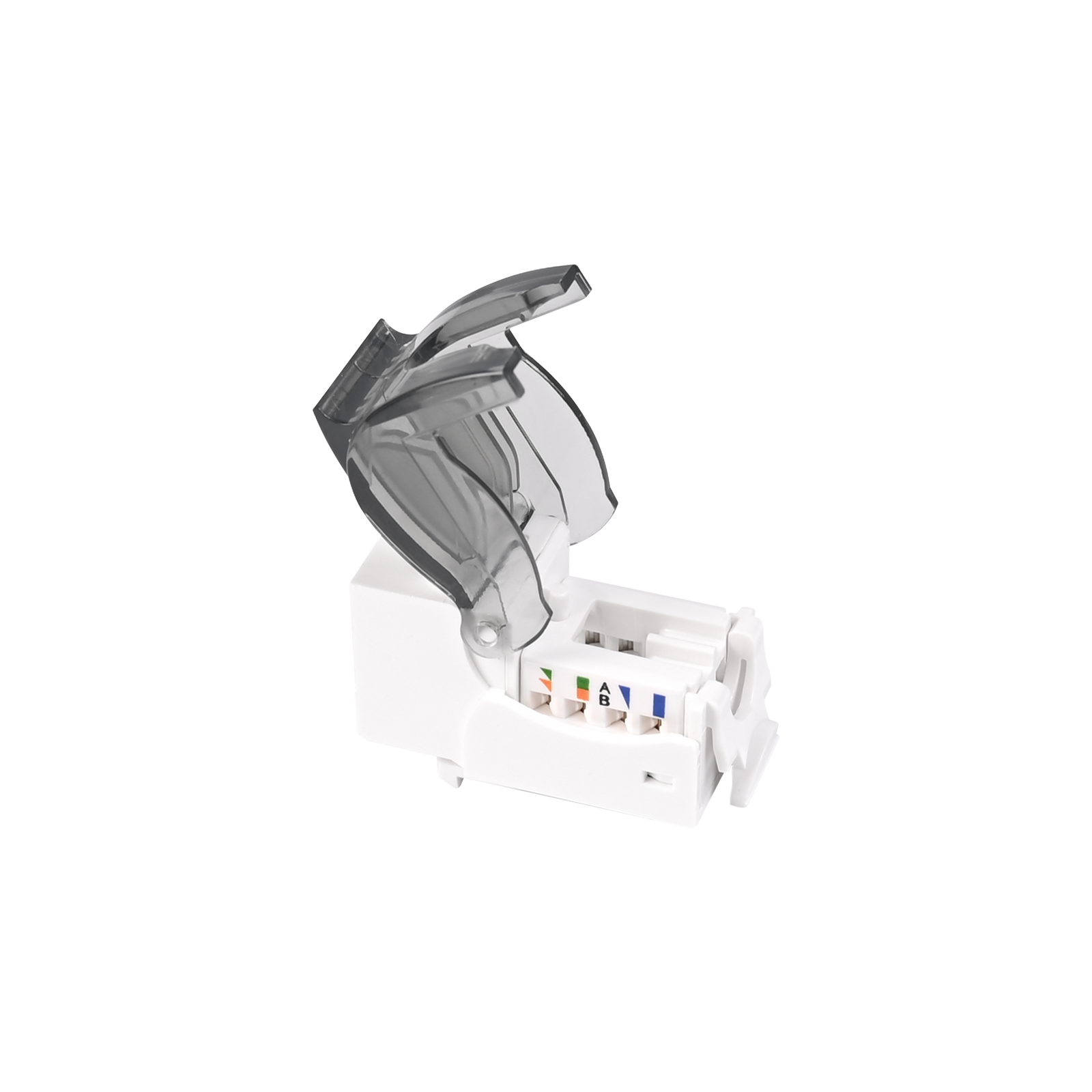

-Printed with T568A and T568B wiring diagrams on the body for easy identification and installation.

Wide Applications

-Providing stable and reliable connections for home networking, office environments, small business networks, and even data centers.
