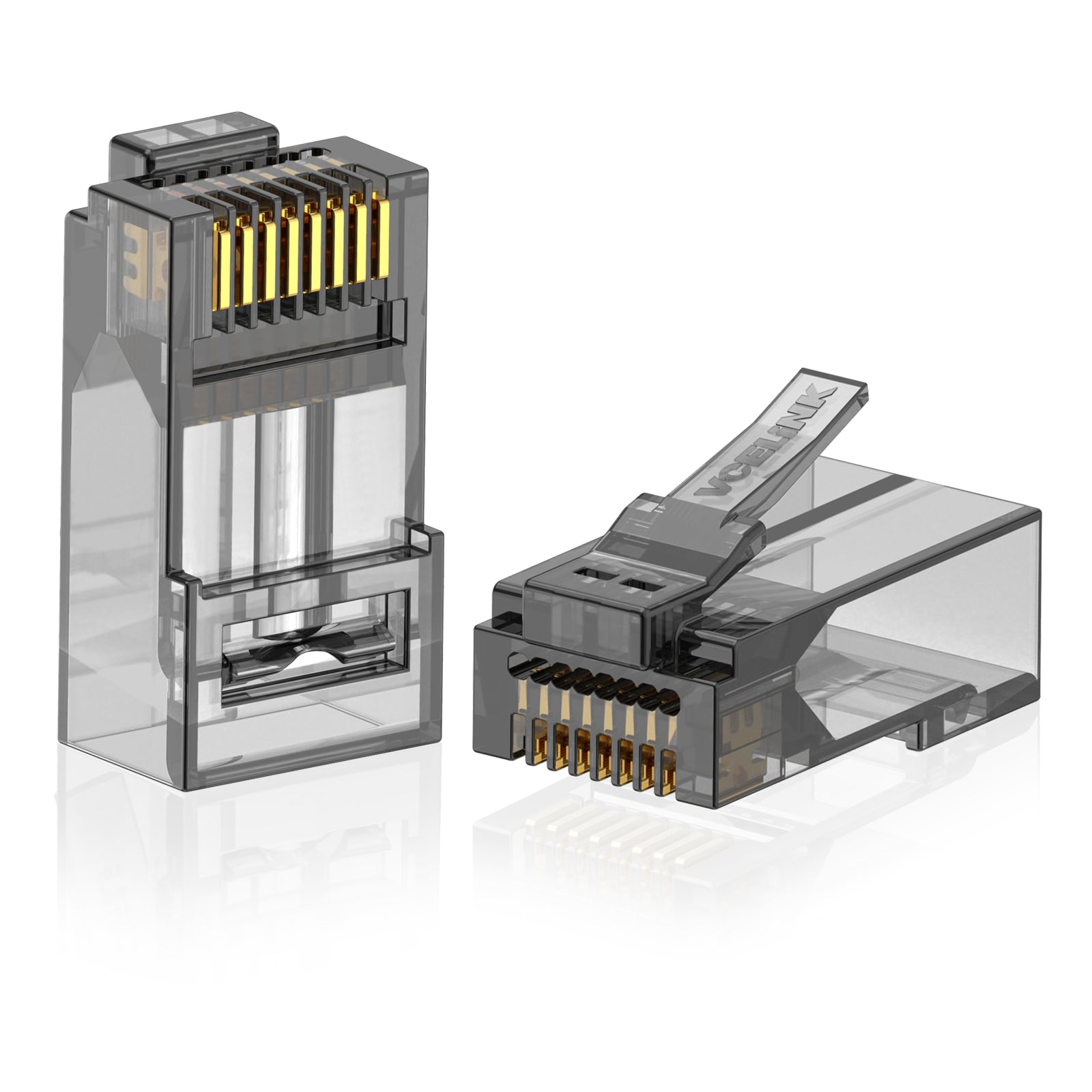

Cat6 RJ45 Pass Through Connector

Cat6 RJ45 Pass Through Connector VCELINK

SJ661-25P-OL
$6.99
In Stock 700+
QuantityPrice Per Unit / PackSavings
10-24 $6.655%
25-49 $6.448%
50+ $5.9515%
Item Quantity
Color
Saves you %

Free Shipping for Orders Over $10.99 in the US.

Fast shipping. Know More at Delivery & Return.

For more information, please send us an inquiry or email us.

Features:

  • Housing Material: Polycarbonate, UL94V-0
  • Blade Material: 50u" Gold-plating + Copper Alloy
  • Insulation resistance: 500 MΩ
  • 12-Month Warranty & Lifetime Product Support

Pairs Perfectly With

  • network crimping tool
  • cable strain relief boot

    RJ45 Strain Relief Boot VCELINK

    $7.99

    Item Quantity
Total price: --
Prices shown may not reflect final costs.

Description

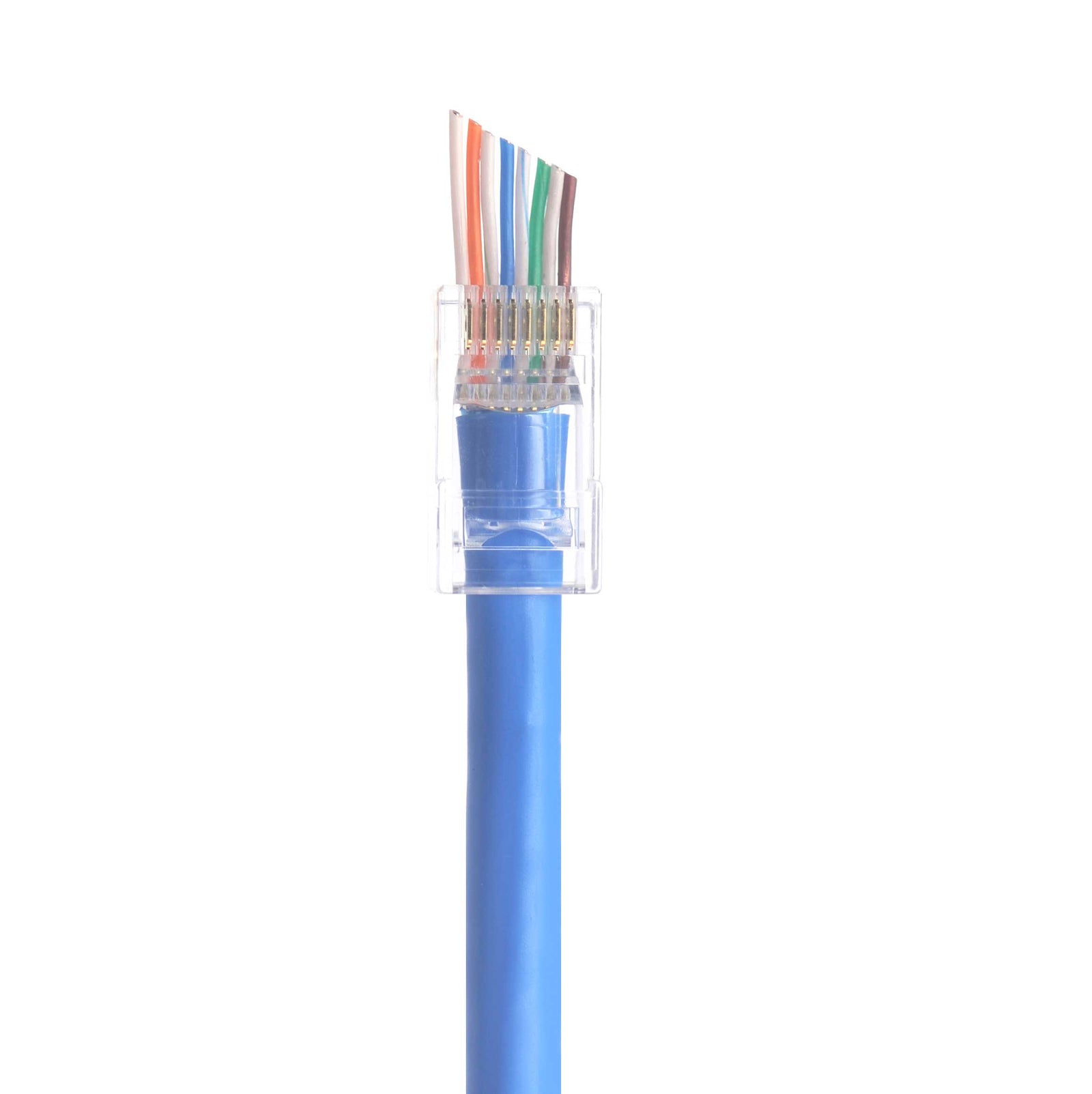

VCELINK Cat6 Pass-through Connector is your great helper for DIYing a patch cable. This Cat6 connector is compatible with Cat6, Cat5e, and Cat5 unshielded cables, and is suitable for Ethernet cables with an outer diameter ranging from ∅0.93 to ∅1.04. It is an ideal choice for a variety of applications, including home decor wiring and office network installation. With its pass-through design, VCELINK Cat6 connector is suitable for everyone even if you are a novice.

Contact us or email us if you have any requirements for bulk purchasing and customized services.

Learn more about pass-thru and non-pass-thru RJ45 connectors in Pass Through vs. Non Pass-Through RJ45 Connector.

Paired with RJ45 crimpers (GJ670BL or GJ671BL).

Specifications

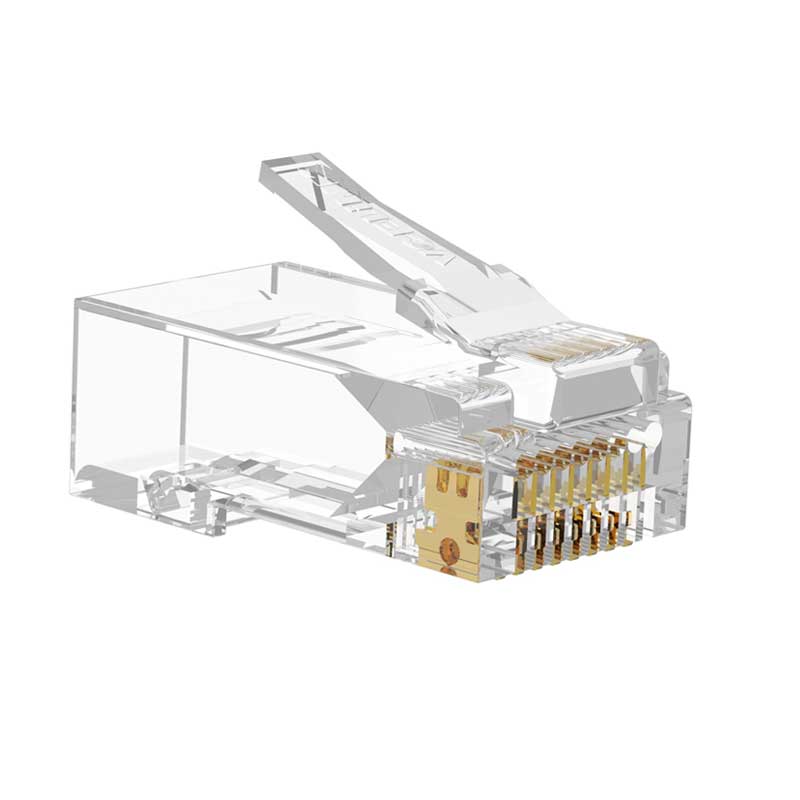

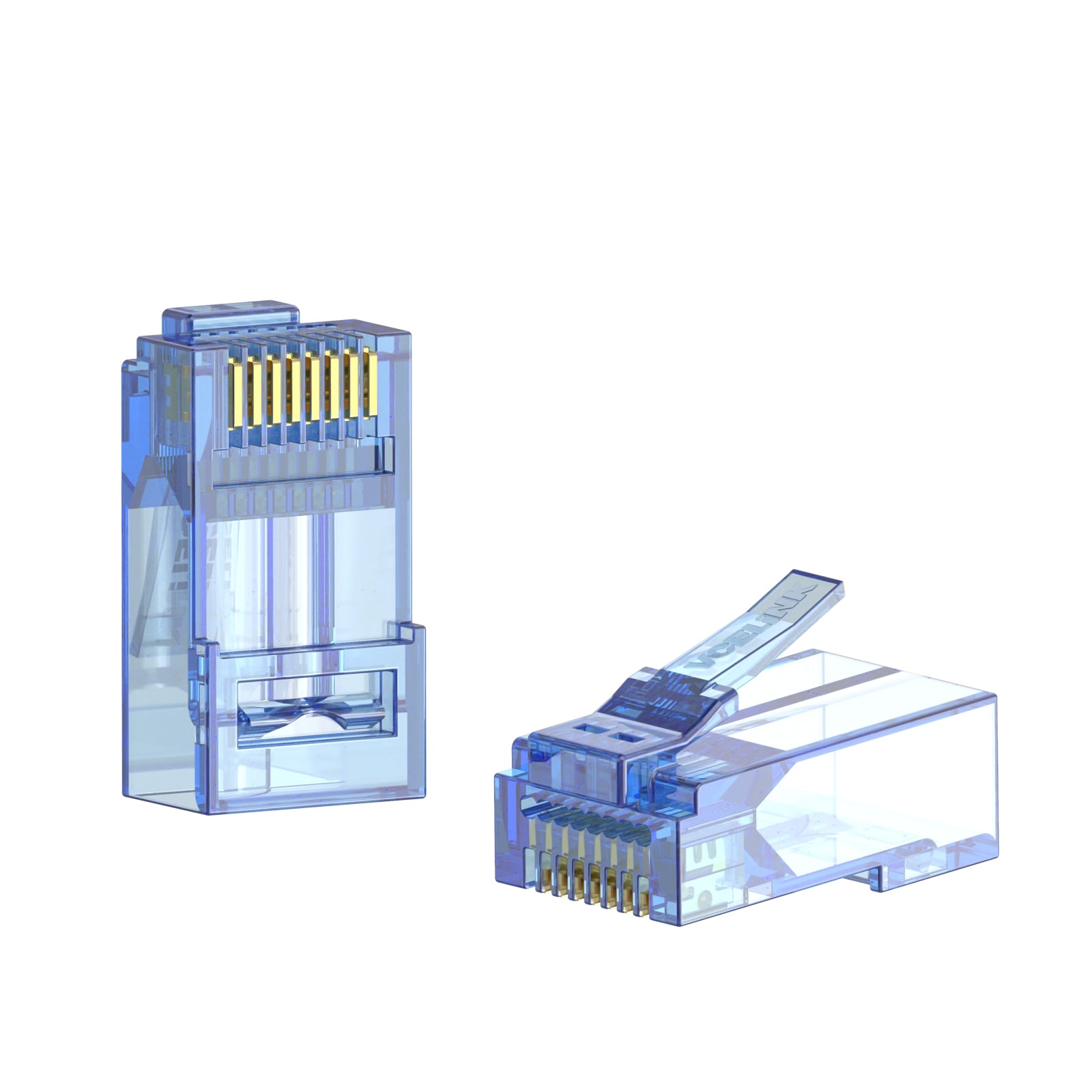

Product Type Cat6 RJ45 Connector
Termination Type 8P8C Connector
Style One-piece; Pass-through; Unshielded

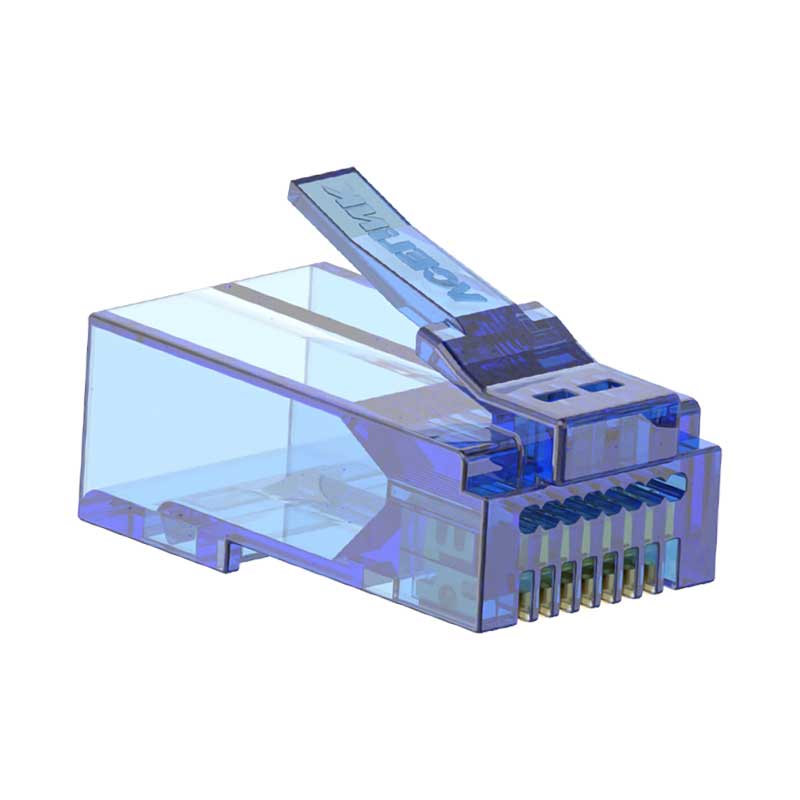

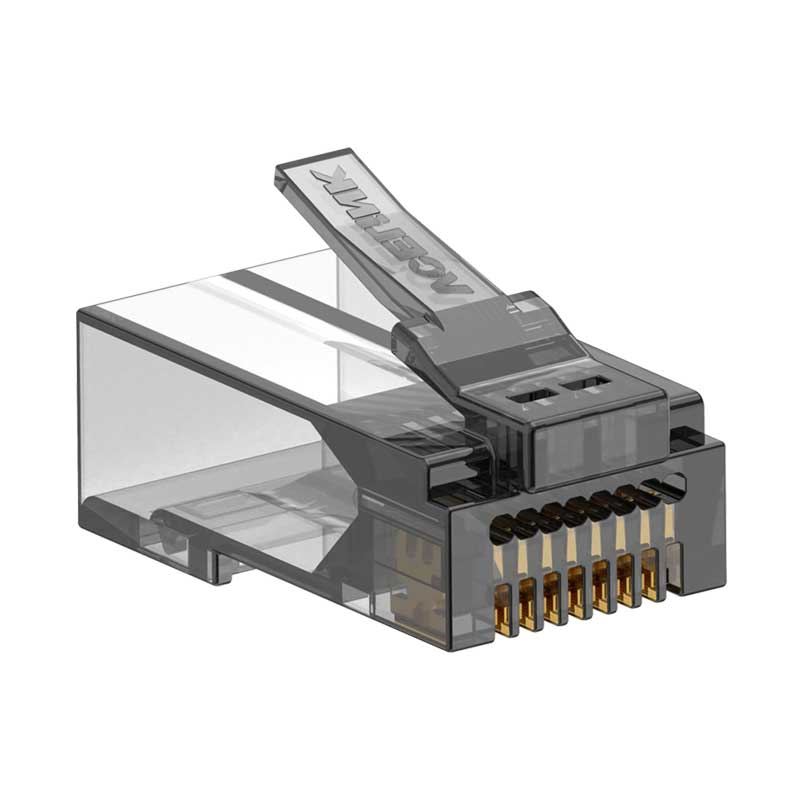

Color Transparent/Blue/Black

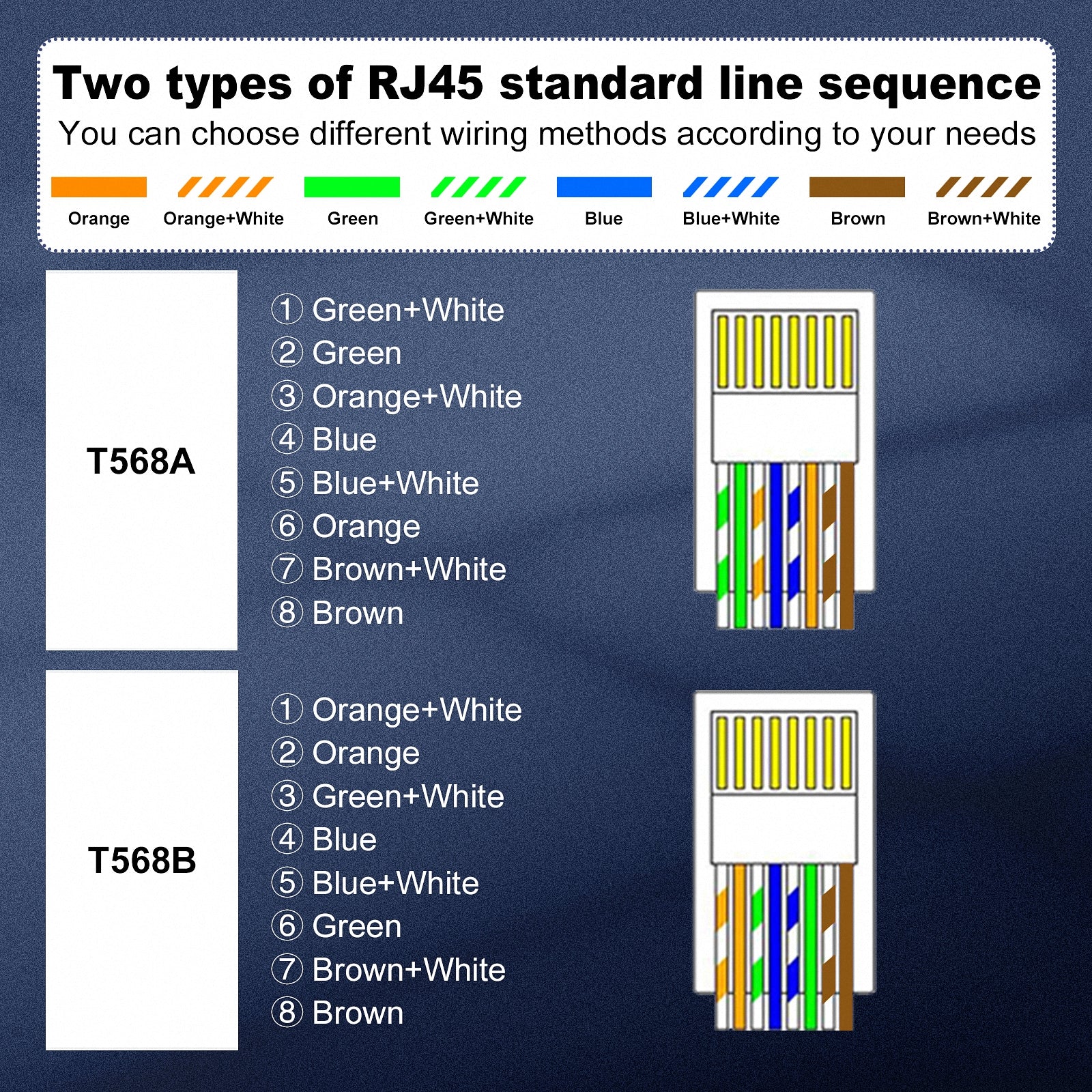

Wiring Scheme T568A/T568B
Data Rate Support 1000 Mbps
Housing Material Polycarbonate, UL94V-0
Contact Blade Material Copper Alloy
Gold-Plating 50 Micron
Operating Ambient Temperature -20°C ~ 75°C
Strain Relief Test 20 Pound MIN.
Durability 1200 Mating Cycles

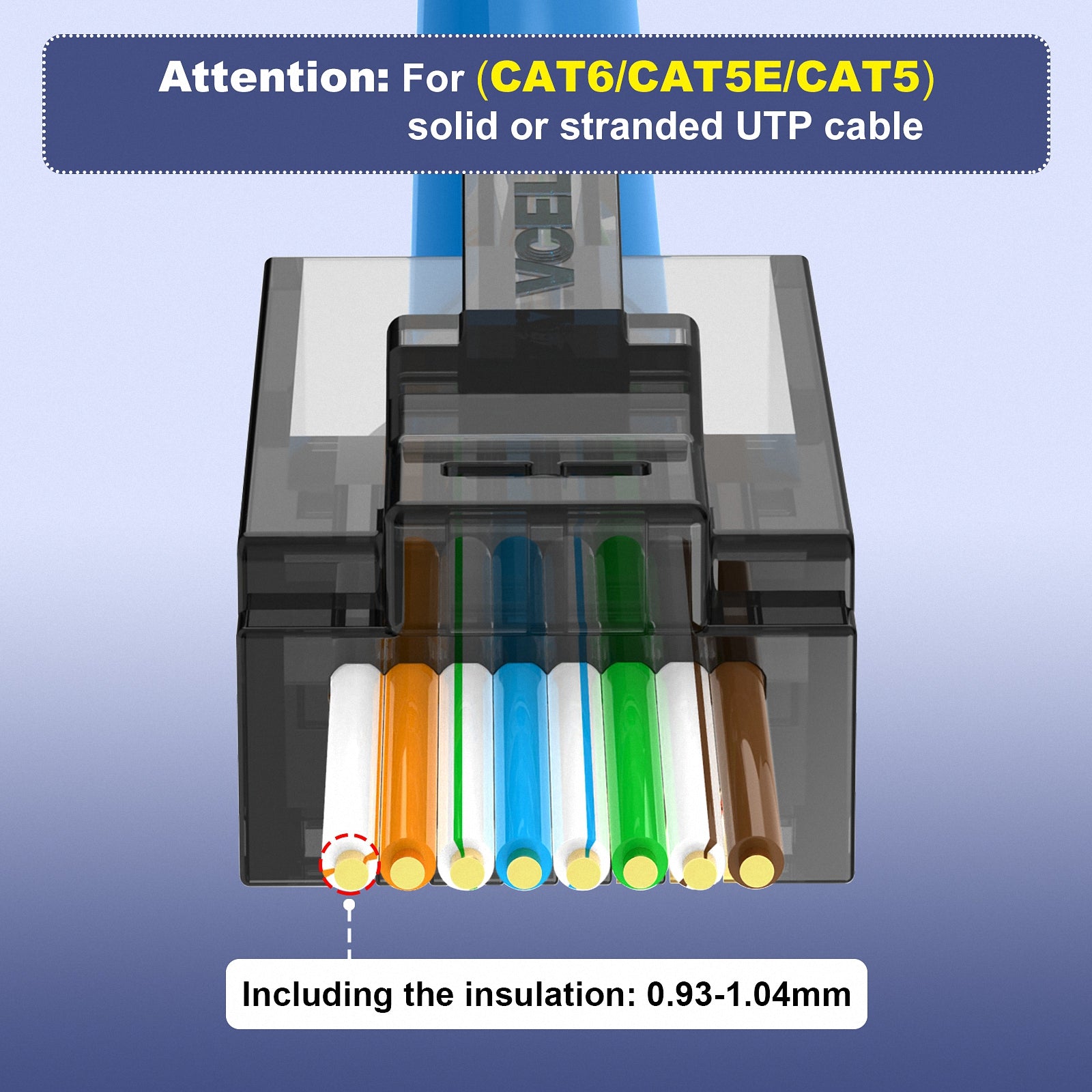

OD of the Individual Cable Core Ø 0.93 ~ Ø1.04
Usage Stranded or Solid Wire 23 AWG to 26 AWG

Features

Backward Compatibility

Our Cat6 plugs are designed for Cat6 Ethernet cables but are backward compatible with Cat5e and Cat5 cables.

Easy Installation

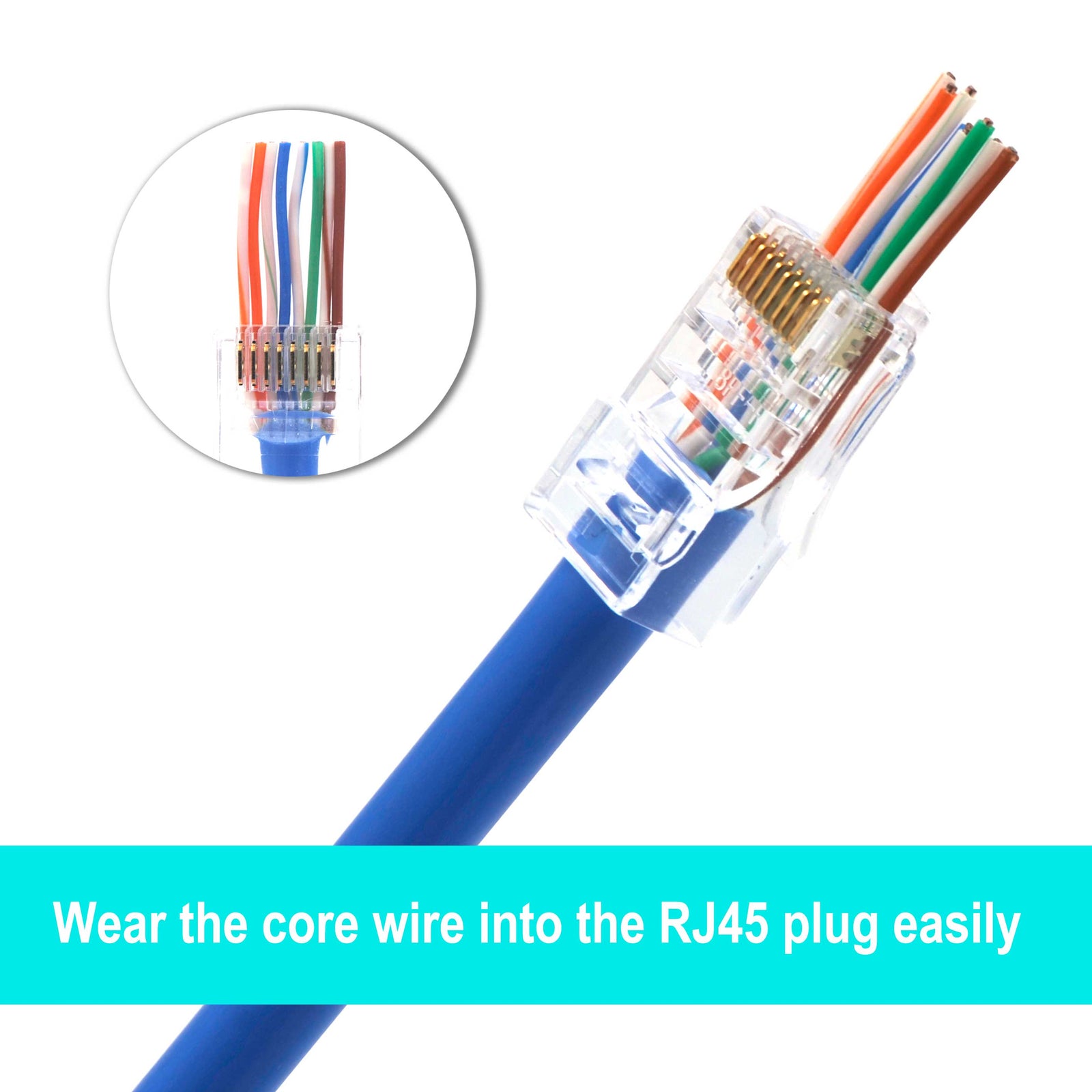

The pass-through design makes it easy to install and allows you to double-check the wire diagram to reduce termination errors.

Stable Transmission

-With the high performance of Cat6, the transmission speed can reach 1 Gbps (1000 Mbps);

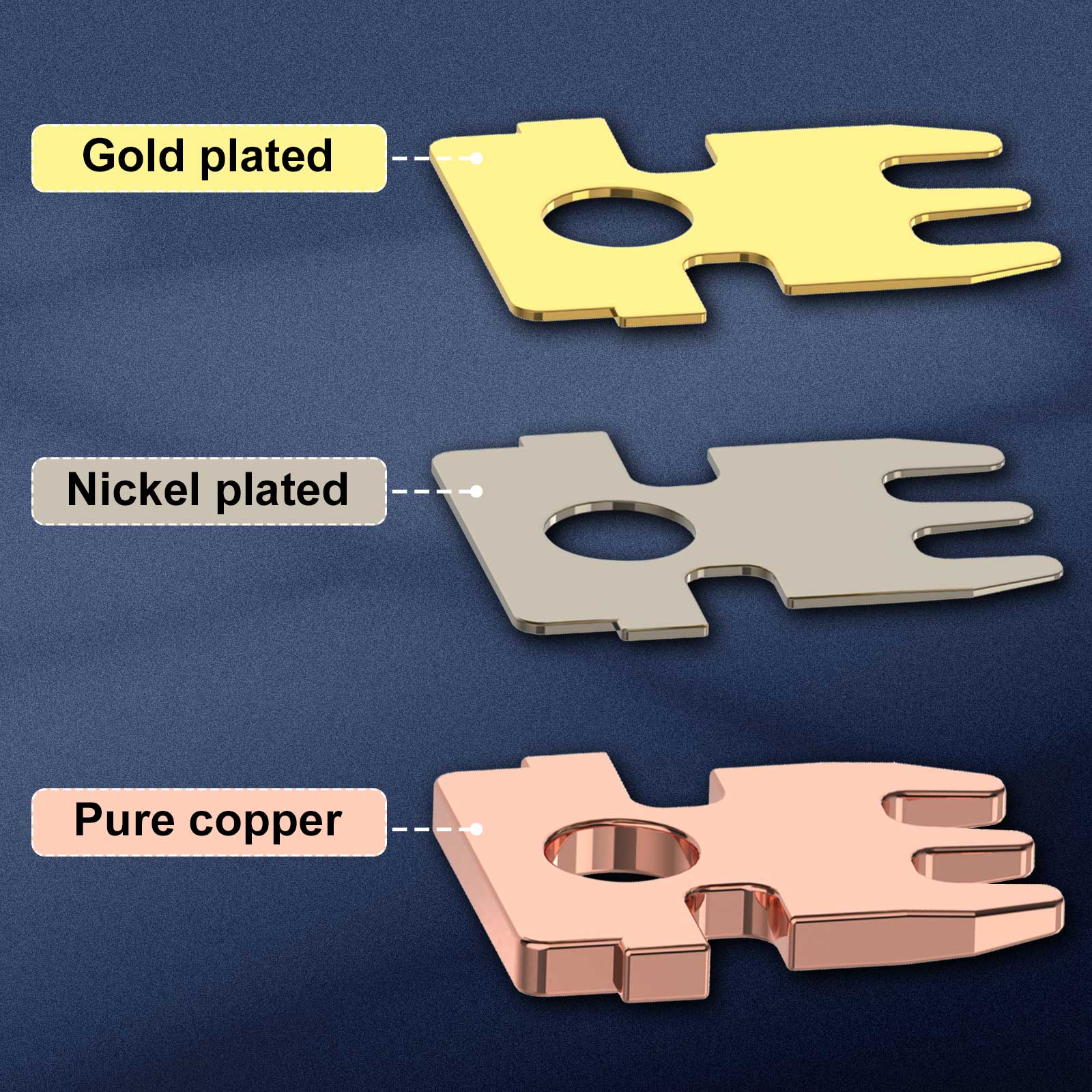

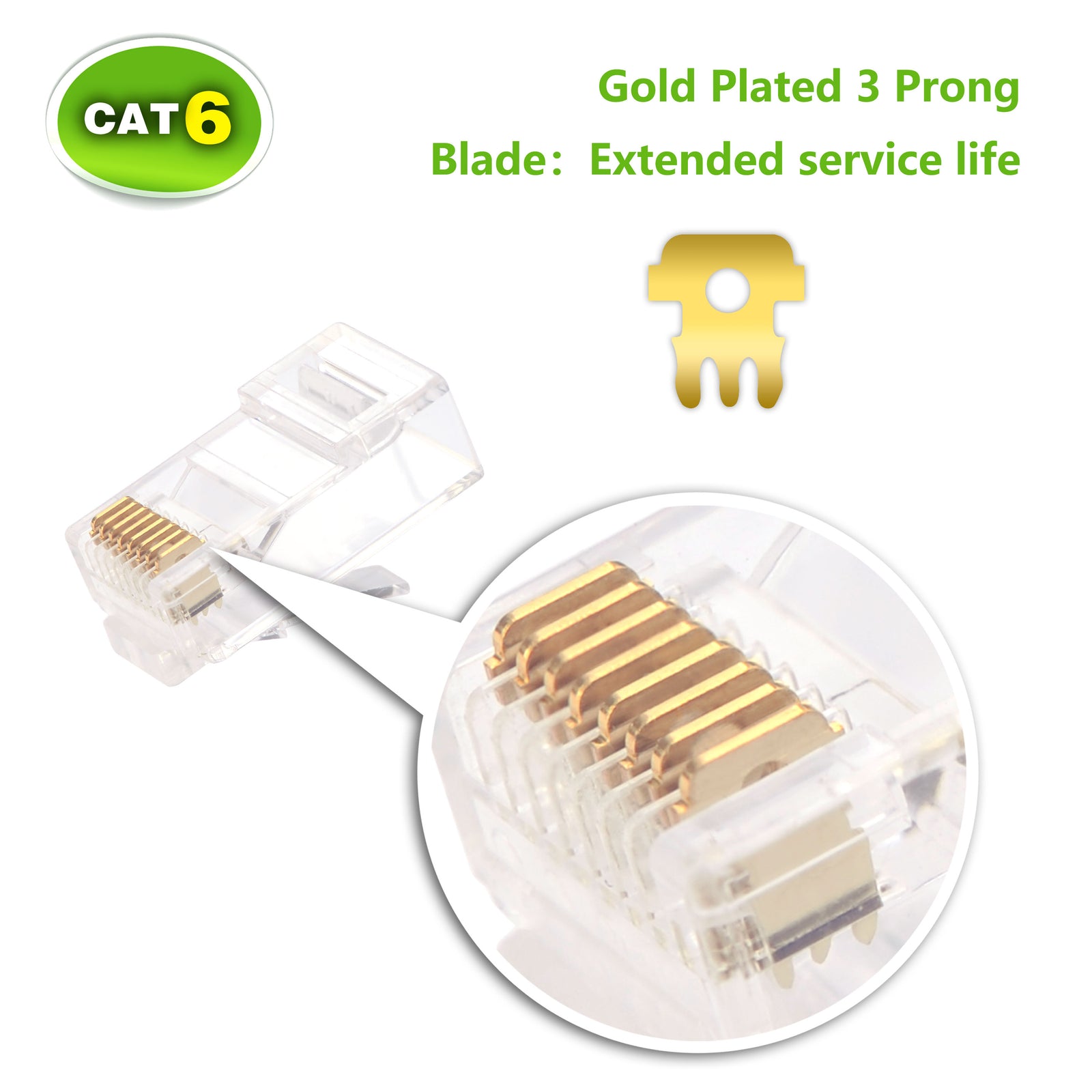

-The 3-prong, 50μ gold-plated contacts ensure a tighter bond between the contacts and the cores than the 2-prong inserts, which also provide a stable transmission.

Wide Applications

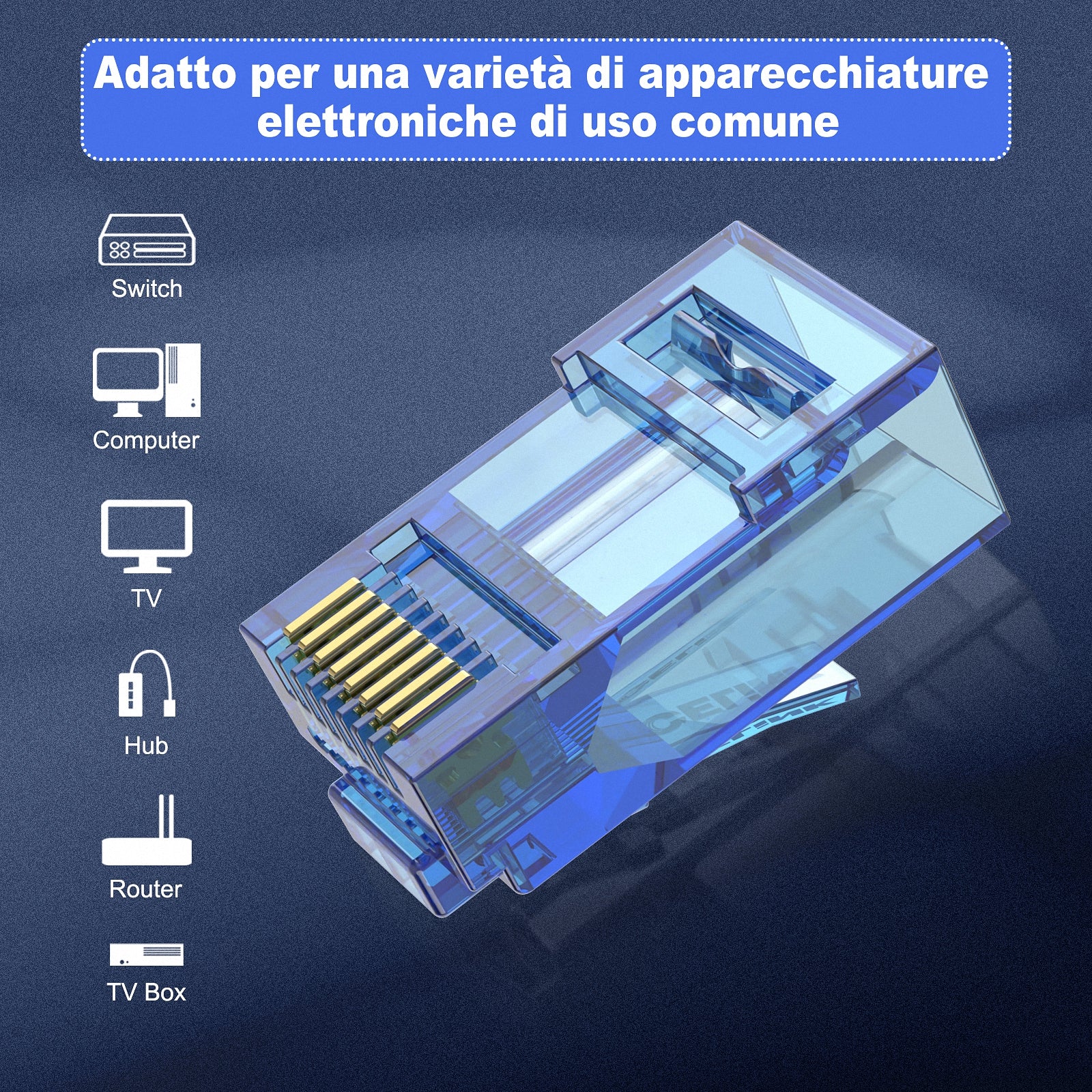

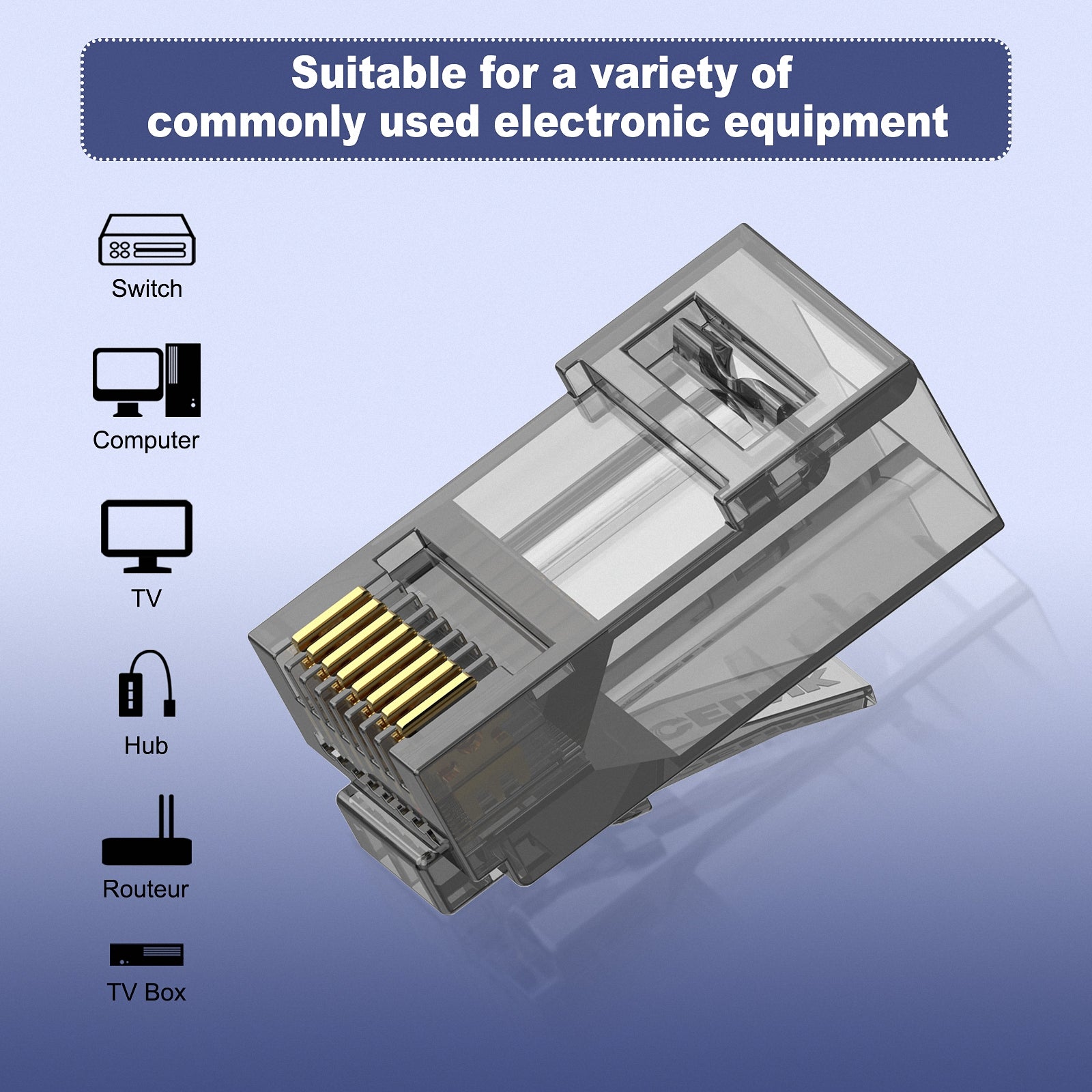

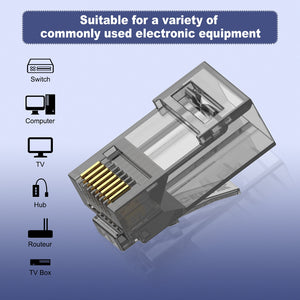

-Suitable for devices with standard RJ45 jacks such as PC, ADSL, routers, Switches, etc;

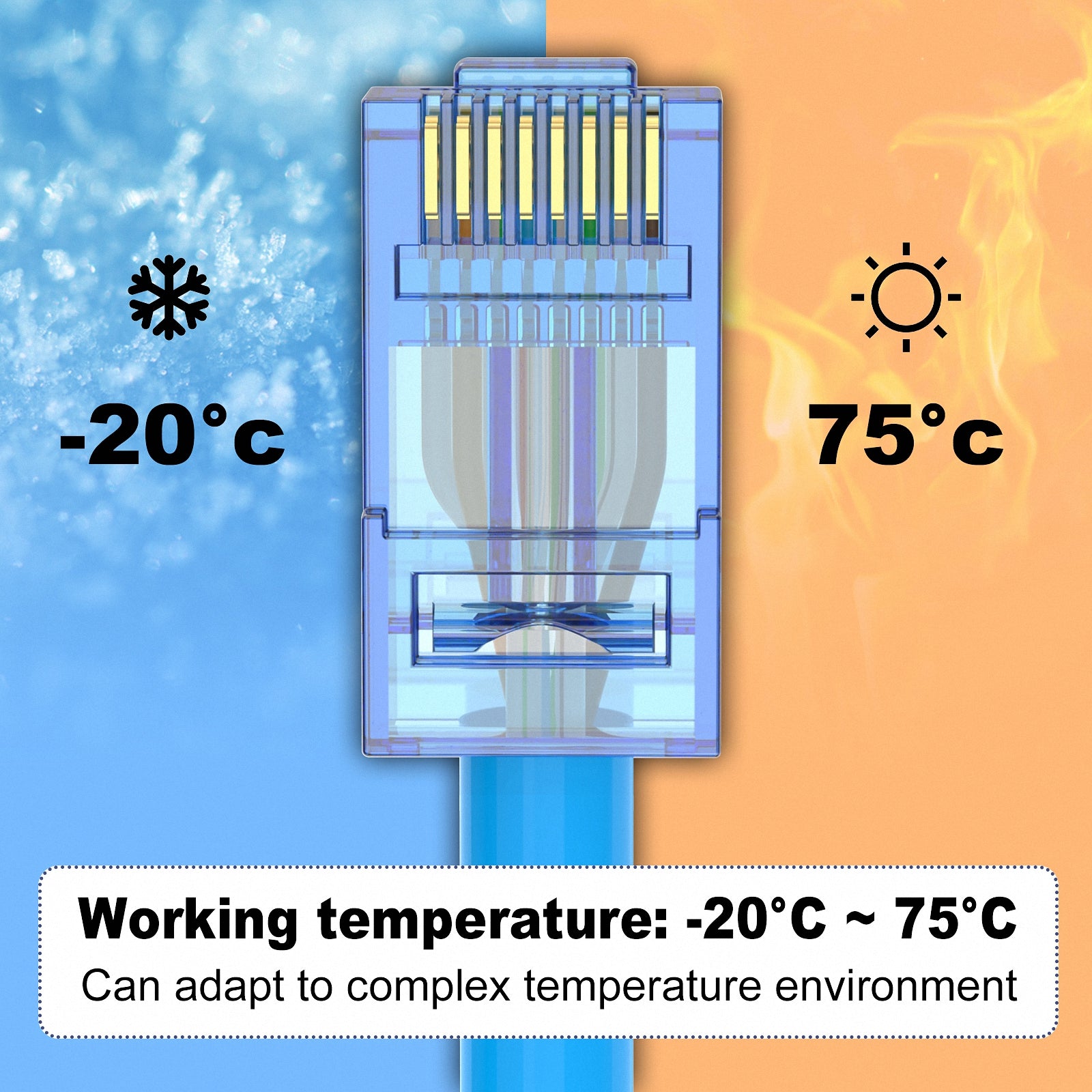

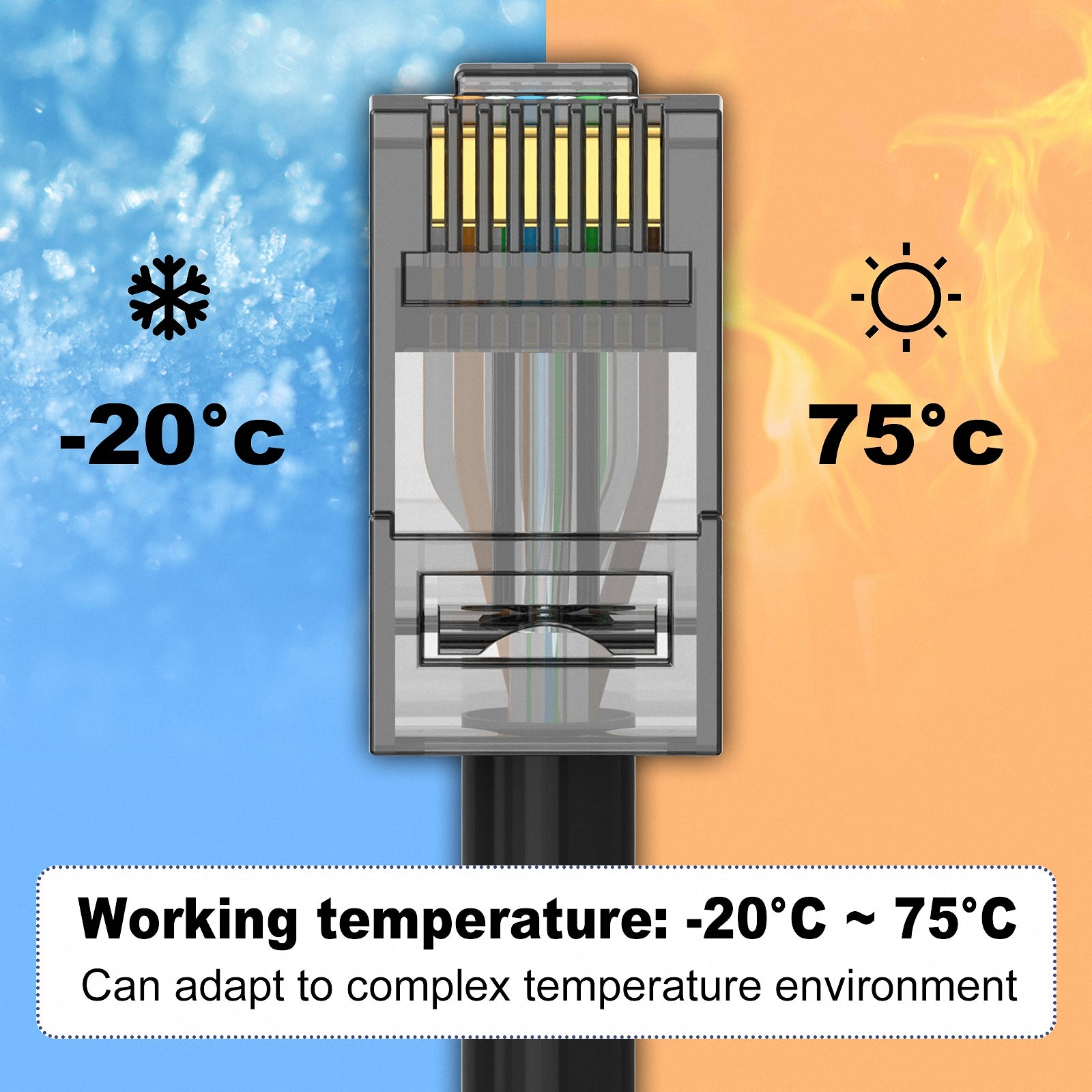

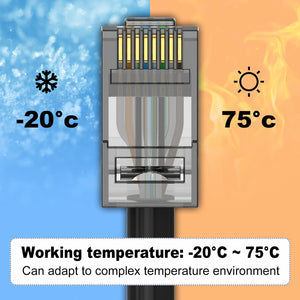

-Our RJ45 plugs support working environment temperatures from -20℃ to 75℃.

Video

Q&A

  • Do you have "loading bars" compatible with this item?

    Dear Customer,
    Thanks for your inquiry! This product does not have the load bar, which are pass-through connectors.
    Thanks& Best Regards.
  • Do you have to have the special crip tool? Or can you use an ordinary one?

    Dear customer, yes,you can use the tool as following link:
    https://www.vcelink.com/products/rj45-pass-through-crimper
    Thanks & Best Regards!

Reviews

Customer Reviews

Based on 92 reviews
67%
(62)
17%
(16)
15%
(14)
0%
(0)
0%
(0)

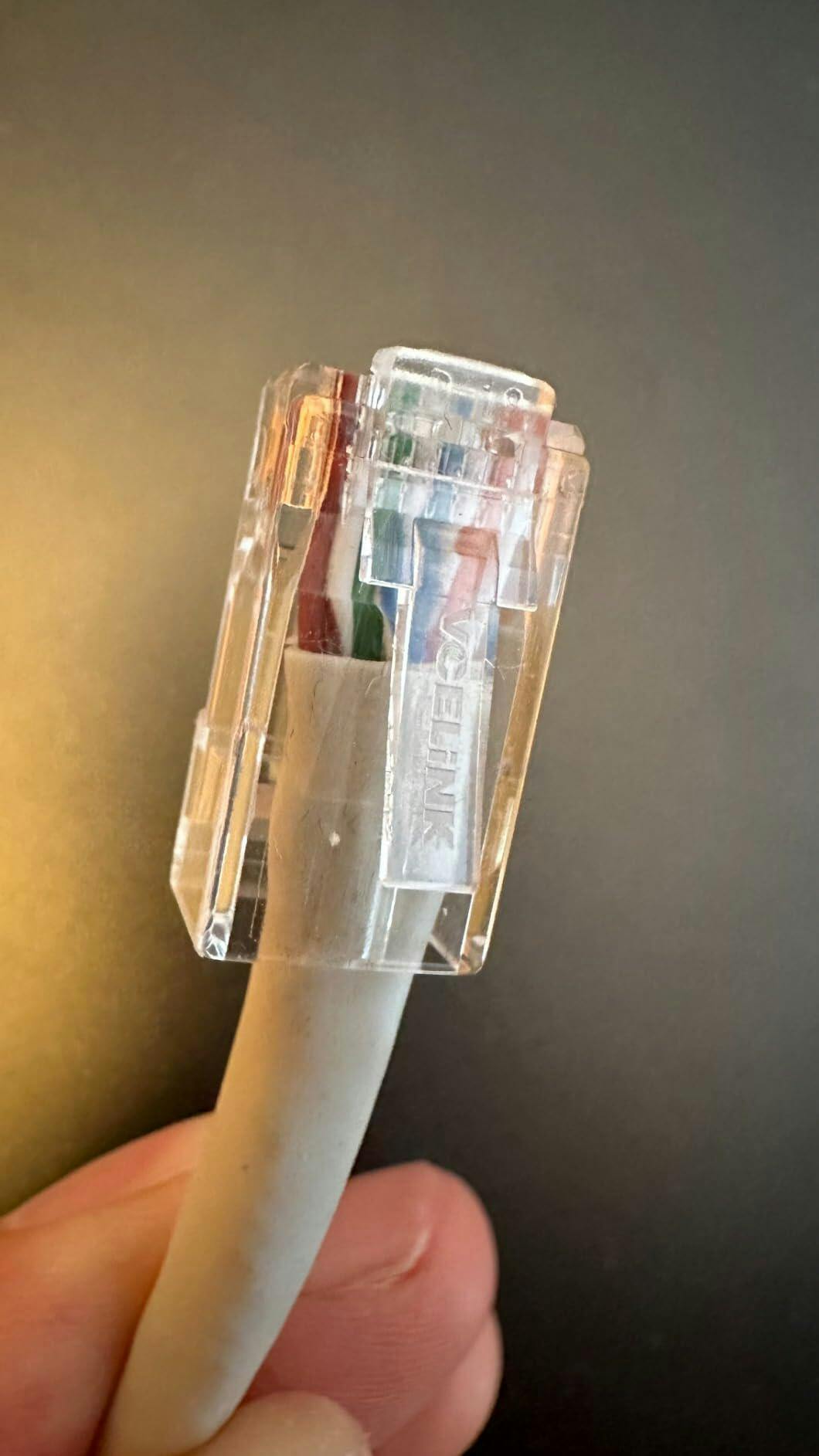

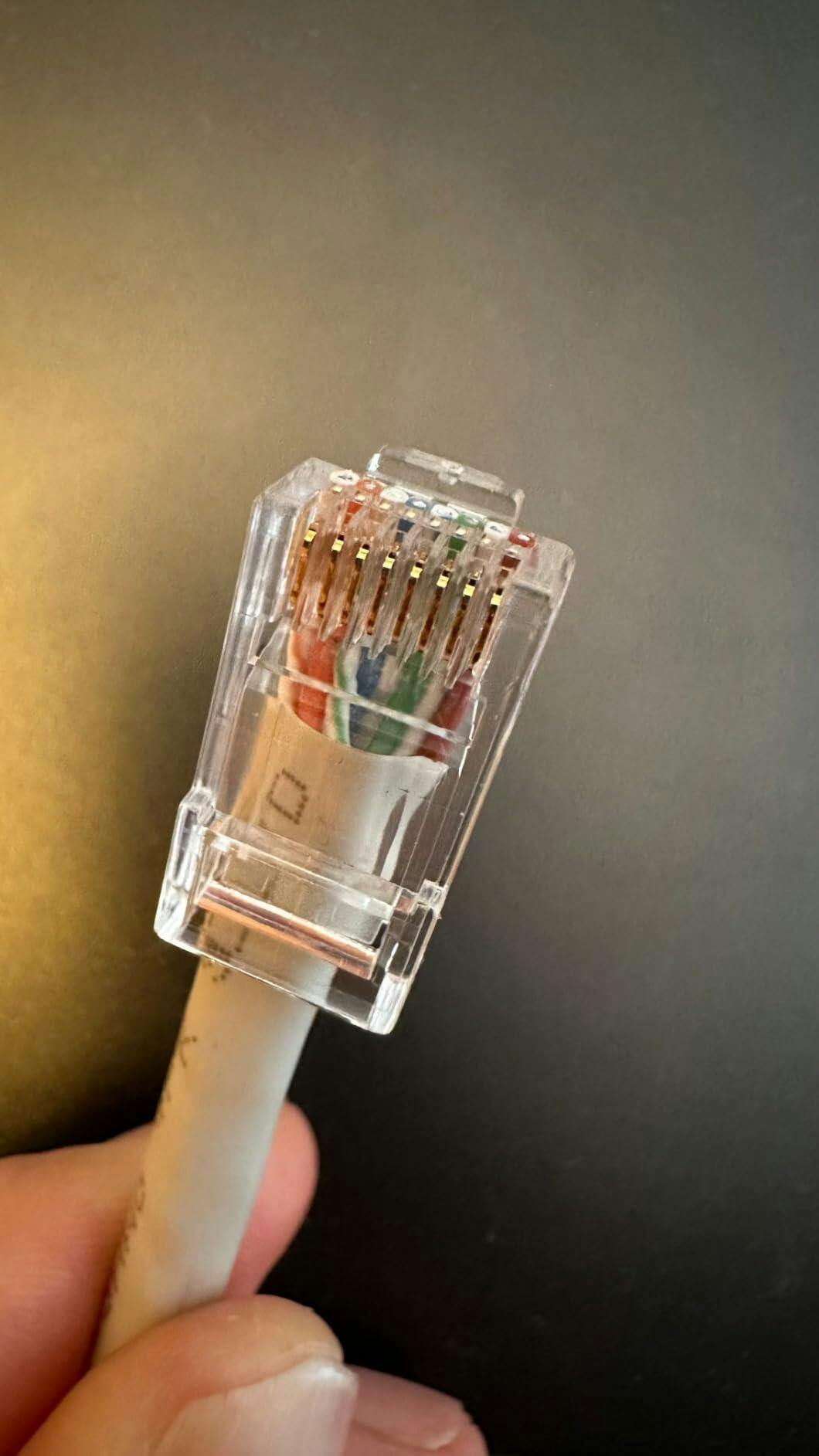

E
Ermanno P.R.

Molto pratici e funzionali! Ad oggi ne ho utilizzato circa 80 senza mai riscontrare problemi!

E
Evan

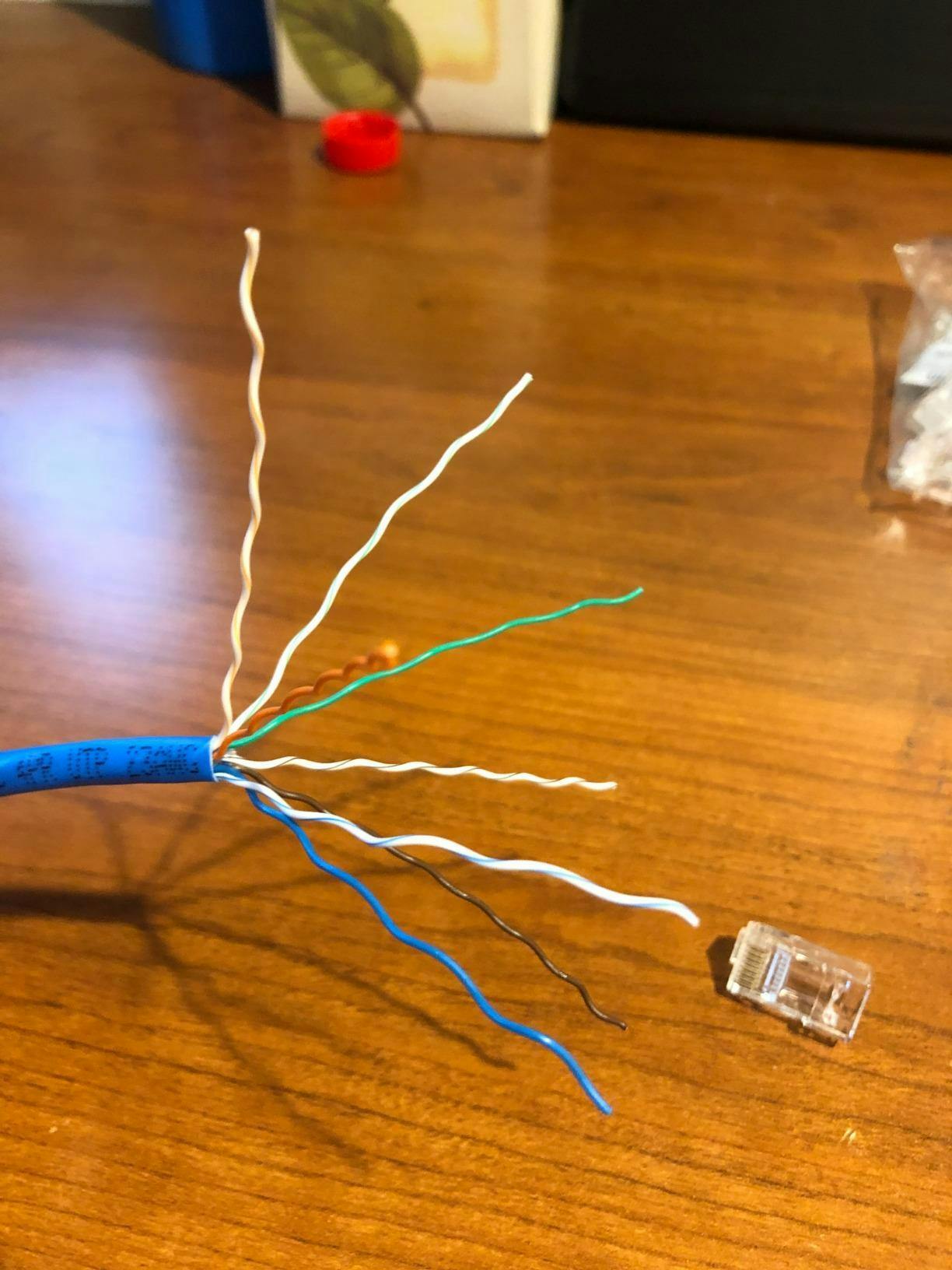

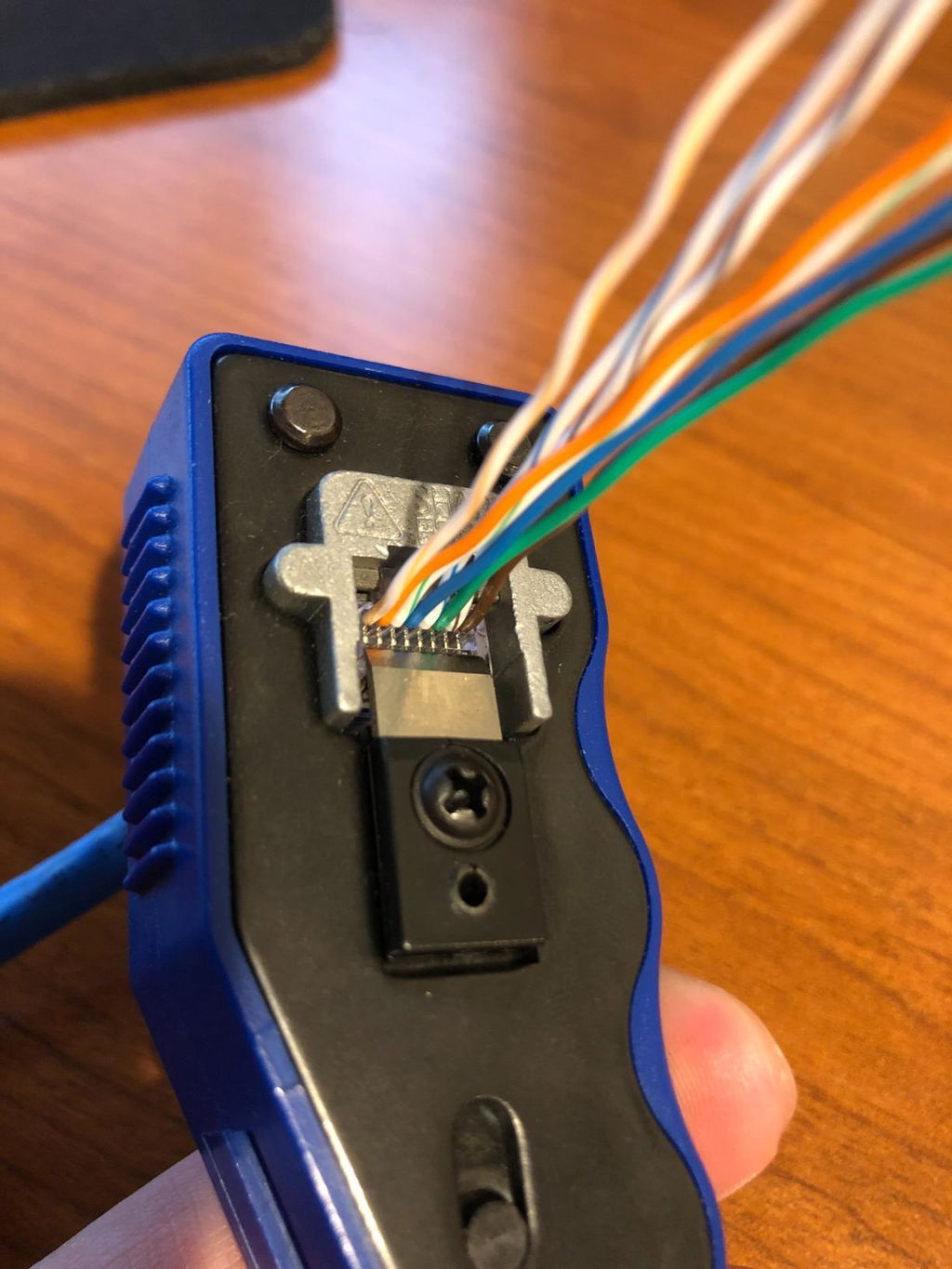

For those who are complaining that these are more difficult to use than the standard non-pass through style, you must be doing it wrong. For best results, you shouldn't need to cut and then pull back before terminating. It should be done in one motion with the correct tool

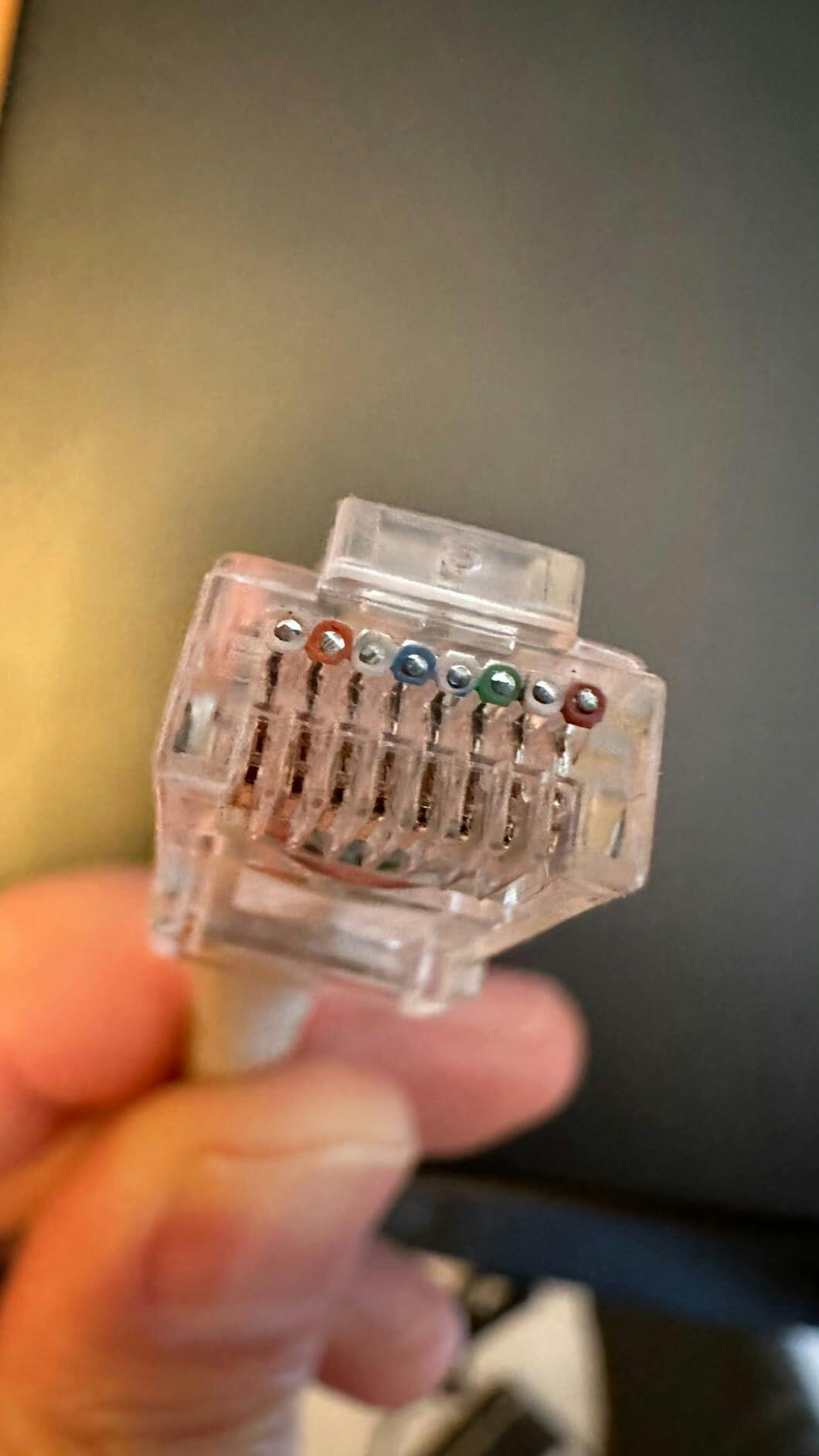

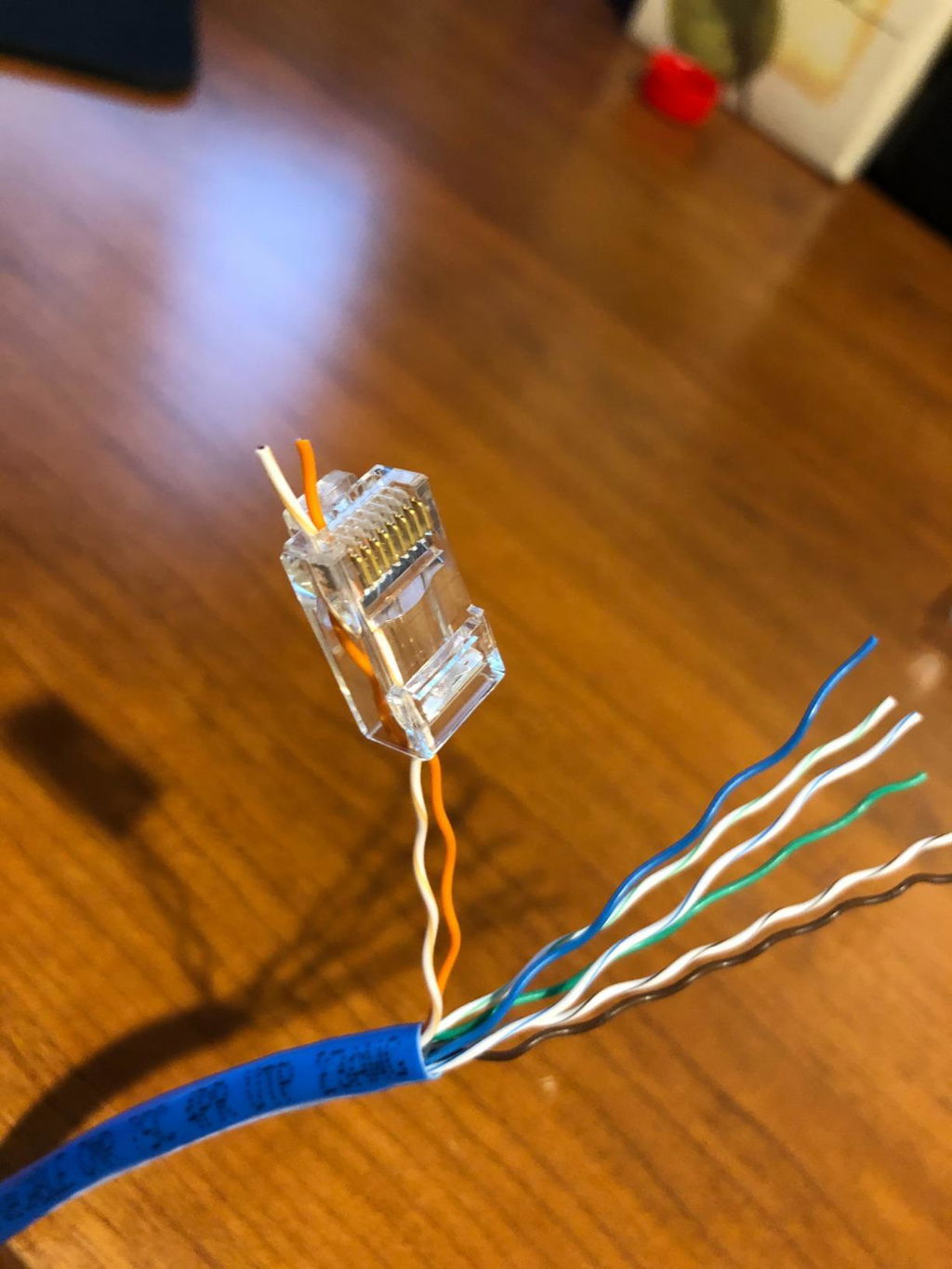

For those who are thinking about doing some custom cables and are new to making RJ45 jacks, these pass through connectors are a great way to learn and hone your skills. As long as you have the correct termination tool, these are noob friendly.. all you need to do is cut off way more cable than you need and slide them in one by one. Some of my solid copper 23awg cat6 cables don't like untwisting and end up binding a bit but these jacks make it a pinch by allowing you to do it one at a time. You may need to twist the jack a tiny bit to wiggle the wire in. I have a much easier time with stranded cable as those untwist easier and you don't have to waste as much.

If the cables don't want to untwist much, you'll have a hard time lining all 8 at the same time. If you do it one by one and then use some pliers to pull the slack, you make your life much easier.

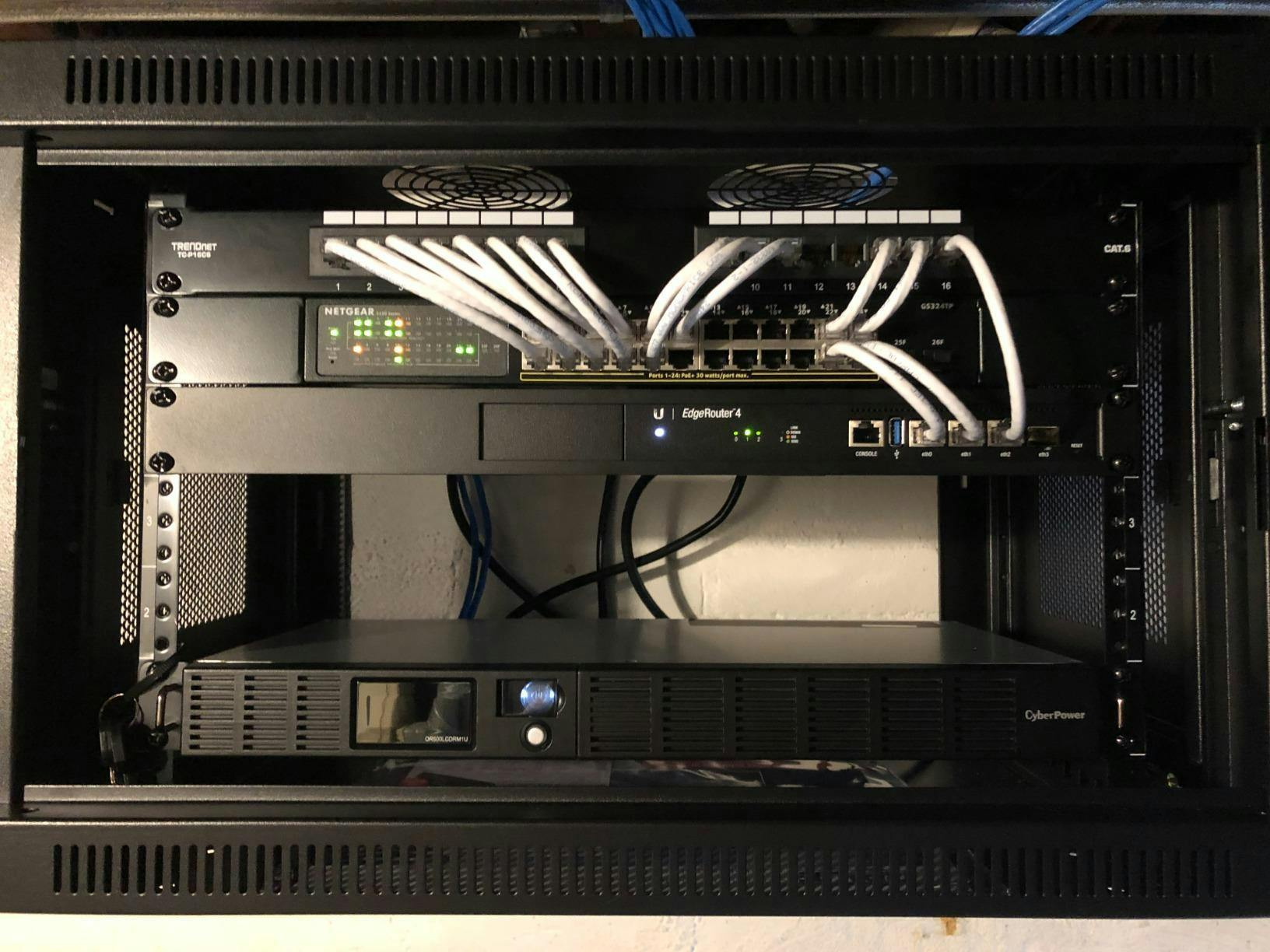

Now you can make some really short custom cables, great for neat cable management if you have a rack.

J
JG

I am a communications engineer. I have taught many junior technicians how to terminate Cat cable. A typical student will waste 10 connectors before getting it right using other cheap connectors. I got these and the tool to go with it and only one wasted because the tech put the connector on Upside down. I have used this on Cat5, Cat 6 and Cat 6A, perfect each time.

R
Roy B.

Cheap and simple to use

R
Rick K.

Used multiple times for various lengths without issue. Crimped as expected and held ...
