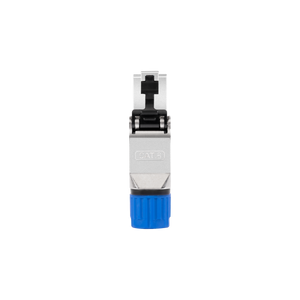

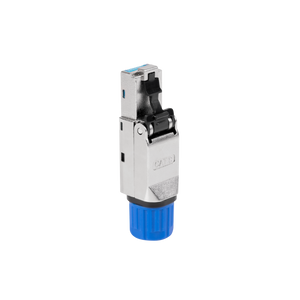

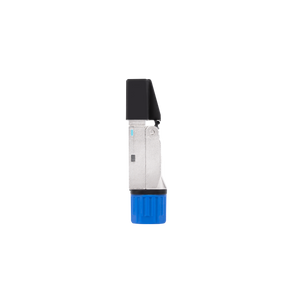

Shielded Cat8 Field Termination Plug VCELINK
| Quantity | Price Per Unit / Pack | Savings |
|---|---|---|
| 10-49 | $10.45 | 5% |
| 50-99 | $10.12 | 8% |
| 100+ | $9.35 | 15% |
Free Shipping for Orders Over $10.99 in the US.
Fast shipping. Know More at Delivery & Return.
For more information, please send us an inquiry or email us.
Features:
- Tool-free Field Termination
- Up to 2000 MHz Bandwidth
- Zinc Alloy Metal Shielding
- Gold-plated Contacts
- 12-month Warranty & Lifetime Product Support
Pairs Perfectly With
Description
Engineered for quick field termination and high-performance data transmission, this Shielded Cat8 Field Termination Plug is easy to install without any professional crimping tools. It is backward compatible with shielded or unshielded Cat7, Cat6a, and Cat6 Ethernet cables. The shielded housing makes this Cat8 connector resistant to EMI and RFI, ensuring a reliable connection. Designed to support speeds of up to 40 Gbps, this field termination plug delivers excellent performance for data centers, server rooms, enterprise networks, and other high-speed applications.
VCELINK provides bulk and customized services. You can contact us directly or email us for more ordering information.
Learn more in What is Field Termination Plug?
Specifications
| Product Type | Cat8 Toolless Plug |
| Shielding Type | Shielded |
| Data Rate Support | 40 Gbps |
| Bandwidth | 2000 MHz |
| Shielded Material | Zinc Alloy |
| Plastic Material | PP |
| Contact Material | Nickel Plated Phosphor Bronze; Gold Plated |
| Insertion Force | 30N MAX. |
| Retention Strength | 7.7 kg Between Jack and Plug |
| Operation Temperature | -10 ℃ to 60 ℃ |
| Usage | 22 AWG to 24 AWG Stranded or Solid Wires |
| Cable OD | 7 mm-8.5 mm |
| Insertion Frequency | ≥ 1000 Times |
| Terminal Life | ≥ 250 Times |
Features
Cat8 Network Performance
-Offers excellent network performance of up to 40 Gbps and bandwidth of up to 2000 MHz;
-Supports PoE and backward compatible with Cat7, Cat6a, and Cat6 cables;
-Perfect for bandwidth-intensive applications such as cloud computing and smart buildings.
Easy Installation
-No need for professional RJ45 crimpers;

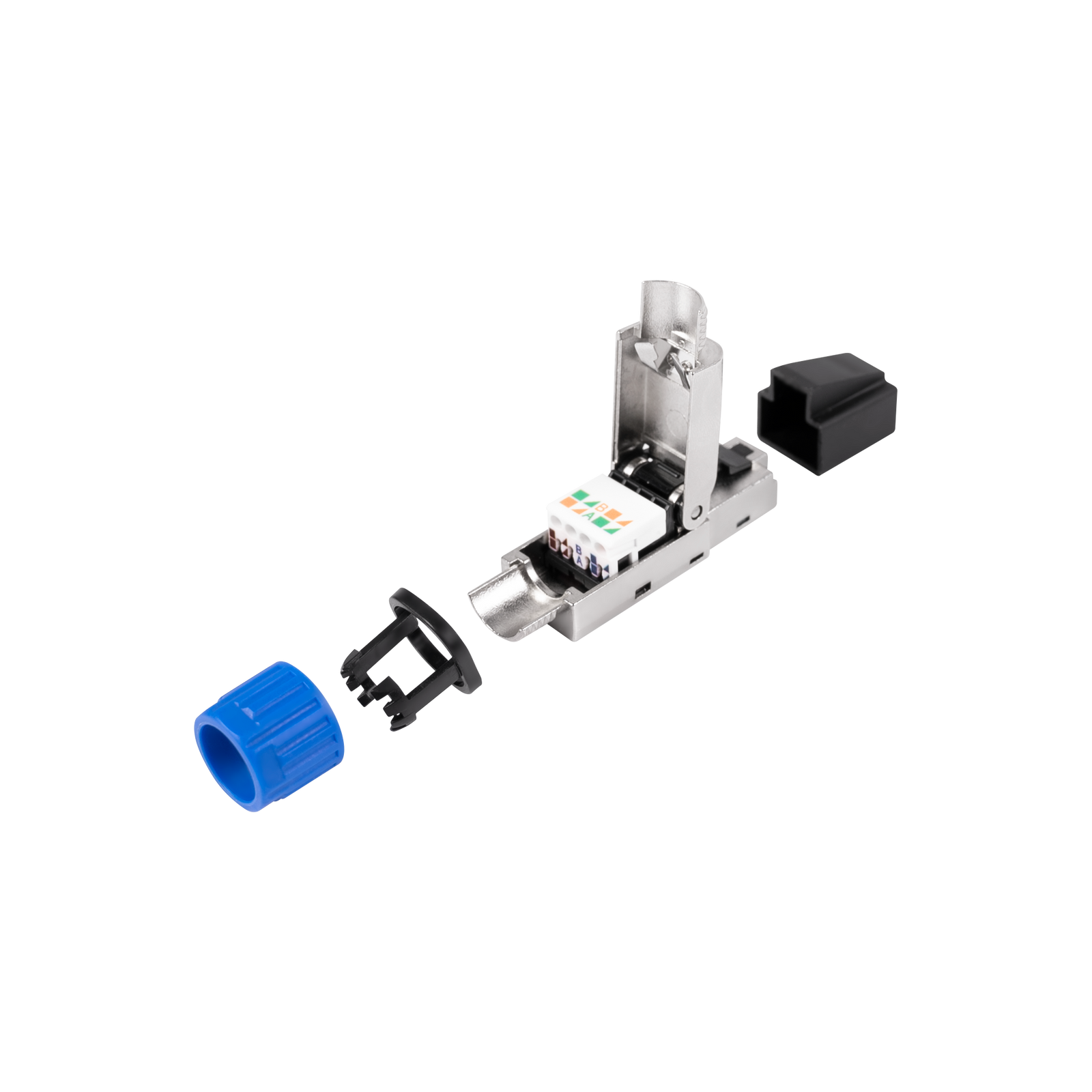

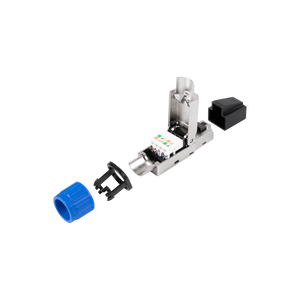

-Comes with a conductor holder for quick and reliable alignment and termination;
-Printed with T568A and T568B wiring diagrams.
Stable Transmission
-The metal shielding offers resistance to external interference;
-The gold-plated contacts ensure resistance to corrosion and oxidation.
Durable and Reusable Design
-Reusable design allows for quick disassembly and reconnection;
-Equipped with a dust cover to prolong the service life.
