British RJ45 Socket Wall Plate VCELINK
| Quantity | Price Per Unit / Pack | Savings |
|---|---|---|
| 10-49 | $7.60 | 5% |
| 50-99 | $7.20 | 10% |
| 100+ | $6.40 | 20% |
Free Shipping for Orders Over $10.99 in the US.
Fast shipping. Know More at Delivery & Return.
For more information, please send us an inquiry or email us.
Features:
- IDC Material: PC
- Terminal Material: Phosphor Bronze, Tin gold
- Surface Plastic Plate Material: PC, UL 94-V0

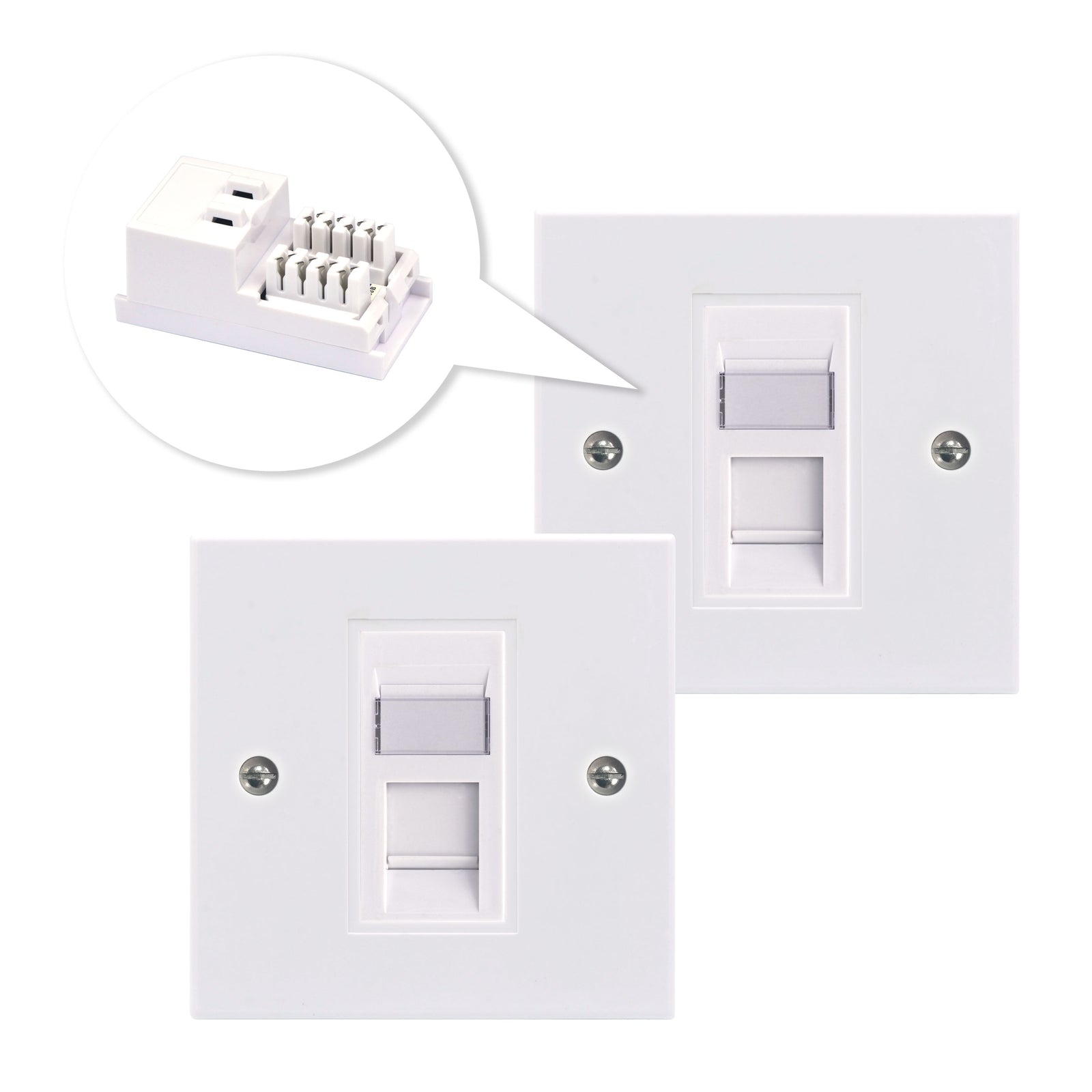

- Packaging: 1 Set Contain 1 x one port wall plate + 1 x RJ45 modular
- After-sales Service: 12-month Warranty
Pairs Perfectly With
Description

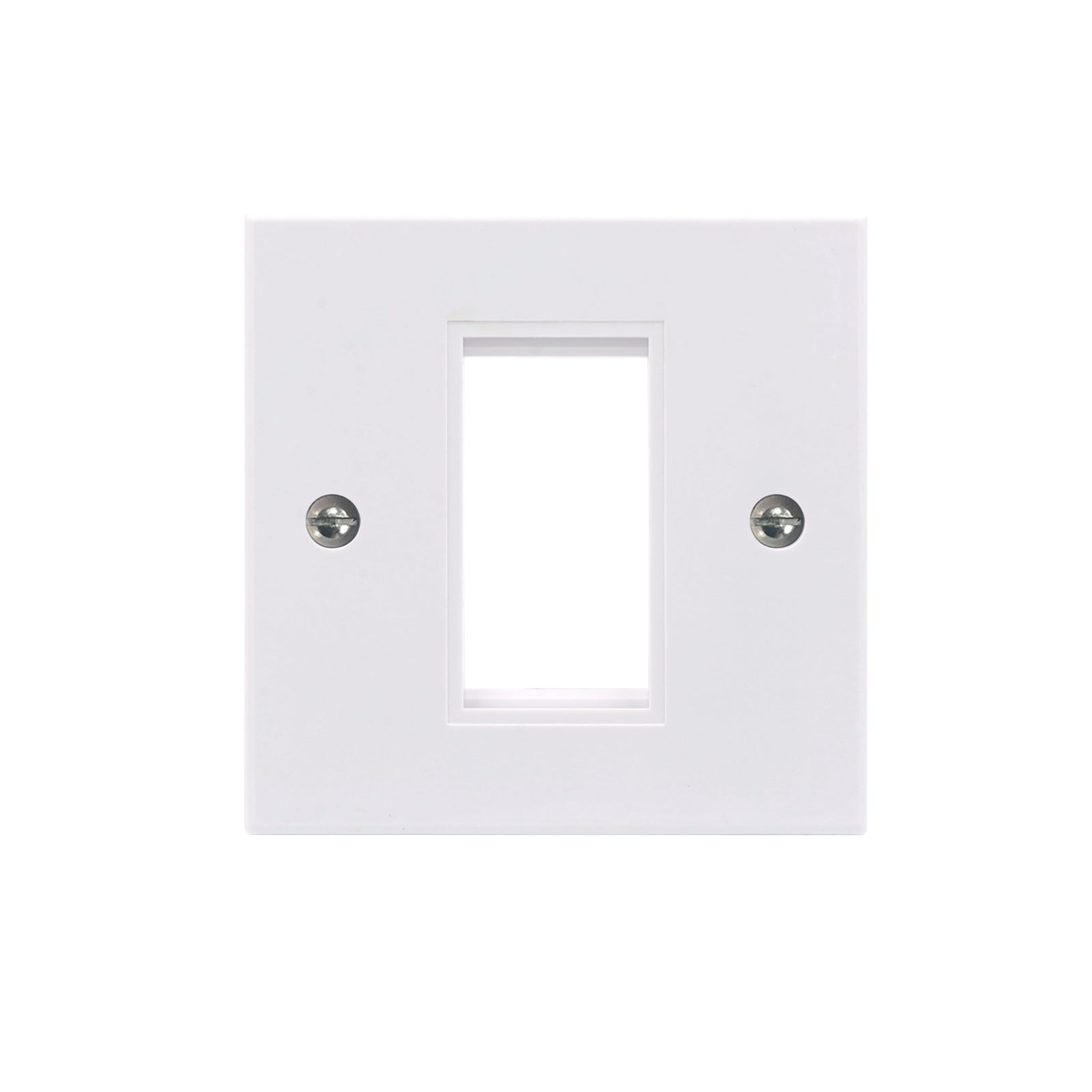

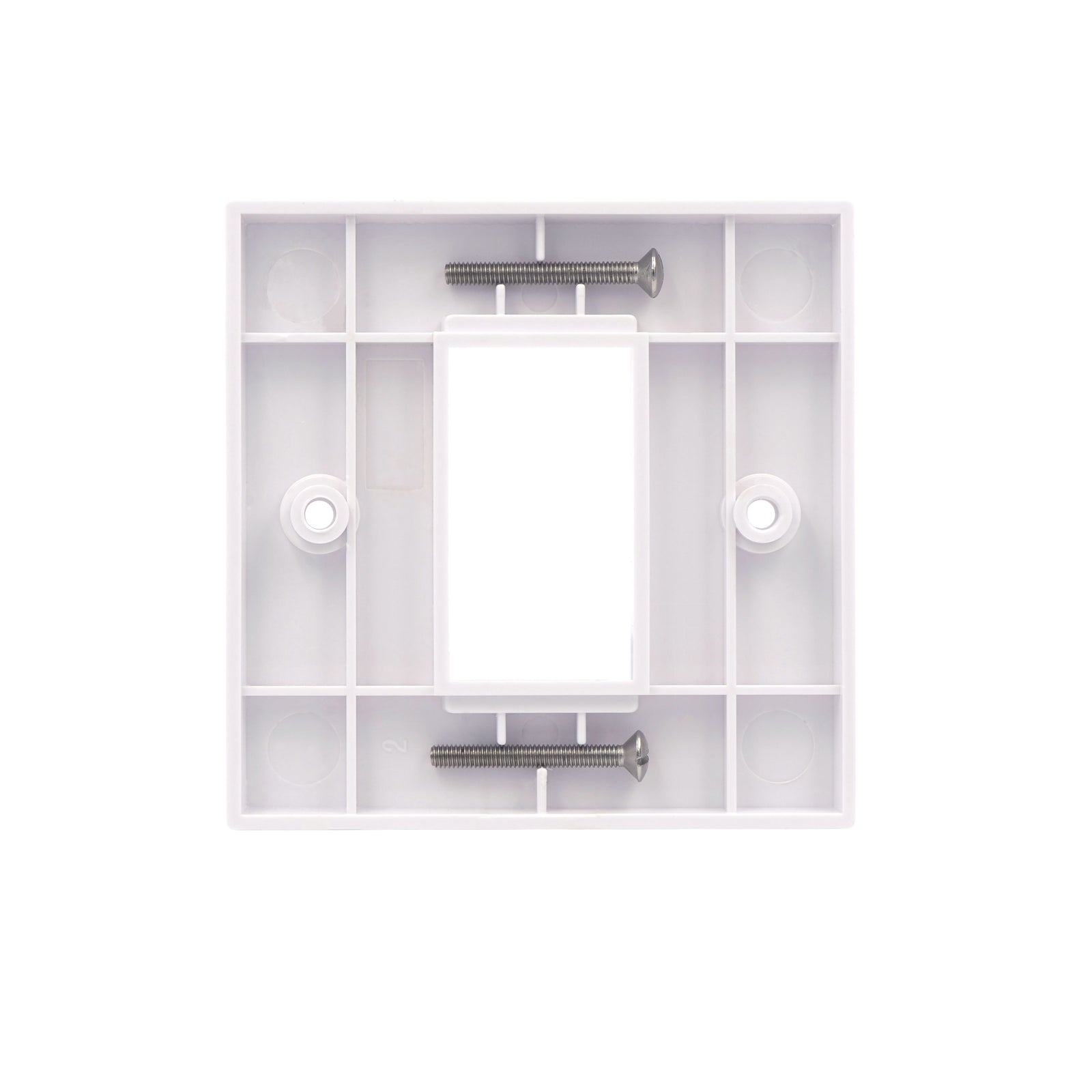

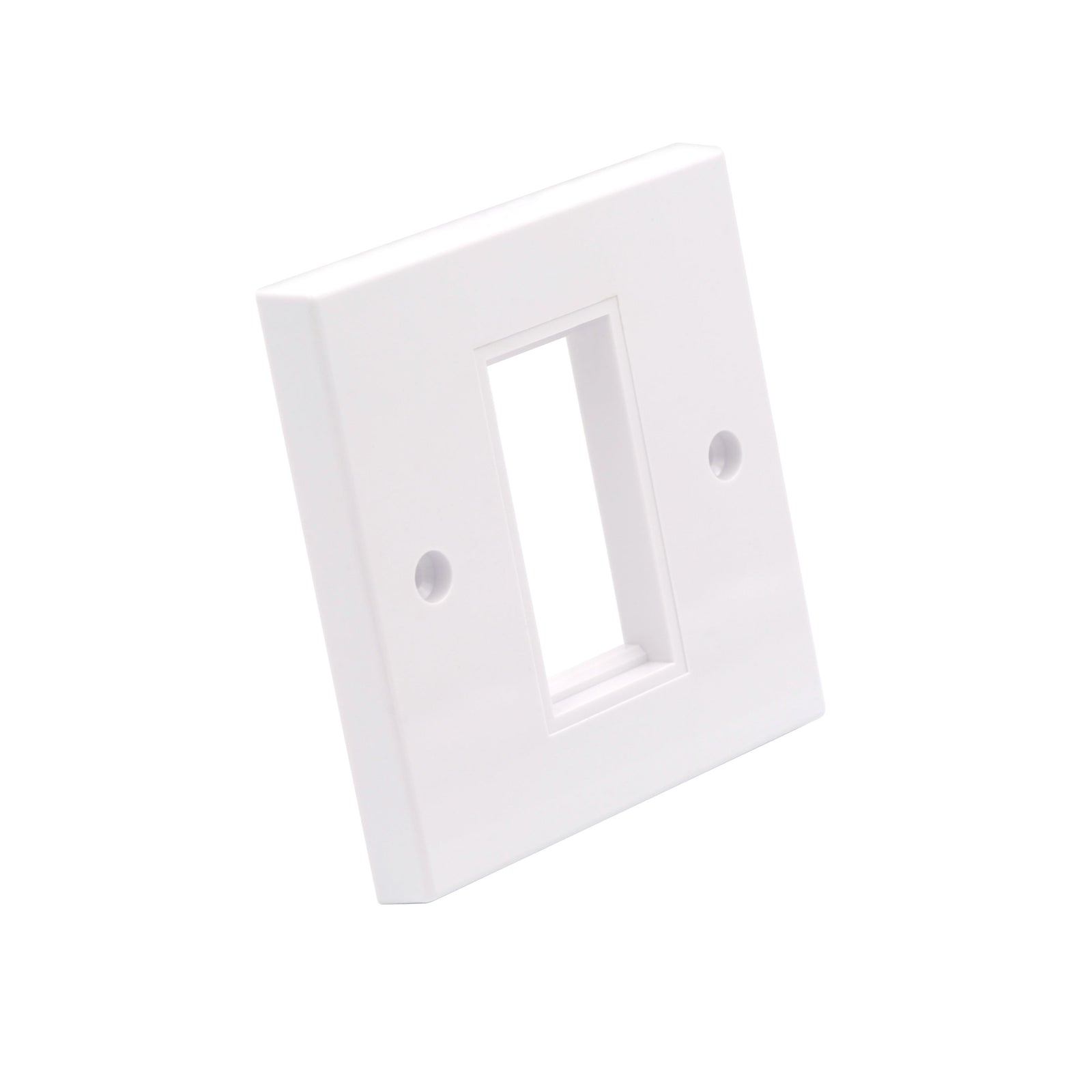

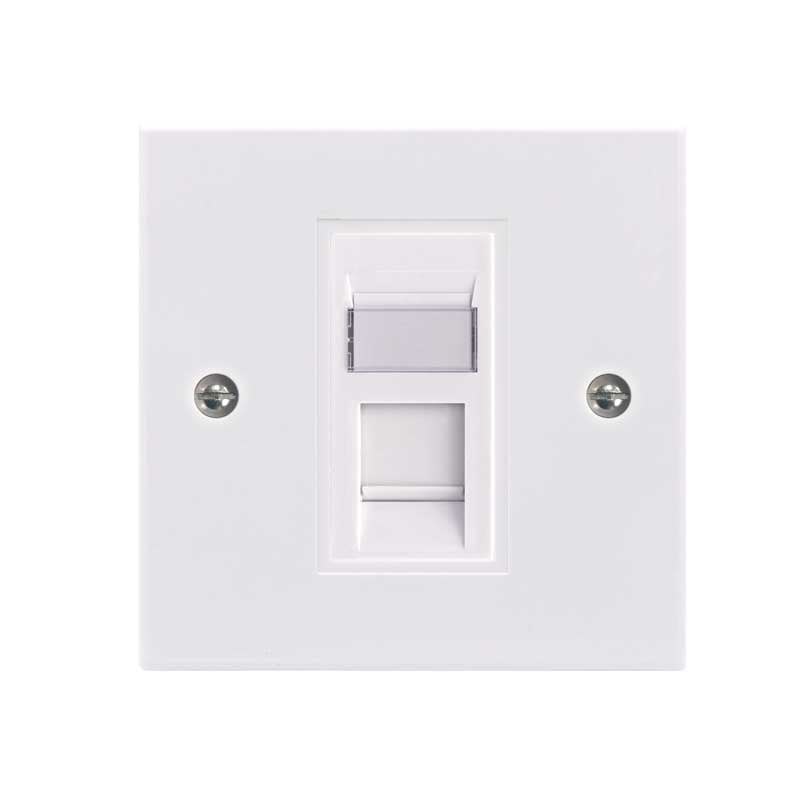

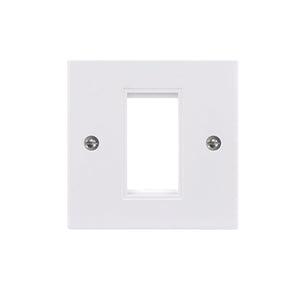

VCELINK British-style Cat6 Wall Plate is tested to the EIA/TIA standard, compatible with various RJ45 ports. It can effectively hide your wires for a tidy and clean look. It provides stable network transmission and easy operation.
If you have requirements for bulk purchasing or customized services, contact us or email us.
Learn More in: Using Ethernet Wall Plate to Optimize Your Network Setup
Specifications
| Product Type | Cat6 Ethernet Wall Plate |
| Color | White |

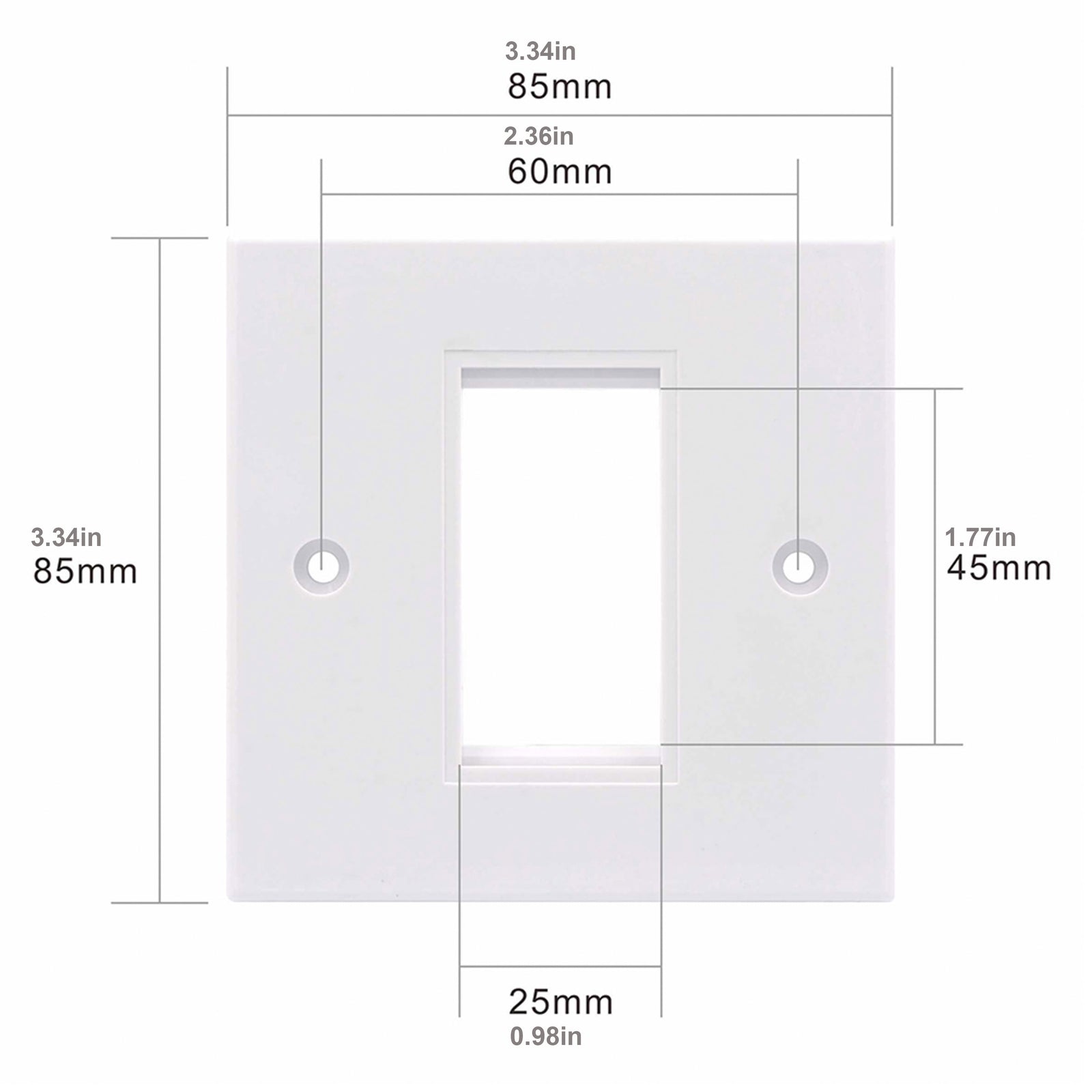

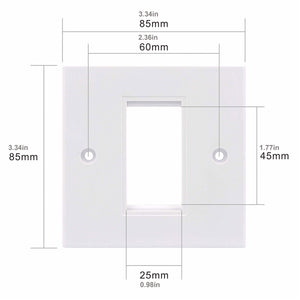

| Dimensions | 3.34''W*3.34''H |
| Style | 1-Port; Unshielded; UK-style |
| Data Rate Support | 1000 Mbps |
| Shell Material | ABS |
| Contact Blade Material | Phosphor Bronze Nickel Plated |
| Contact Area Material | Gold Plated |
| IDC Housing Material | PC |
| IDC Terminal Material | Phosphor Bronze Tin Plated |
| Insertion Force | 900 GMS for 8 Contacts |
| Retension Strength | 7.7 KG Between Jack and Plug |
| Operation Temperature | -20°C~68°C |
| Jack Durability | 750 Cycles Plug-Jack Mating and Unmating Test. Insertion Cycles at 20 Cycles/Minute MAX. |
| IDC Durability | 200 Punching Times MAX. |
| Usage | Stranded Wire or Solid Wire 22 AWG to 26 AWG |
| Cat6 Performance | In Complince with the ANSI/TIA/EIA 568 C Standard |
Features
High-speed Transmission
Supports Cat6 speed of up to 1 Gbps.
Easy Operation

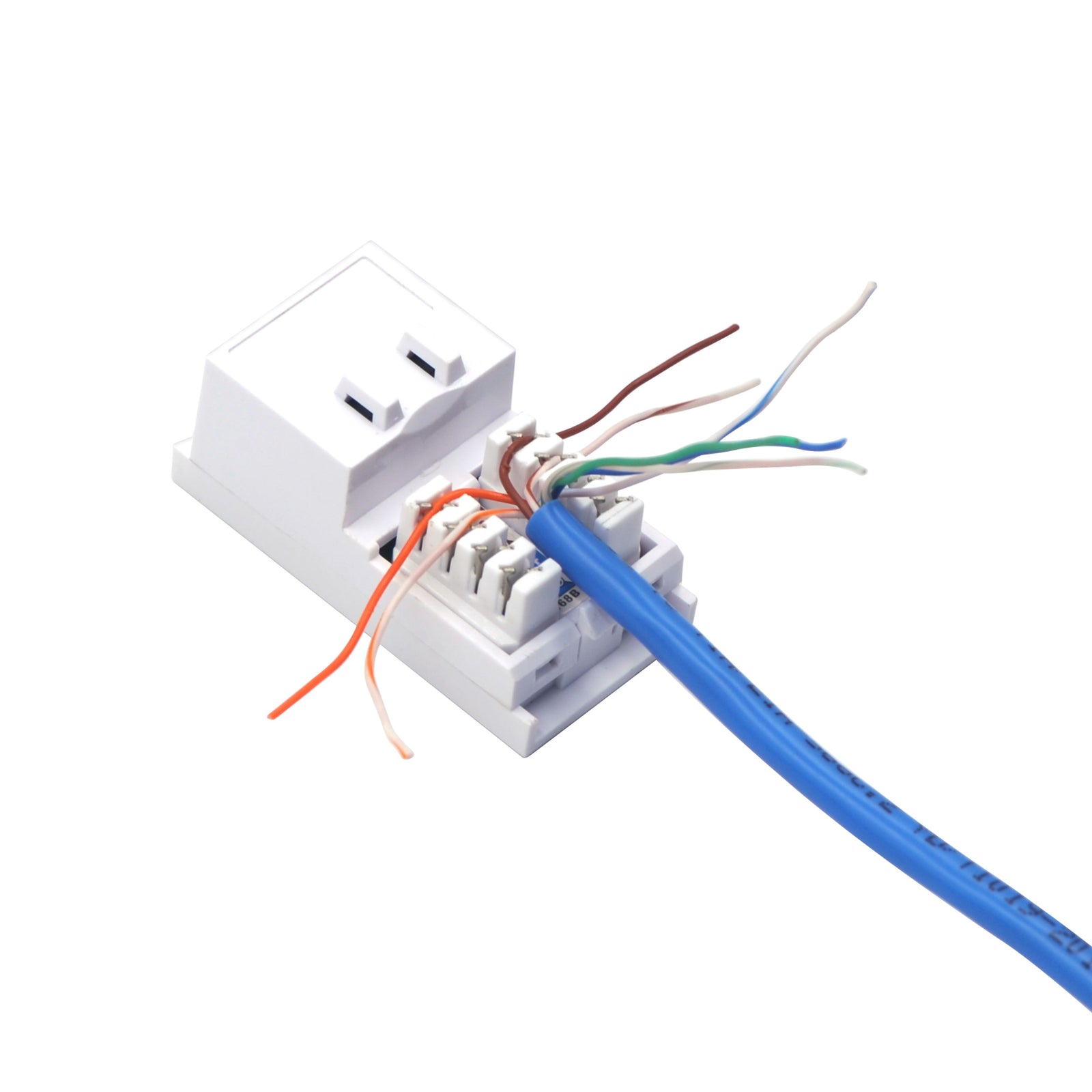

The color-coded marking is designed for easy termination. It is easy to install, even for novices.
Thoughtful Design
-The wall plate has a label that can record the number of interfaces;
-The dust cover helps protect cables and connectors from external factors.
Compatibility

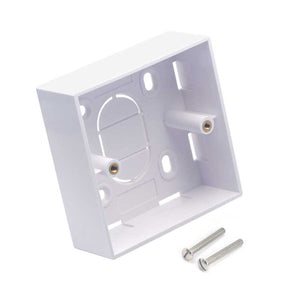

It is compatible with Cat6, Cat5e, and Cat5 Ethernet cables and surface back box, ensuring seamless integration into your network setup.
