RJ45 Cat8 Plug VCELINK
| Quantity | Price Per Unit / Pack | Savings |
|---|---|---|
| 10-49 | $17.10 | 5% |
| 50-99 | $16.56 | 8% |
| 100+ | $15.30 | 15% |
Free Shipping for Orders Over $10.99 in the US.
Fast shipping. Know More at Delivery & Return.
For more information, please send us an inquiry or email us.
Features:
- Plastic Material: NEW PC
- Shielded Material: Zinc Alloy Nickel Plating
- Operation Temperature: -10 °C to 60 °C
- Package: 2/6/12 x Toolless RJ45 Connector
- After-sales Service: 12-month Warranty
Pairs Perfectly With
Description

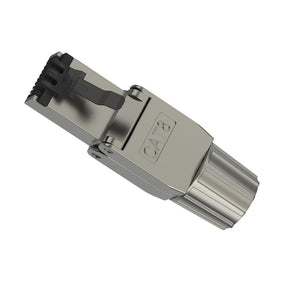

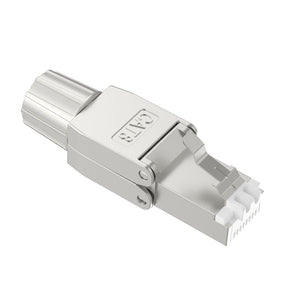

Our Cat8 Plug is an ideal solution to field termination, designed for simplified installation. This plug can deliver unparalleled performance and reliability for high-speed network applications. VCELINK supports buying in bulk and provides customized services, please contact us directly or email us for more information and an exclusive discount!
Learn More in What is Field Termination Plug?
Specifications
| Product Type | Cat8 Toolless Plug |
| Termination Type | 8P8C Connector |
| Style | Toolless; Shielded |
| Wiring Scheme | T568A/T568B |
| Data Rate Support | 40 Gbps |
| Plastic Material | New PC |
| Shielded Material | Zinc Alloy Nickel Plating |
| Terminal Pins | Phosphor Bronze, Zin Plating |
| RJ45 Contact Life | ≥750 Times |
| IDC Terminal Life | ≥250 Times |
| Contact Resistance | 20m OHM |
| Insulation Resistance | ≤2,000m OHM @100 V DC |
| Withstand Voltage | DC 1,000V AC 700V RMS 60HZ, 1MIN. |
| Operating Ambient Temperature | -10°C ~ 60°C |
| Storage Ambient Temperature | -40°C ~ 70°C |
| Cat8 Permanent Link | Conform to ANSI/TIN/EIA 568B. 2-10 |

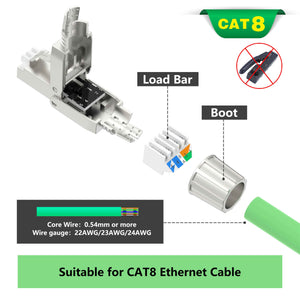

| Usage | Stranded Wire or Solid Wire 22 AWG to 26 AWG |
Features
Cat8 Performance
-The Cat8 plug offers maximum speeds of up to 40 Gbps and a bandwidth of 2000 MHz;
-Supports PoE, PoE Plus, and UPoE applications;

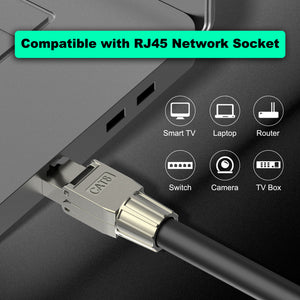

-This high-performance RJ45 plug is perfect for high-speed internet, streaming, gaming, and other bandwidth-intensive applications.
Compact Design

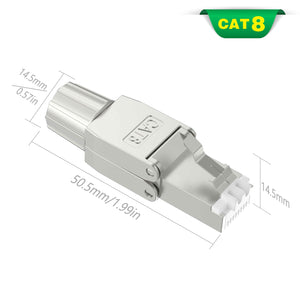

Designed with a compact size, this Cat8 toolless connector fits into tight spaces. It offers flexibility even in the most constrained environments.

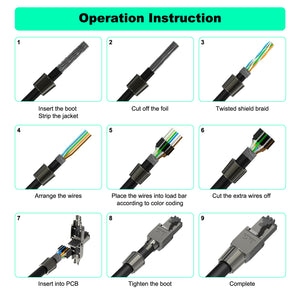

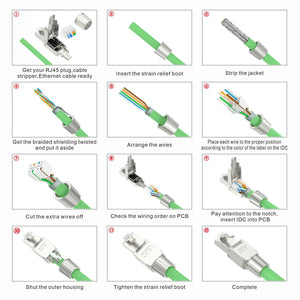

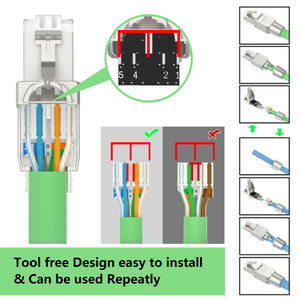

Easy Installation
-With its easy-to-use design, the Cat8 connector requires no special RJ45 crimping tools;

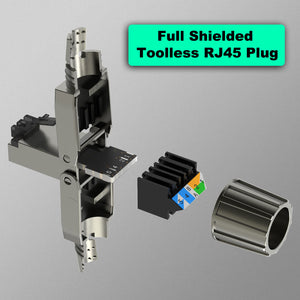

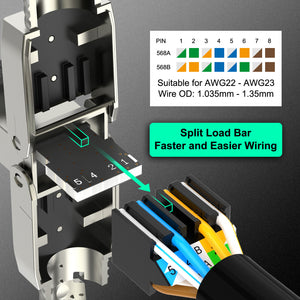

-The conductor holder makes wire alignment and installation quicker.

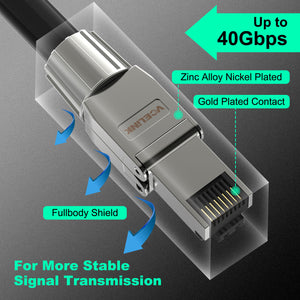

Enhanced Stability

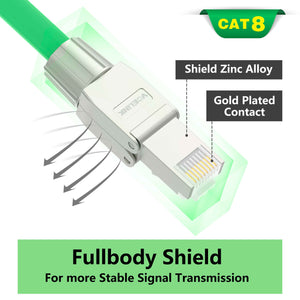

-The zinc alloy shielded housing boasts durability and interference resistance, ensuring a reliable network connection;
-Gold-plated contacts improve the quality of signal transmission;

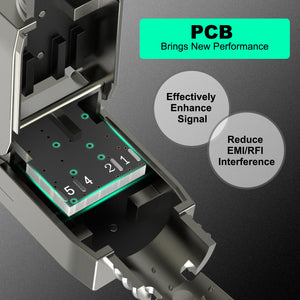

-The PCB board improves conductivity and reduces signal loss for higher speed and more stable network transmission.
Video
Q&A
-
Hello, What is the maximum diameter that could be accomodated by this connector? Thank you.
Thanks for your inquiry! The maximum diameter of the cable that is accommodated by this connector is 8.5mm.
