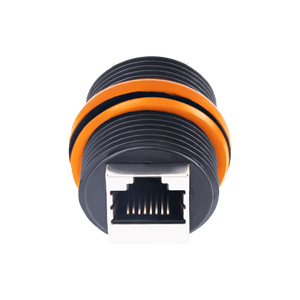

IP68 Cat6a Waterproof Ethernet Coupler VCELINK
| Quantity | Price Per Unit / Pack | Savings |
|---|---|---|
| 10-49 | $6.65 | 5% |
| 50-99 | $6.30 | 10% |
| 100+ | $5.60 | 20% |
Free Shipping for Orders Over $10.99 in the US.
Fast shipping. Know More at Delivery & Return.
For more information, please send us an inquiry or email us.
Features:
- Shielded Material: BRASS
- IP68 Standard: Dustproof and Waterproof
- Plastic Material: ABS with a PA66 Coating
- Operation Temperature: -20°C to 68°C
- Paired With Shielded or Unshielded Ethernet Cables
- Worldwide Shipping & Fast Delivery
- After-sales Service: 12-month warranty
Pairs Perfectly With
Description

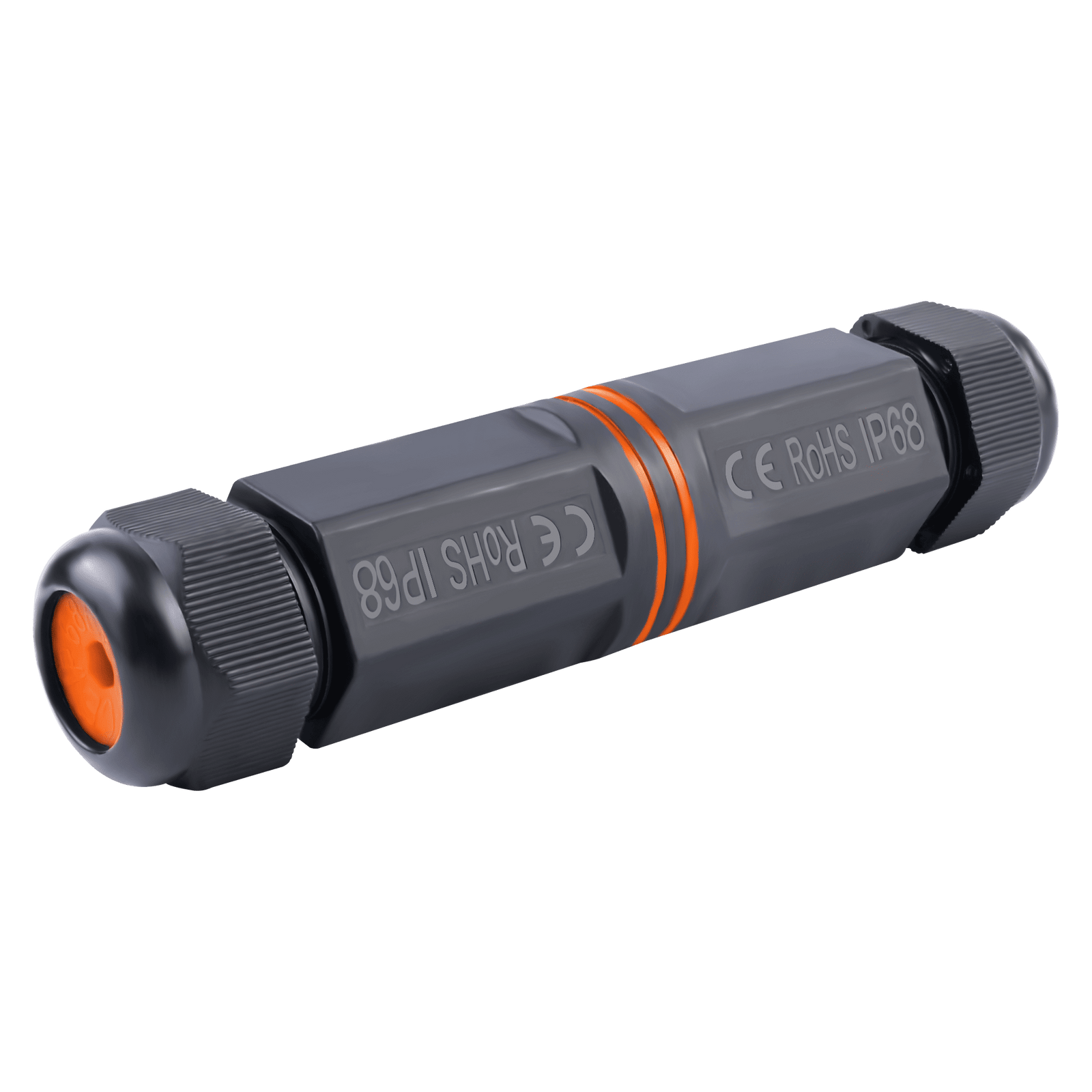

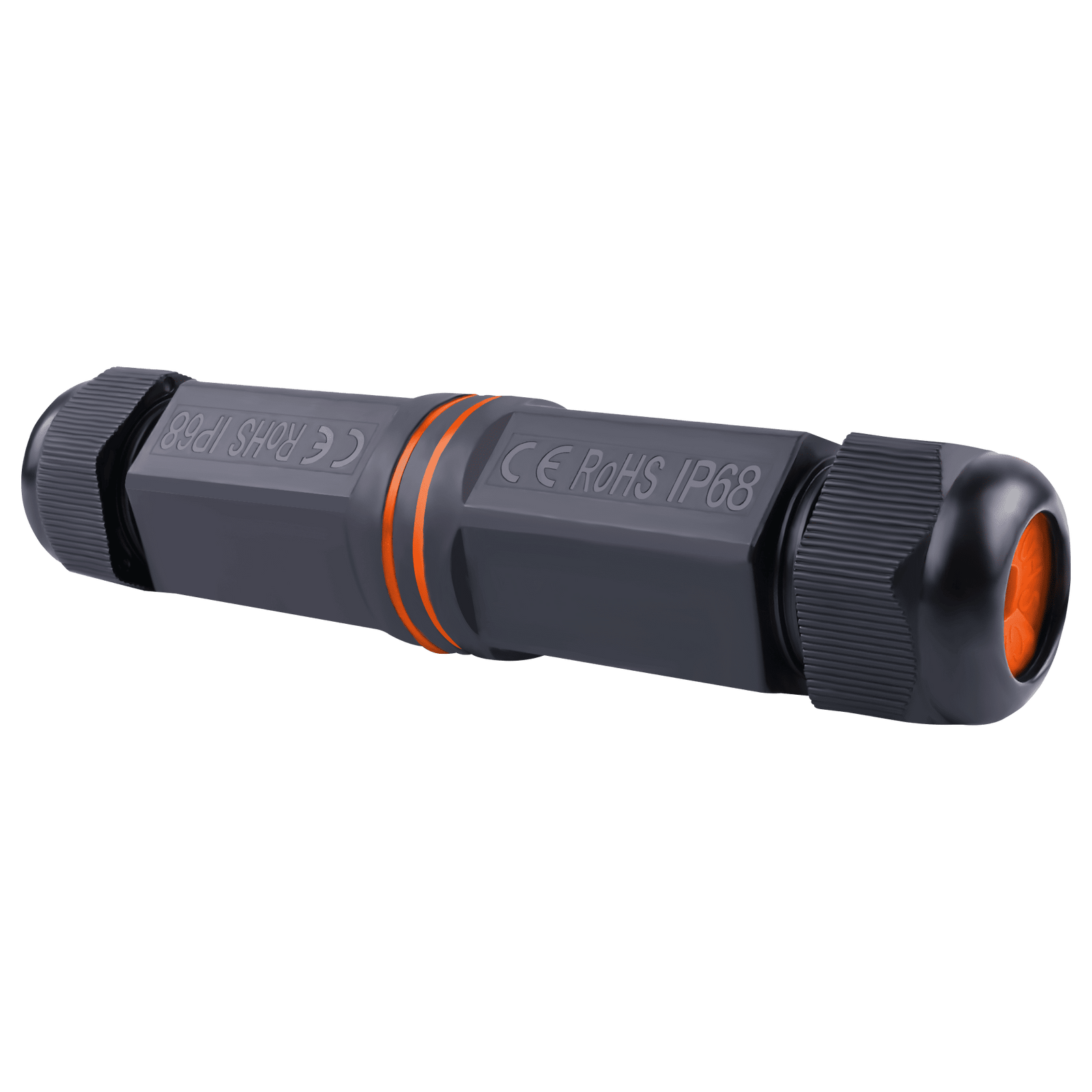

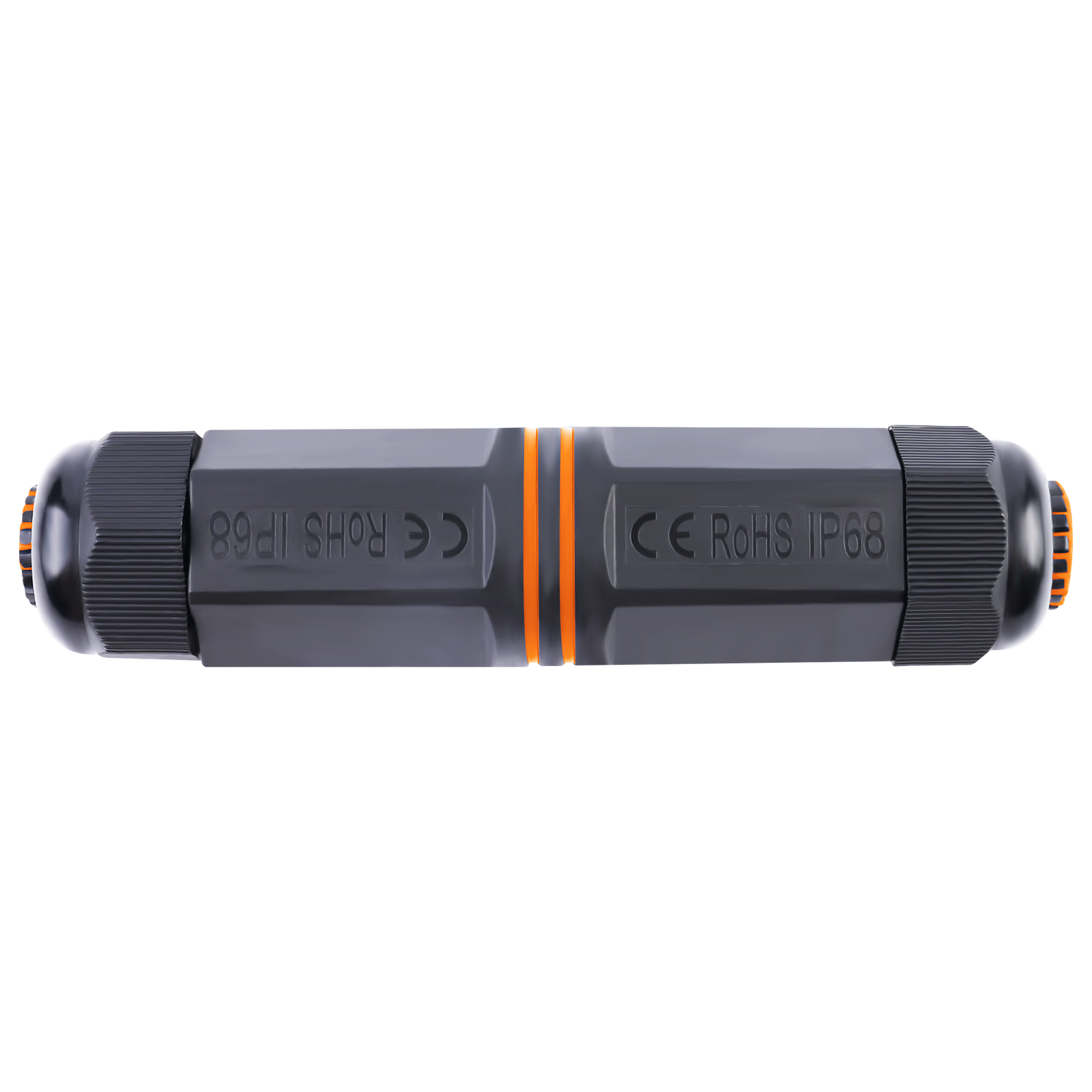

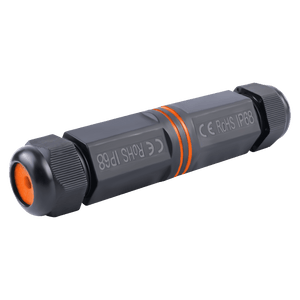

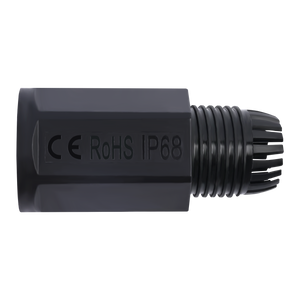

VCELINK IP68 Cat6a Waterproof Ethernet Coupler is an effective solution for extending or connecting network patch cables outdoors. This waterproof RJ45 coupler has undergone IP68 test, ensuring its reliability in moisture, dust, and other harsh conditions.
VCELINK provides bulk waterproof RJ45 couplers and customized services. You can contact us directly or email us for more information.
Learn More in The Ultimate Guide to Waterproof RJ45 Coupler
Specifications
| Product Type | Waterproof RJ45 Coupler |
| Style | Shielded |
| Wiring Diagram | T568A/T568B |
| Data Rate Support | 10 Gbps |
| Shielding Material | BRASS |
| Plastic Material | ABS |
| Contact Blade Material | Phosphor Bronze Nickel Plated |
| Contact Area Material | Gold-Plated |
| Insertion Force | 900 GMS for 8 Contacts |
| Retention Strength | 7.7 kg Between Jack and Plug |
| Operation Temperature | -20°C~68°C |
| Plug and Unplug Test | 750 Cycles Plug-Jack Mating and Unmating Test, 20 Cycles/Minute Max. |
| Contact Resistance Test | Contact Resistance Test Per 100 Cycles |
| Cat6a Performance | In Compliance with the ANSI/TIA/EIA 568 C Standard |
Features

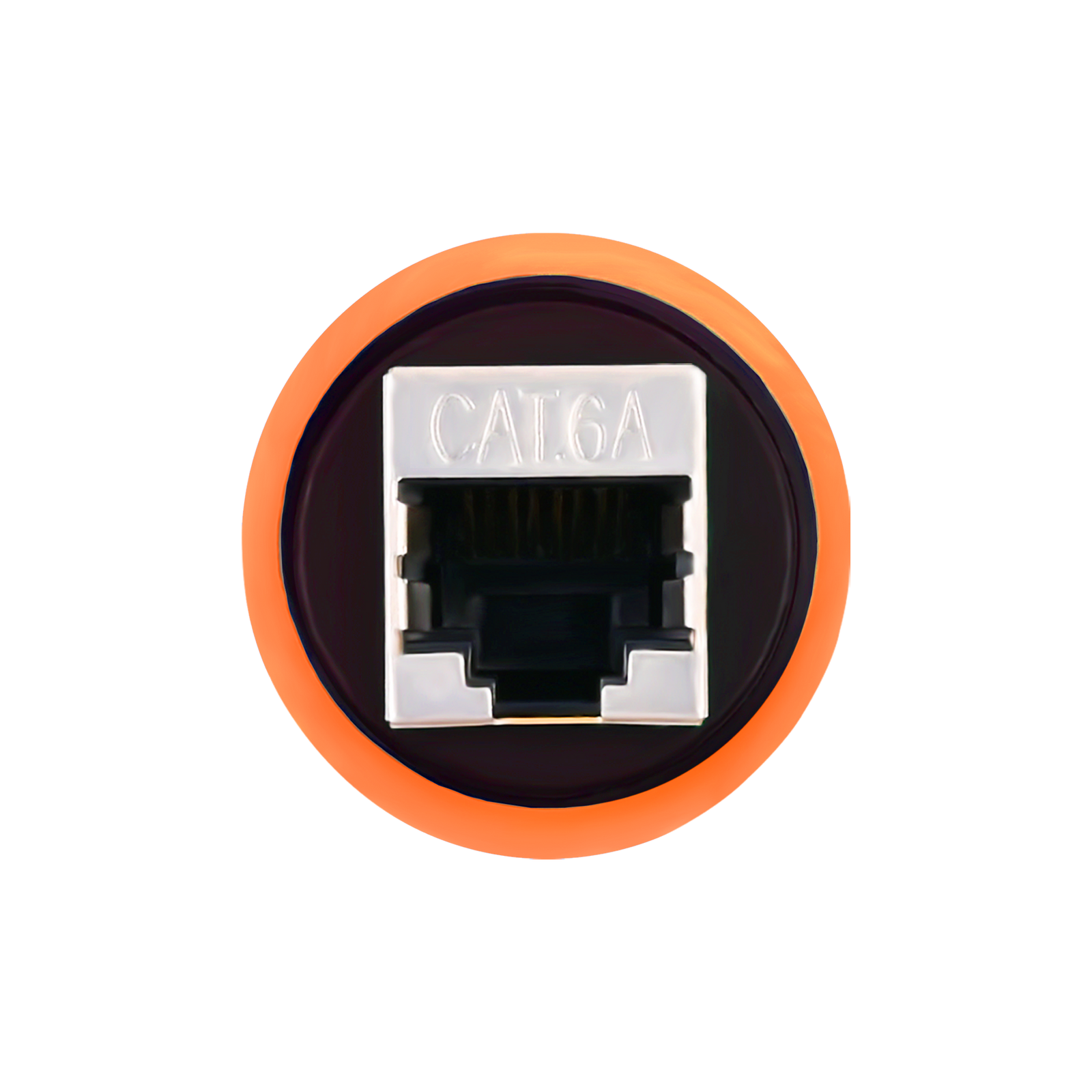

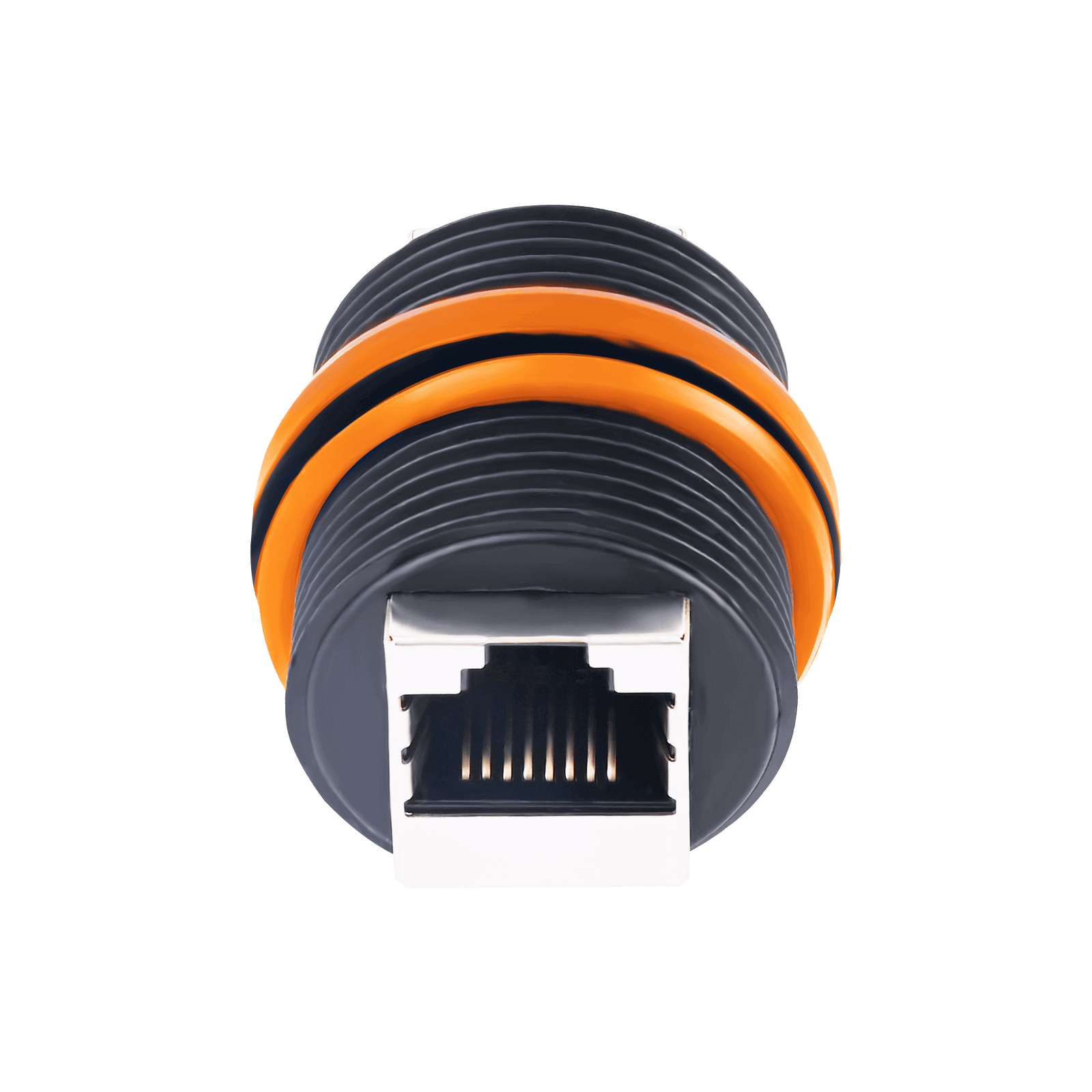

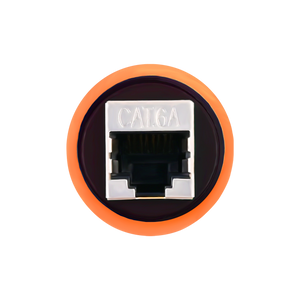

Cat6a Network Performance
-This Cat6a coupler supports transmission rates up to 10 Gbps and bandwidth up to 500 MHz;
-The metal shielding provides a robust resistance to EMI and RFI;
-Gold-plated contacts ensure stable and reliable data transmission.
IP68 Performance
With an IP68 certification, it is built to withstand continuous submersion in water and offer dust resistance.
Compatibility&Durability
-Compatible with Cat6a, Cat6, and Cat5e network cables;
-Compatible with unshielded or shielded twisted paired cables;
-Operates from -20°C to 68°C (-4° to 154.4°F)
Wide Applications
-Suitable for outdoor network installation and industrial or commercial network connectivity;
-Performs well in underground, burial environments, or other harsh conditions.
