German-style 2 Port Network Faceplate VCELINK
| Quantity | Price Per Unit / Pack | Savings |
|---|---|---|
| 10-49 | $11.88 | 5% |
| 50-99 | $11.25 | 10% |
| 100+ | $10.00 | 20% |
Free Shipping for Orders Over $10.99 in the US.
Fast shipping. Know More at Delivery & Return.
For more information, please send us an inquiry or email us.
Features:
- Dual 45-degree Angled keystone Ports
- Durable Plastic Housing Material Made From ABS
- Metal Bracket Material: Zinc Alloy
- With Dust Protection Covers
- Label Space for Port Identification and Management
- Worldwide Shipping & Fast Delivery
- 12-month Warranty & Lifetime Product Support
Pairs Perfectly With
Description

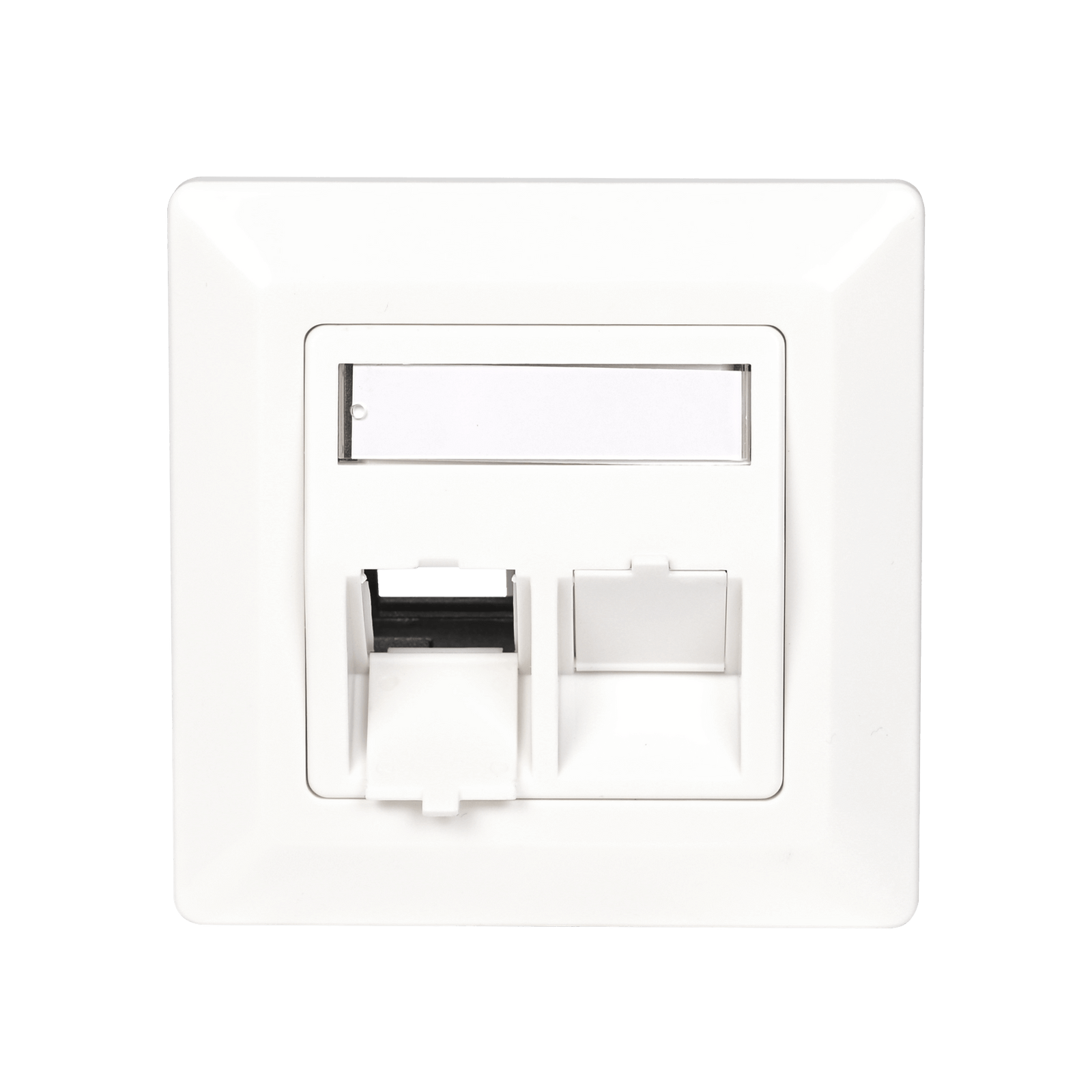

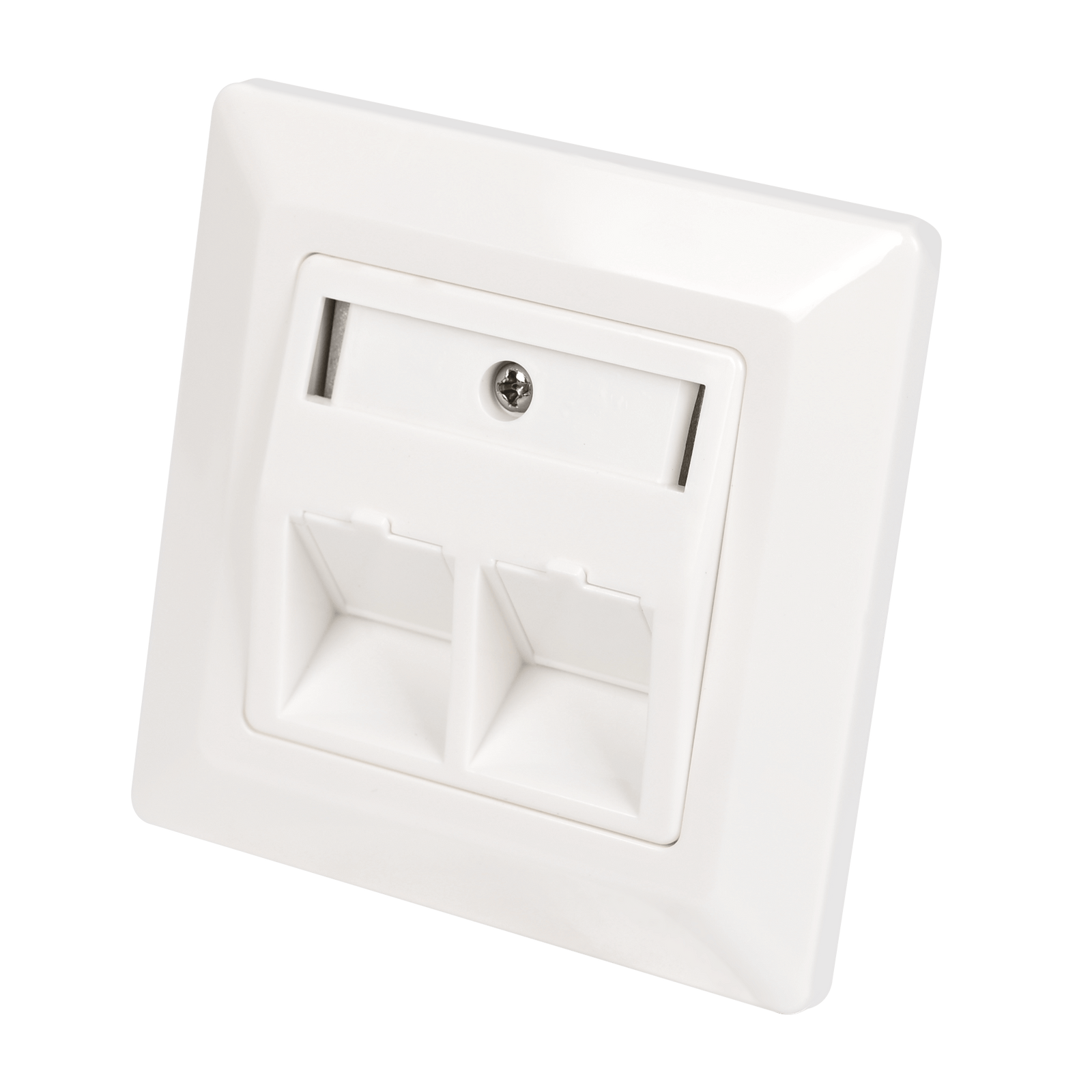

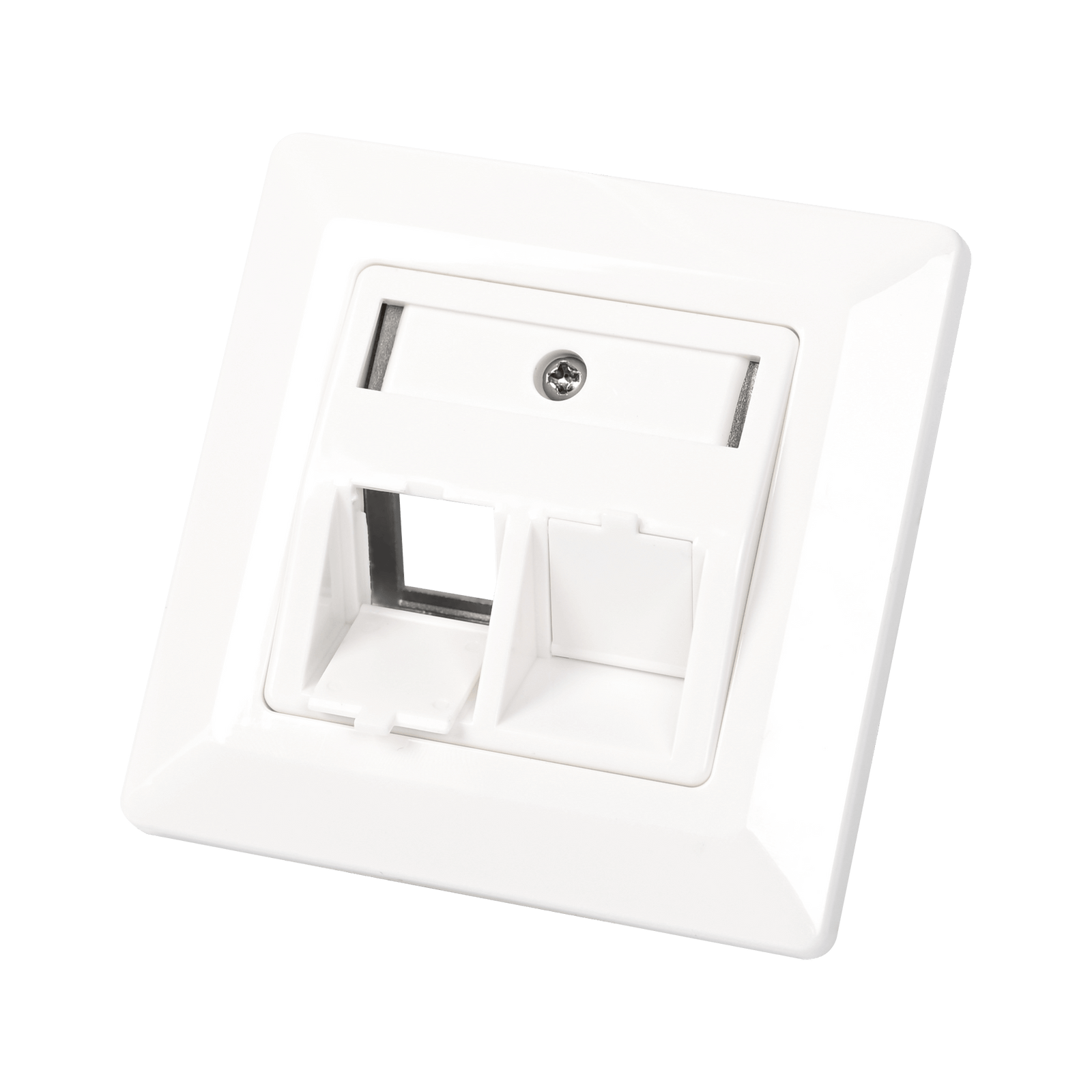

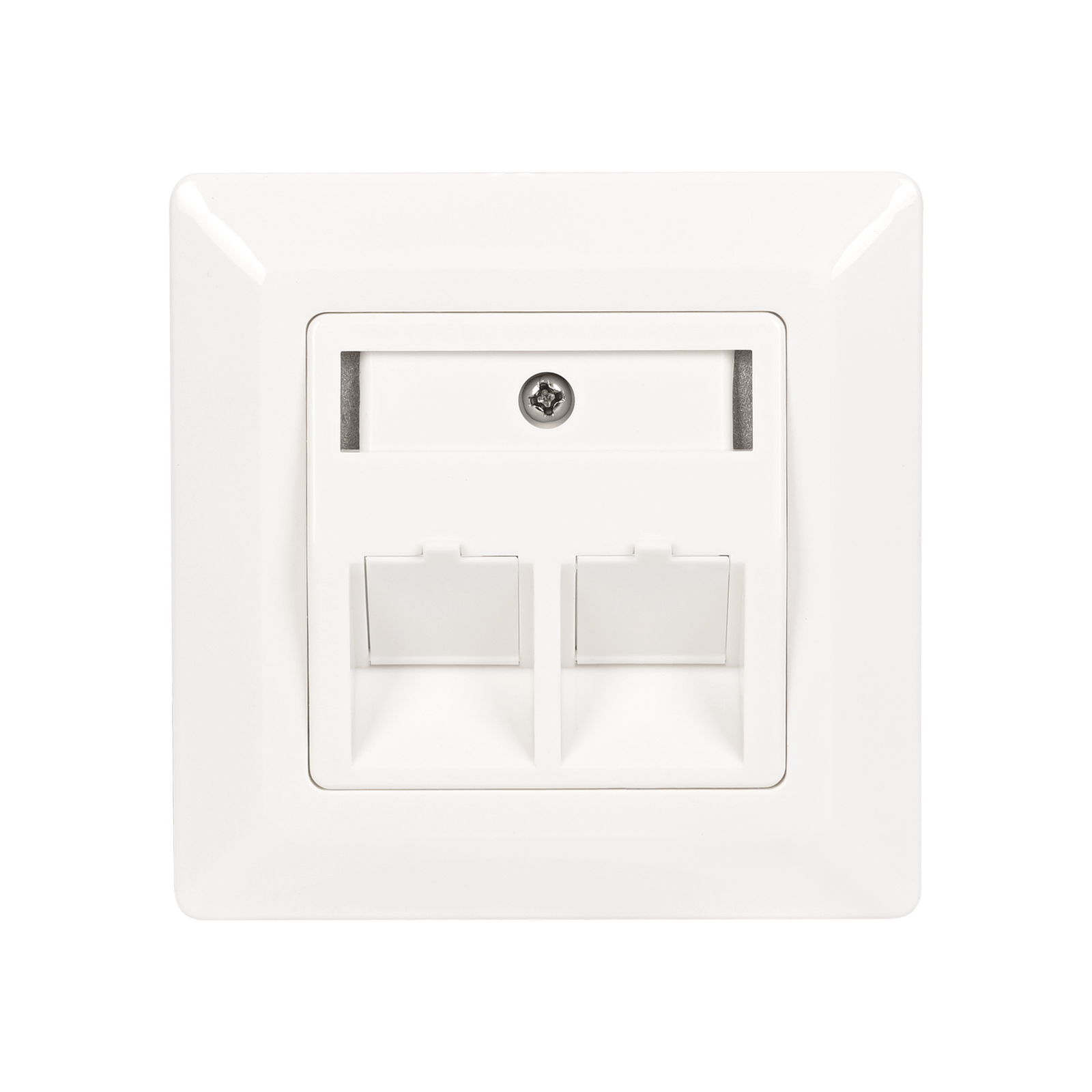

VCELINK German-style 2 Port Network Faceplate is a wall-mounted plate designed to optimize installation and network cabling. It accommodates two keystone jacks or modules for data applications. The network faceplate has a label stick for cable management and a dust cover to ensure reliable and clean connections. It is ideal for home or office setups requiring organized and accessible network connections.
If you have requirements for bulk purchasing or customized services, contact us or email us.
Specifications
| Product Type | Germany-Style Network Wall Plate |
| Style | White; 2-Port |

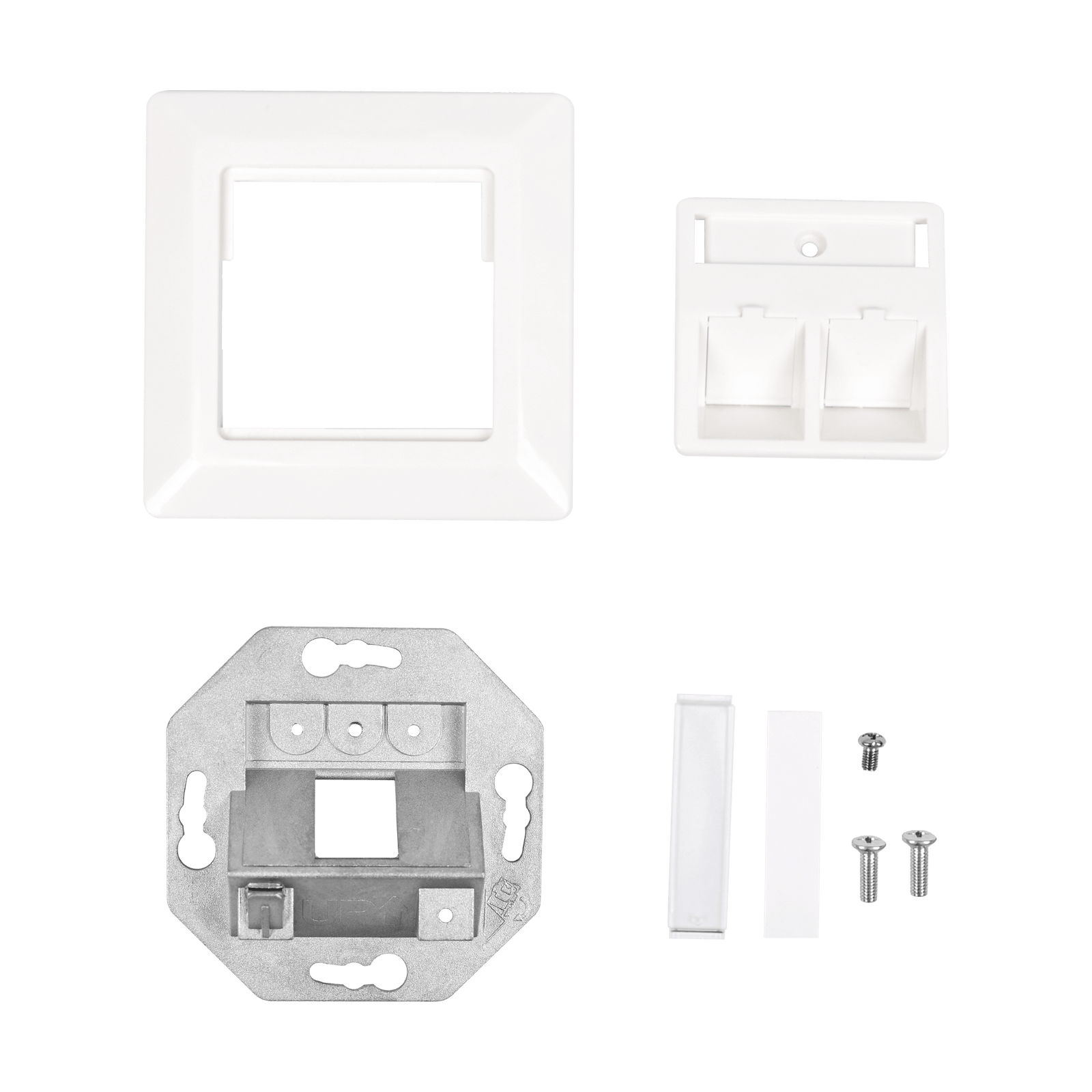

| Components | Plastic Wall Plate, Metal Bracket |
| Plastic Wall Plate Material | ABS |

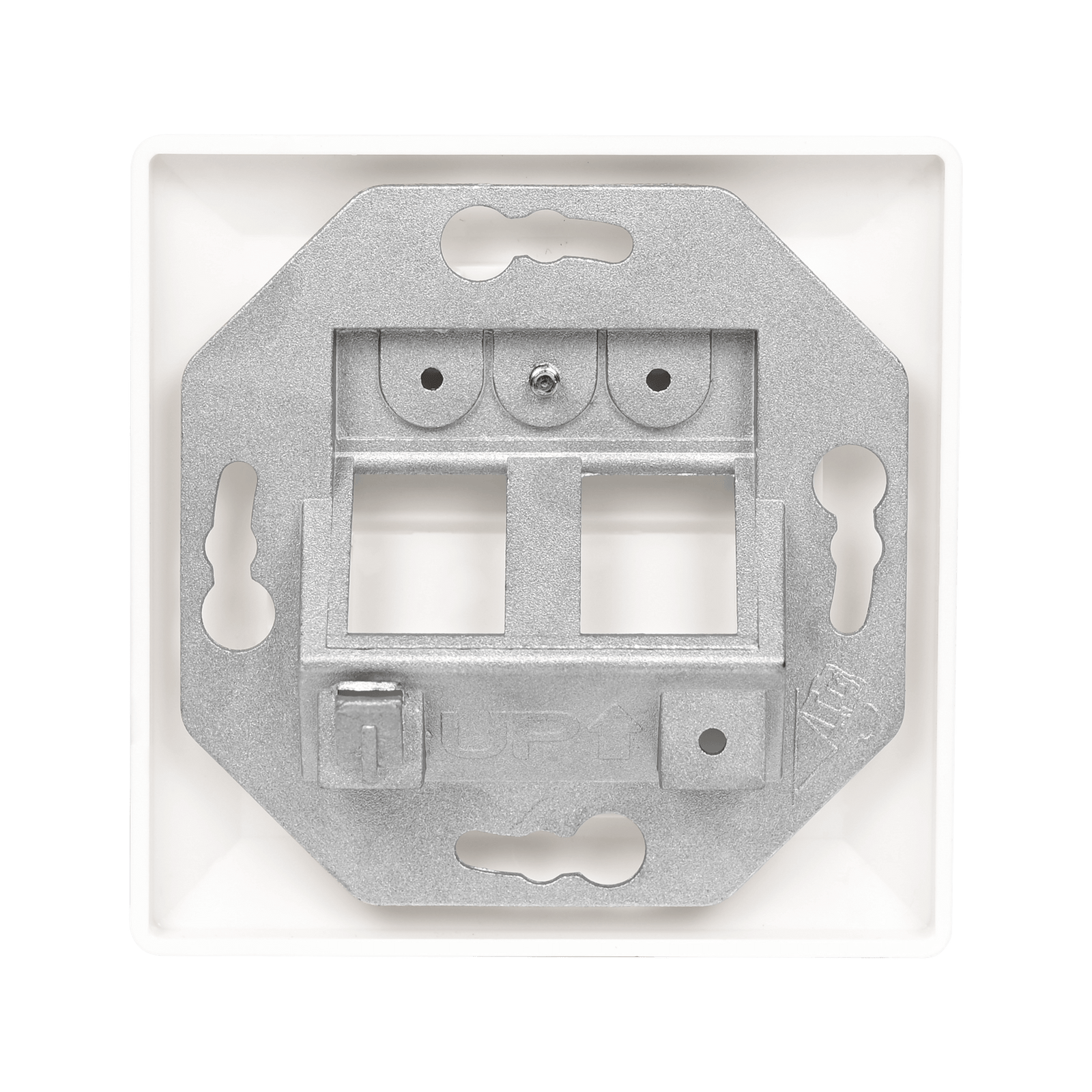

| Metal Bracket Material | Zinc Alloy |
| Plastic Wall Plate Size | 3.15 in * 3.15 in * 0.35 in (79.90 mm * 79.90 mm * 8.80 mm) ) |
| Metal Bracket Size | 2.76 in * 2.76 in * 0.70 in (70.00 mm * 70.00 mm * 17.90 mm) |
| Termination Type | Keystone Module |
| Operating Temperature | -13℉～158℉ (-25℃～70℃) |
| Operating Humidity | ≤85% (Temperature 185℉± 37.40℉, 85℃±3℃) |
| Frequency Range | 1～500 MHz |
| Working Voltage | 125 V |
| Puncture Test | DC 1000 V (AC 750 V) 1 Min without Breakdown and Arc-over |
| Near-End CrossTlk (NEXT) | ≥ 4 dB |
| Insulation resistance | Initial Value ≥ 100 MΩ, After Constant Humidity and Heat Test ≥ 100 MΩ |
Features
45-Degree Angled Design
The ethernet faceplate features a 45-degree angled design, making it easier to plug and unplug cables, reducing stress on the connectors and minimizing the risks of cable bending or damage, especially in wall-mounted or flush-mounted faceplates.
Easy Installation
With the included mounting screws, the wall plate can be securely fastened, ensuring a simple and stable installation on the wall.
2-Port Design
Accommodates two keystone jacks or modules for data and network applications.
Versatile Applications
-The sleek and modern design makes it blend into any environment;
-Ideal for residential, office, or commercial network installations.
