Ethernet Cable Extender Adapter VCELINK
| Quantity | Price Per Unit / Pack | Savings |
|---|---|---|
| 10-49 | $7.13 | 5% |
| 50-99 | $6.90 | 8% |
| 100+ | $6.38 | 15% |
Free Shipping for Orders Over $10.99 in the US.
Fast shipping. Know More at Delivery & Return.
For more information, please send us an inquiry or email us.
Features:
- Support Power over Ethernet (PoE)
- Toolless Connector & Ethernet Coupler
- Support Wholesale & Customize
- 12-month Warranty & Lifetime Product Support
Pairs Perfectly With
Description
VCELINK Cat7 Ethernet Adapter can extend, repair, and reconnect cables, providing a stable network connection without affecting network transmission. It is a perfect solution to broken cables for stable connectivity. It requires only a cable cutter and wire stripper for fast and straightforward installation. Based on the Cat7 standard, it promises high-speed and stable signal transmission. It is ideal for various environments such as home, office, server room, and other network wiring scenarios.
If you need to buy in bulk or want to get customized services, please contact us or email us.
Learn More in What is Field Termination Plug?
Specifications
| Product Type | Cat7 Toolless Cable Extender |
| Shielding Type | Shielded |
| Data Rate Support | 10 Gbps |
| Plastic Material | New PC |
| Shielded Material | Zinc Alloy,Nickel Plating |
| Terminal Pins | Phosphor Bronze,Zin Plating |
| RJ45 Contact Life | ≥750 Times |
| IDC Terminal Life | ≥250 Times |
| Contact Resistance | 20m OHM |
| Insulation Resistance | ≤500m OHM @100 VDC |
| Withstand Voltage | DC1,000V AC 700V RMS 60HZ,1 Min. |
| Operation Temperature | -10℃~60℃ |
| Storage Temperature | -40℃~70℃ |
| Cat7 Permanent Link | Conform to ANSI/TIA/EIA 568B.2-10 |
| Usage | Stranded Wire or Solid Wire 22 AWG to 24 AWG |
Features
Wide Compatibility and Applications
-The Ethernet cable extender supports reconnecting and extending network cables that have been cut or broken;
-Compatible with solid & stranded cables, suitable for 22-24 AWG Ethernet cables.
Effortless Installation
-This Cat7 Ethernet Cable Extender is designed for convenience, free of professional crimping tools during installation. With just a simple cable snip and a wire stripper, you can easily install or disassemble the extender;
-The load bar design on both ends makes it easier to insert wires for simplified installation.
Reusable Design
-The IDC terminals can be used more than 250 times;
-It is suitable for long-term uses.
High Performance
-Metal-shielded housing prevents signal interference and enables stable transmission;
-Supports bandwidth of up to 500MHz and can transmit data at speeds of up to 10Gbase-T;
-Cat7 network performance, suitable for bandwidth-intensive applications, such as gaming, VR, data centers, etc.
Video
Q&A
-
Are the Ethernet Cable Extenders compatible with Cat 5e?
Thanks for your question! This cable extender is suitable for 24 AWG to 22 AWG Ethernet cables. But if your Cat5e cable is unshielded and thin, it is not recommended to use with this adapter. Because it may lead to looseness and weak links, which will affect performance.
If you have any problems, feel free to contact us : )
Reviews
Customer Reviews

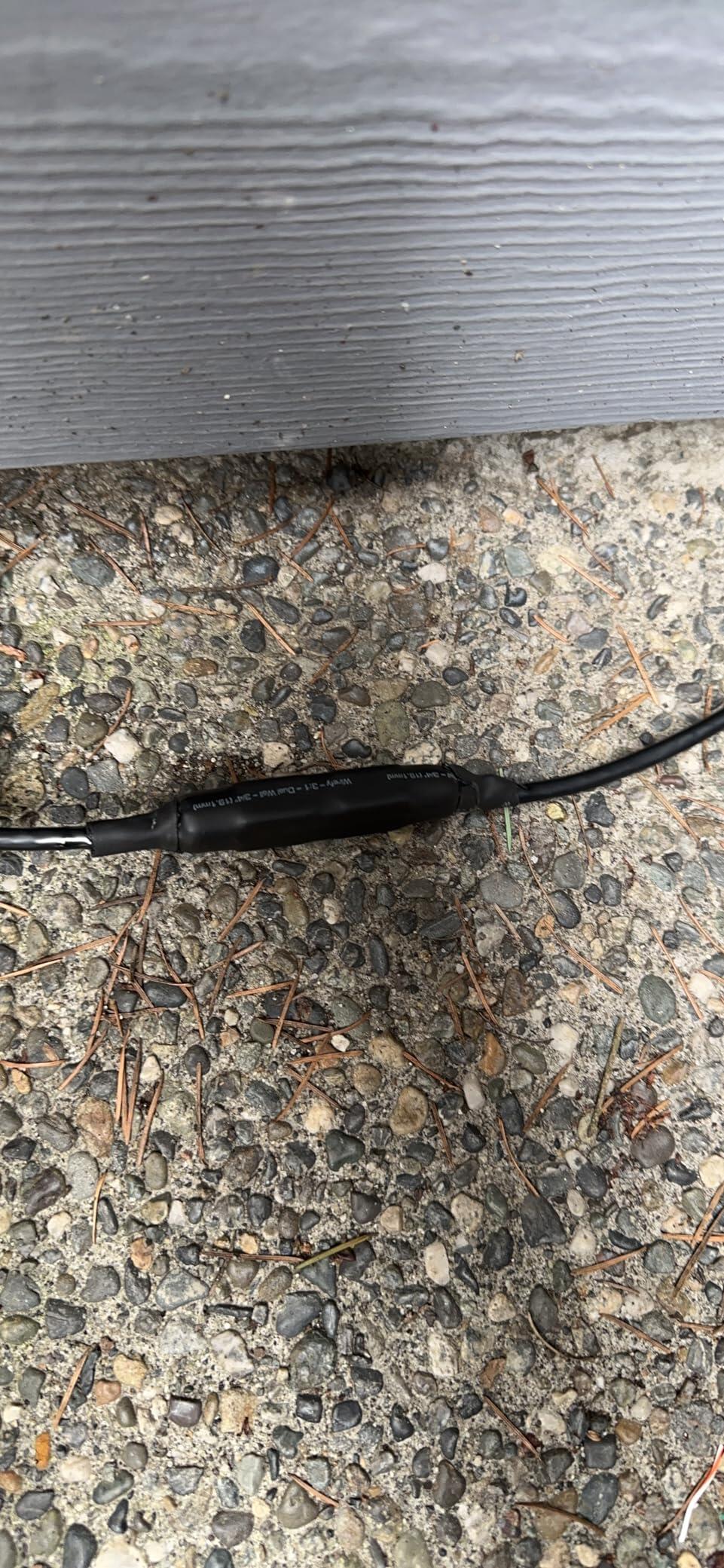

I have an exterior ethernet cable that I use for surveillance cameras that are POE. Recently, a rodent chewed through one of my surveillance Ethernet CAT6 cables. I tried other forms of repair first that took a ton of time and were unsuccessful. As a last resort, II tried other forms of repair first that took a ton of time and were unsuccessful. As a last resort, I figured I would give this a shot, before taking the time to run a brand new cable. Although it was a little bit challenging to get the small wires into the right spot, I had success on my very first attempt -taking less than 10 minutes total. Since this is still an exterior area, I placed the device in heat shrink tubing (used a heat gun to shrink 3:1), used the type with built-in adhesive. It is now completely waterproof. Will be using again in the future if the mouse returns!
Produit vraiment très pratique pour raccorder deux câbles RJ45.
Plus facile à installer qu'une prise RJ45.
Bonjour, J'ai du rallonger un câble Ethernet les deux coupleurs ont été nécessaire, tout fonctionne, un peu dur en ce qui me concerne pour le vissage avec le câble mais on y arrive !
It is great for solid metal conductor cables, such as the ones you find in walls. But stranded conductors, you gotta fight with it.
I recently installed Starlink and had to route the cable they provided from my roof to the side of the house to bring the cable inside. I ran the cable wrong instead of running it from inside up to the antenna I ran it down from the antenna to an outside wall where I would drill a hole and run it into the family room where my Starlink router was located. The end of the Starlink cable that attaches to the router is shaped like an L so once I drilled the hole there was no way i was getting that connector through the hole. Starlink states that you cannot cut the cable and if you do you will have to purchase a new cable. I decided I will cut the cable and use this RJ45 shielded coupler to splice the cable together. If it did not work I would need to buy another cable anyways. Much to my surprise this RJ45 connector worked fabulously, just follow the instructions to splice the cable. One note is that this RJ45 coupler is not weather proof, interior use only unless you mount it in some type of weatherproof enclosure. Been 2 months since I hooked it up and my signal is great, have not had any issues with degrading signal. So if you have a damaged or cut cable this will be an easy fix to cut out the bad portion and resplice the cable at a very low cost!
