Cat7 Toolless RJ45 Connectors VCELINK
| Quantity | Price Per Unit / Pack | Savings |
|---|---|---|
| 10-49 | $13.19 | 5% |
| 50-99 | $12.77 | 8% |
| 100+ | $11.80 | 15% |
Free Shipping for Orders Over $10.99 in the US.
Fast shipping. Know More at Delivery & Return.
For more information, please send us an inquiry or email us.
Features:
- Shielded Toolless Connector
- Operation Temperature: -10 °C to 60 °C
- Package: 2/6/12/24 x Toolless RJ45 Connector
- 12-month Warranty & Lifetime Product Support
Pairs Perfectly With
Description

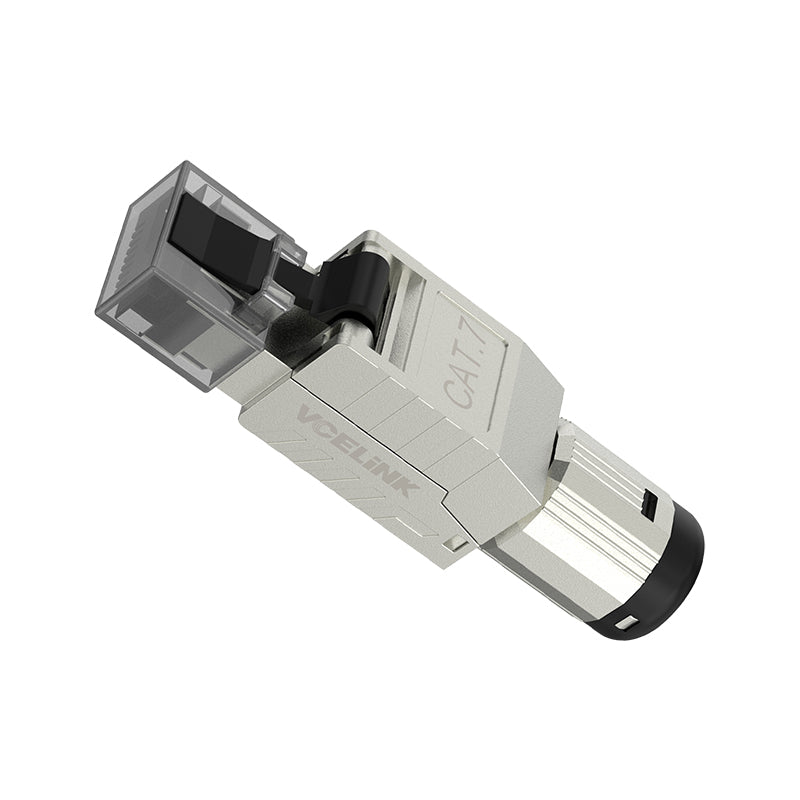

VCELINK Cat7 Toolless Connector supports speeds of up to 10 Gbps. It is designed for Cat7 cables, but is backward compatible with Cat6a and Cat6 cables. The toolless design makes this Cat7 connector easy to install, and the shielded housing prevents external interference. Use our Cat7 field termination plug to enjoy easy network installation in home networks, offices, or data centers.
If you need customized or bulk services, please contact us or email us directly.
Learn More in What is Field Termination Plug?
Specifications
| Product Type | Cat7 Toolless Plug |
| Termination Type | 8P8C Connector |
| Style | Toolless; Shielded |
| Wiring Scheme | T568A/T568B |
| Data Rate Support | 10 Gbps |
| Housing Material | Zinc Alloy |
| Shell Material | PC |
| Contact Blade Material | Phosphor Bronze Nickel Plated |
| PIN Material | 30 Micron Gold Plated |
| Insertion Force | 30N MAX. |
| Retention Strength | 7.7KG Between Jack And Plug |
| Operation Temperature | -10°C to 60°C |

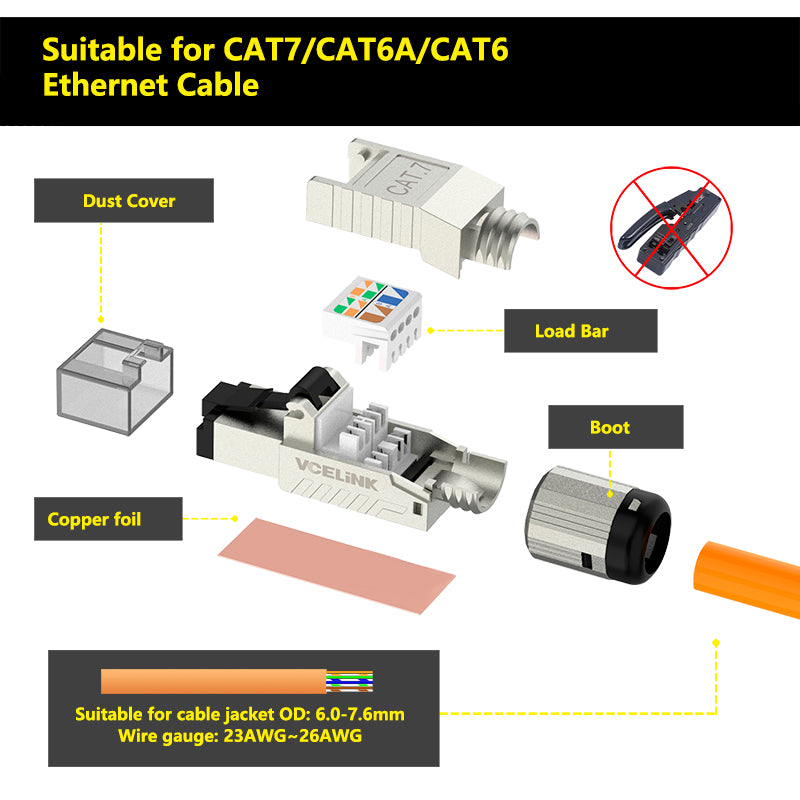

| Usage | Stranded Wire or Solid Wire 23 AWG to 26 AWG |
| Cable Jacket Diameter | 7mm ~ 8.5mm |
Features

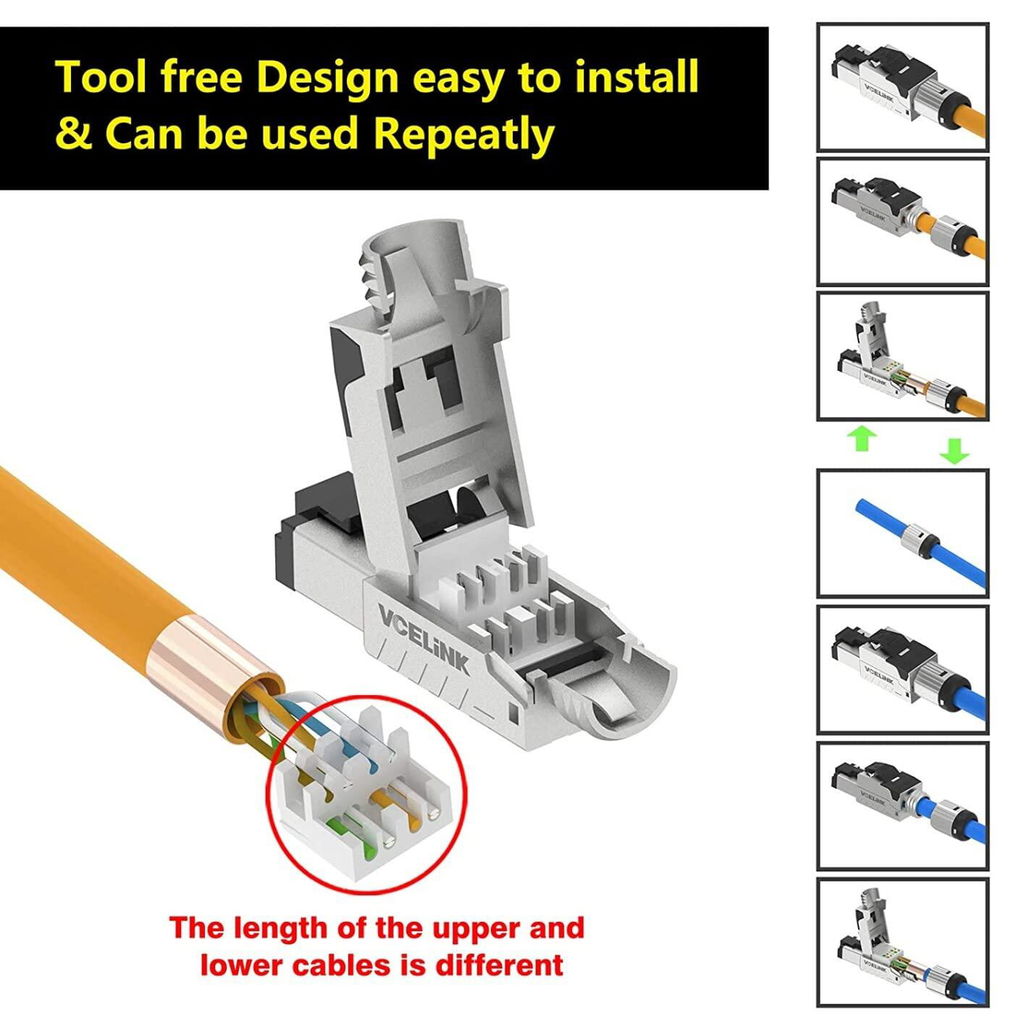

Easy Installation

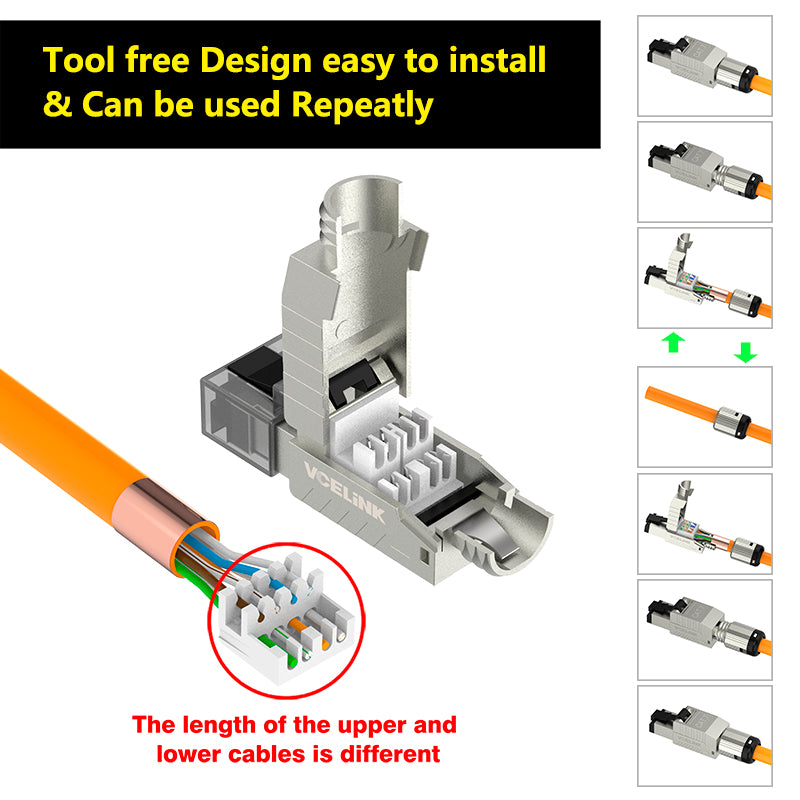

-No professional tools are required for installing Cat7 cables;

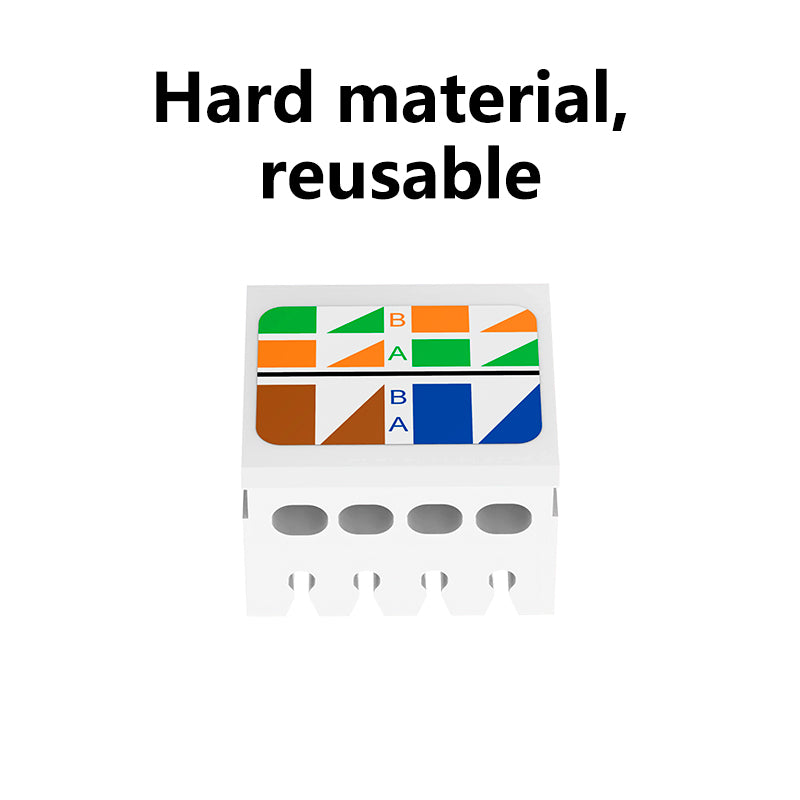

-The printed wiring diagram and conductor holder allow for quick and reliable network installation, ideal for professionals and DIY enthusiasts.
Durable Design
Our toolless Cat7 connector is designed for multiple uses without compromising the quality of your network connections.
Superior Cat7 Performance

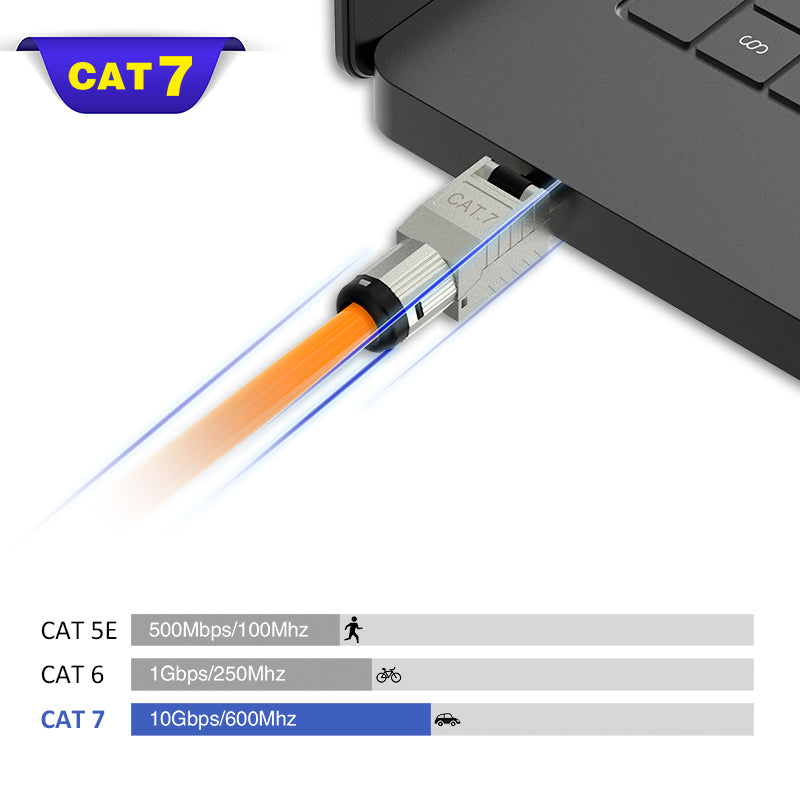

The Cat7 performance can support transmission speeds of up to 10 Gbps and the bandwidth is up to 600 MHz, making this RJ45 connector ideal for home networks, office networks, and data centers.
Enhanced Transmission

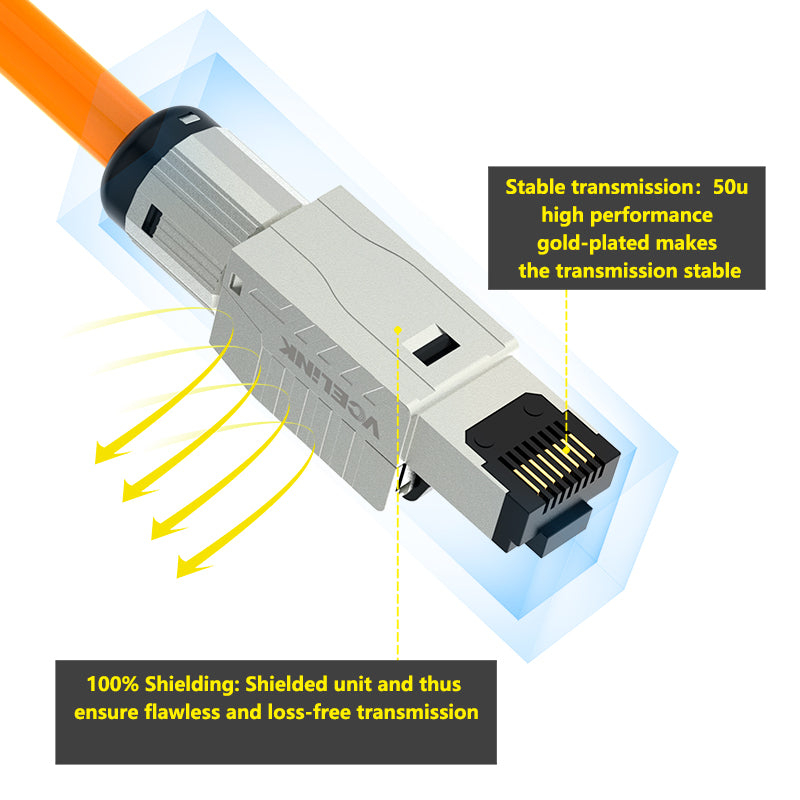

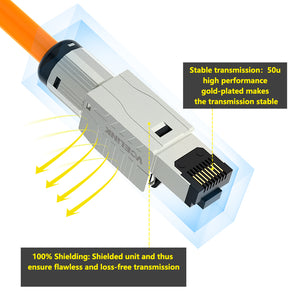

-A metal-shielded housing provides enhanced durability and corrosion resistance, ensuring a more reliable connection in various environments;

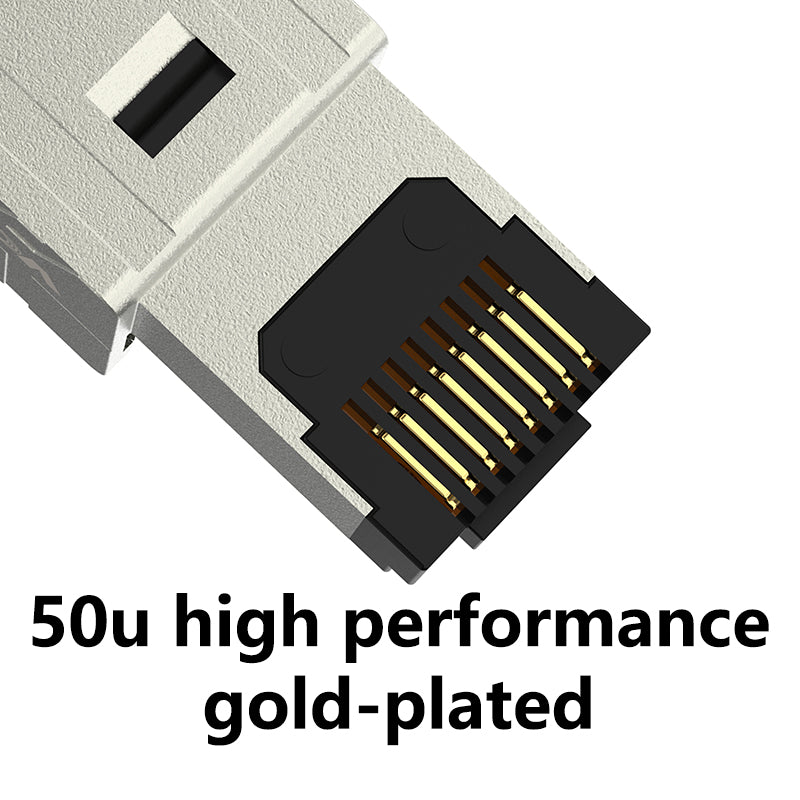

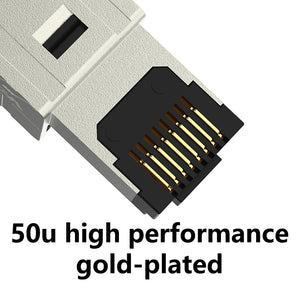

-The 50µ gold-plated contacts improve the quality of signal transmission.
Q&A
-
Does the connector support 26/7 awg wires? so non solid core wires
Hi, thanks for your message! Please note that this Cat7 toolless RJ45 connector is compatible with stranded wire or solid wire 23 AWG to 26 AWG.
-
Will this work on Cat8 as well?
These tool-free connectors cannot be used with CAT8 cables, they support Cat7/Cat6a/Cat6 network cables. If you need Cat8 connectors, we recommend you our KJ20-C8: https://www.vcelink.com/products/rj45-cat8-plug
Hope this information can help you!
Reviews
Customer Reviews
Didn't have the usual tools, crimper etc and this was only to terminate one end of a 30m length of Cat7 being used externally

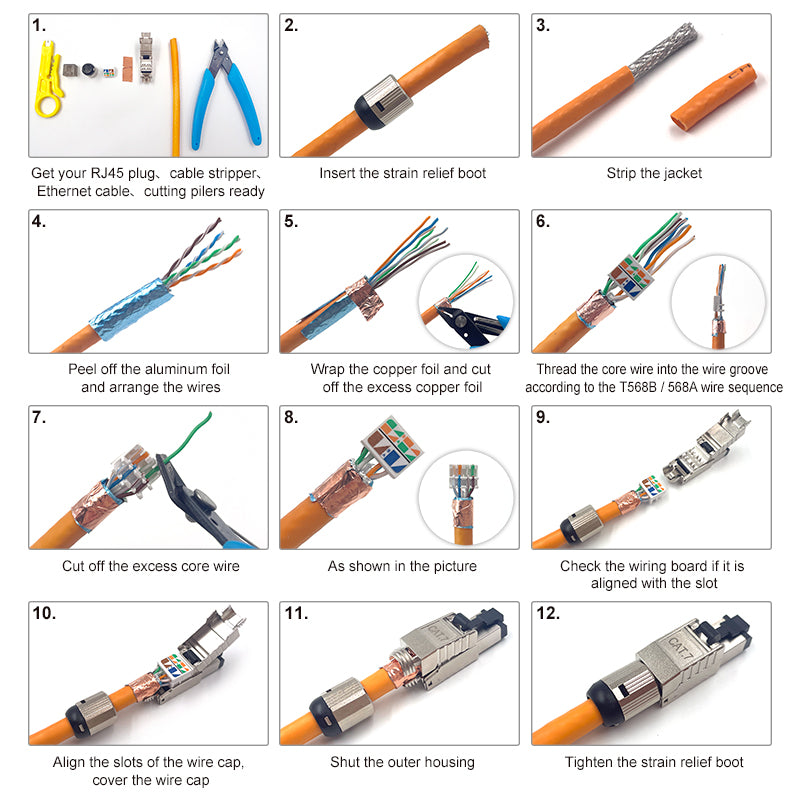

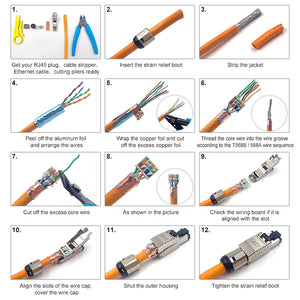

Took my time, paid attention to the instructions (especially the specific wiring placements) and got the job done
That said, my first attempt, although fully working was a touch loose in my mind and I couldn't leave it, so with utmost ease, I was able to do again with the same Rj45 block - perfect!
All tests were positive - I'd use again as necessary if required and likely will to be honest
Just make sure you cut the wires to the lengths shown in the image.
The white wires shown are the white wires that are twisted around the colour wires.
Veramente facili da cablare, niente pinze a cui sono abituato solitamente, ho usato un cavo categoria 7 per andare dall'ont al router per un'eventuale upgrade futuro a 2.5gbit o chissà cosa.

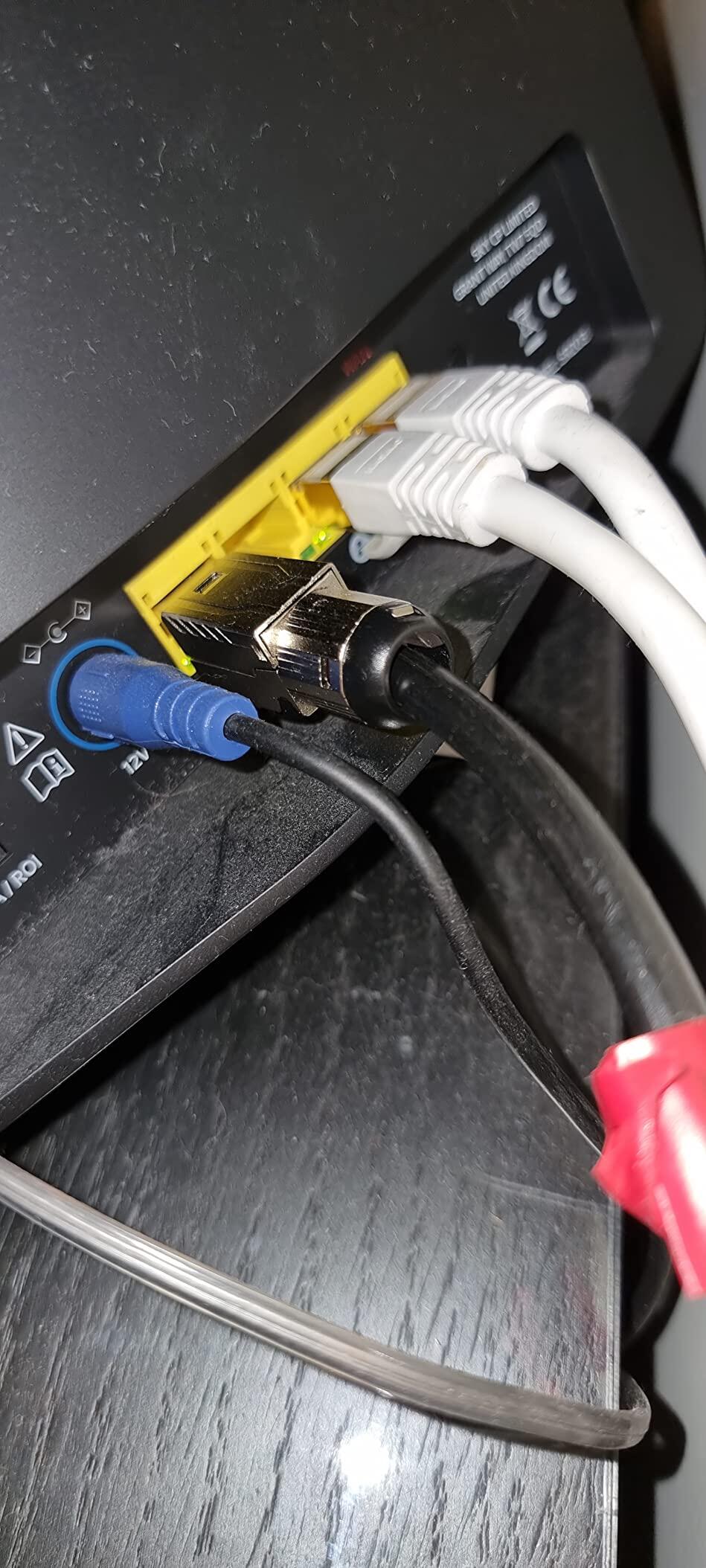

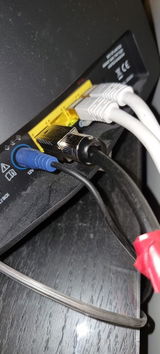

These were much more simple than trying to use the other type. They went on easily and work perfectly. A little bulky at the point of plugging in to your router/switch/etc, but to be expected
Sono perfetti, nessuna difficolta' trovata
