Cat6a RJ45 Stecker VCELINK
| Quantity | Price Per Unit / Pack | Savings |
|---|---|---|
| 10-49 | $6.16 | 5% |
| 50-99 | $5.97 | 8% |
| 100+ | $5.51 | 15% |
Free Shipping for Orders Over $10.99 in the US.
Fast shipping. Know More at Delivery & Return.
For more information, please send us an inquiry or email us.
Features:
- Tool Free Cat6a Network Plug;
- Zinc Alloy Shielded Housing Material;
- Phosphor Bronze Nickel Plated Blade;
- Phosphor Bronze Gold Plated Contact;
- 12-month Warranty & Lifetime Product Support
Pairs Perfectly With
Description

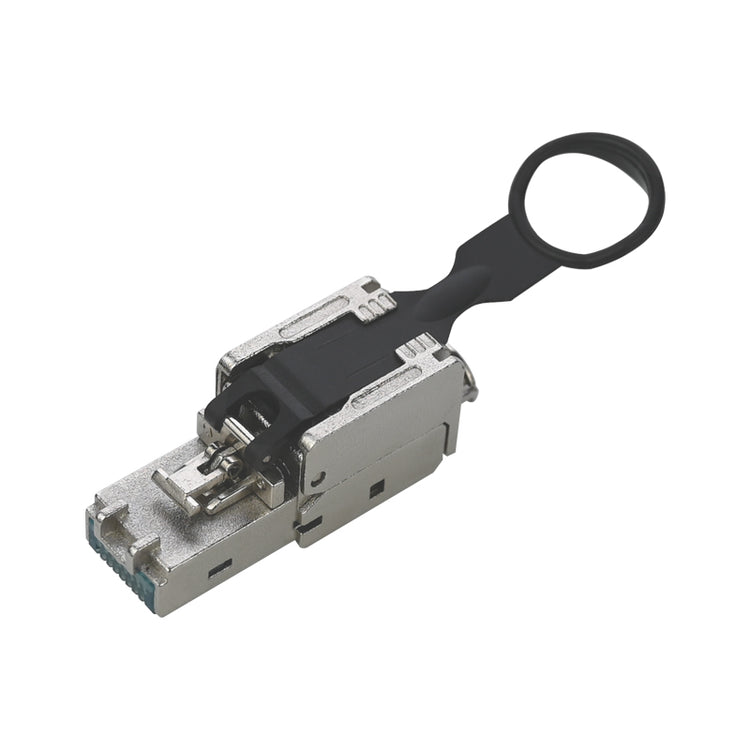

VCELINK RJ45 Cat6a Connector with a compact design is perfect for tight spaces. This upgraded toolless Cat6a connector is easy to plug in and out with its pull-ring design. The shielded design makes this plug resistant to external interference and ensures stable data transmission. Featuring Cat6a performance, this field termination plug is ideal for large-scale network installation, especially for data centers and server rooms. If you need to customize or bulk purchase, please contact us or email us.
Learn More in What is Field Termination Plug?
Specifications
| Product Type | Cat7 Toolless Plug |
| Termination Type | 8P8C Connector |
| Style | Toolless; Shielded |
| Wiring Scheme | T568A/T568B |
| Data Rate Support | 10 Gbps |
| Plastic Material | PC + PA |
| Shielded Material | Zinc Alloy |
| IDC Blade Material | Phosphor Bronze Nickel Plated |
| Pin Material | Phosphor Bronze Gold Plated |
| IDC Terminal Life | ≥250 Times |
| RJ45 Contact Life | ≥750 Times |
| Operating Temperature | -40°C ~ 70°C |
| Usage | Soild Wire 22 AWG to 27 AWG/Stranded Wire 22 AWG to 26 AWG |
| Cable Jacket Diameter | 5mm~9mm |
Features
Pull-ring Design
Lighter and smaller than regular RJ45 plugs, this Cat6a shielded plug with a pull-ring design is easy to disconnect from RJ45 ports, especially in narrow and tight places.
Easy Installation
-The tool-free design simplifies the installation with no professional RJ45 crimping tool;
-T568A and T568B color coding makes it easier to install time-saving cable termination in the field.
High Performance
-Supports Cat6a performance of up to 10 Gbps and 500 MHz;
-Compatible with Cat6 and Cat5e stranded and solid wires.
Enhanced Transmission
-The shielded housing provides great resistance to external interference, providing stable signal transmission;
-Gold-plated contacts ensure stable data transmission.
