Cat6 Shielded RJ45 Connectors Short Body VCELINK

25 RJ45 connectors with 25 loading bars, which will connect ethernet cables up to Cat 6, both shielded and unshielded types.

Doing these connections yourself is always going to be fiddly, but like anything, you get better the more you do

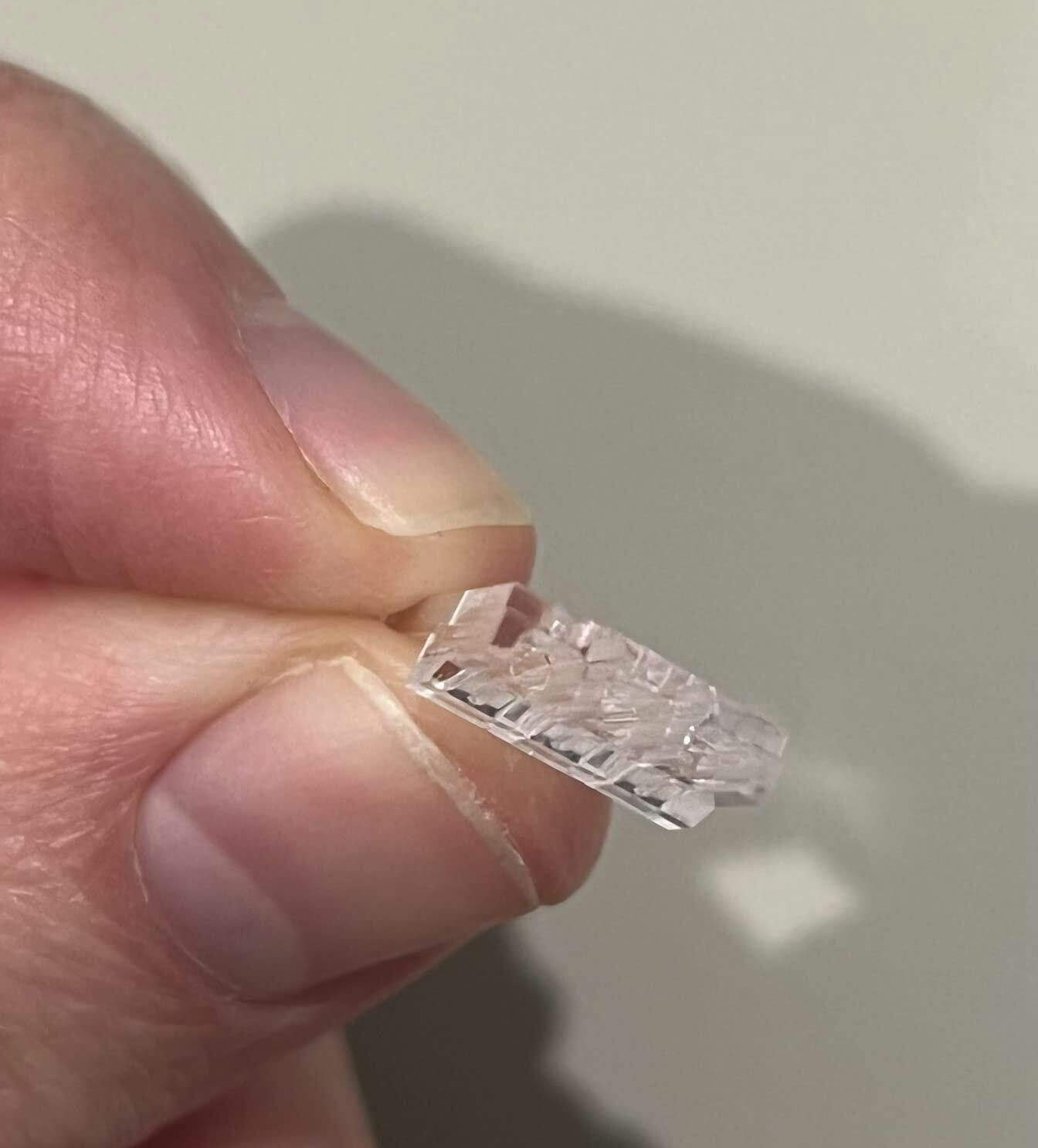

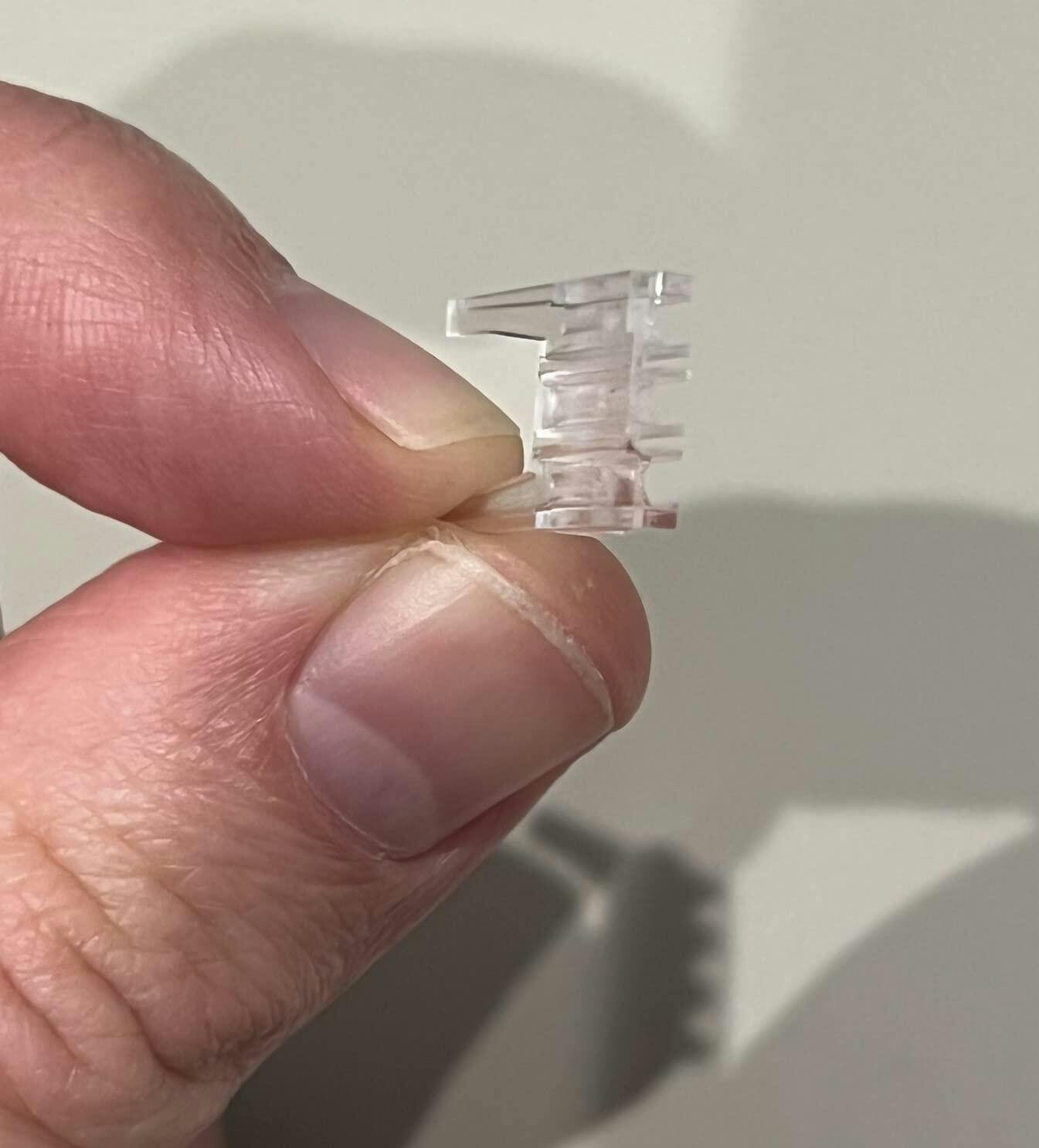

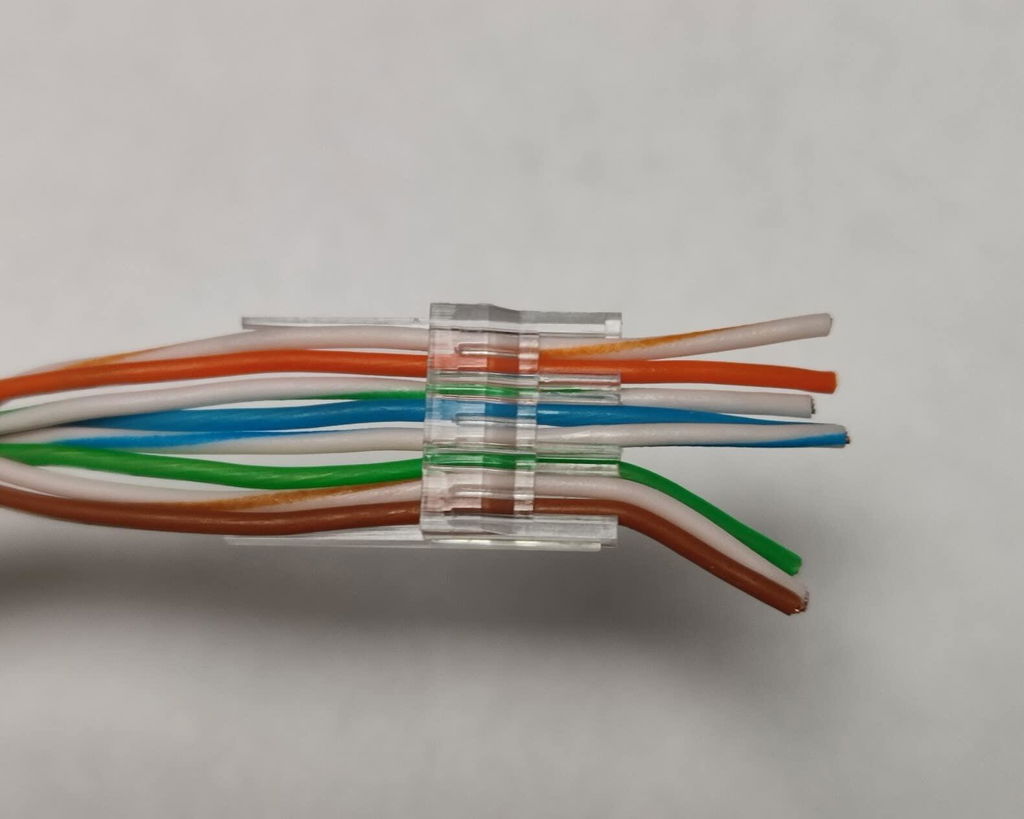

The clear loading bar does help align the coloured ethernet cables before final insertion into the RJ45 adaptor. And you will need a crimping tool (not supplied) to finish the job.

So far, it's working as expected, no complaints

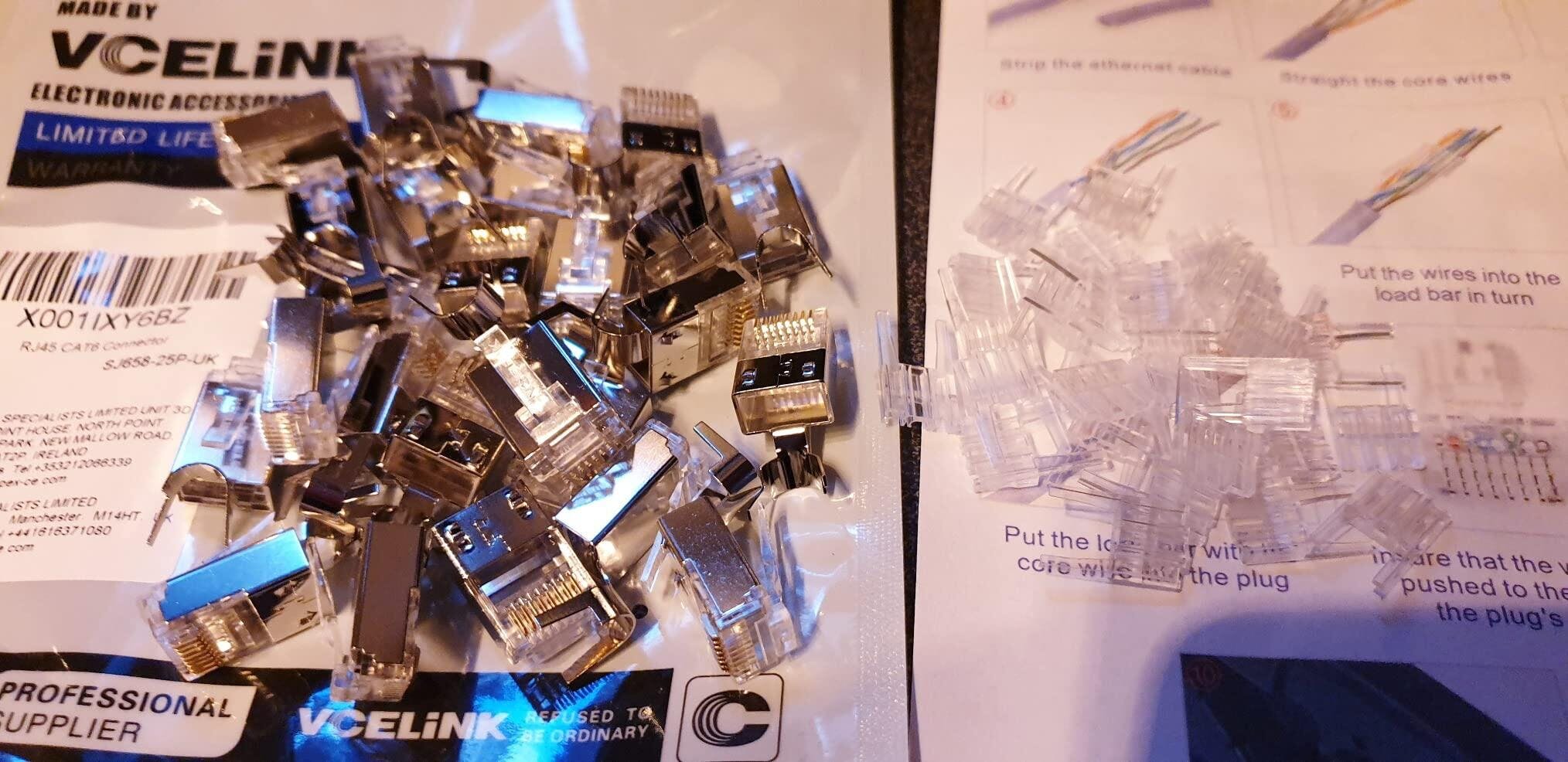

Very handy pack of RJ45 connectors with a great quantity in pack.

Finished to a high standard, and come with a very comprehensive instruction sheet.

Fantastic price, so would definitely recommend.

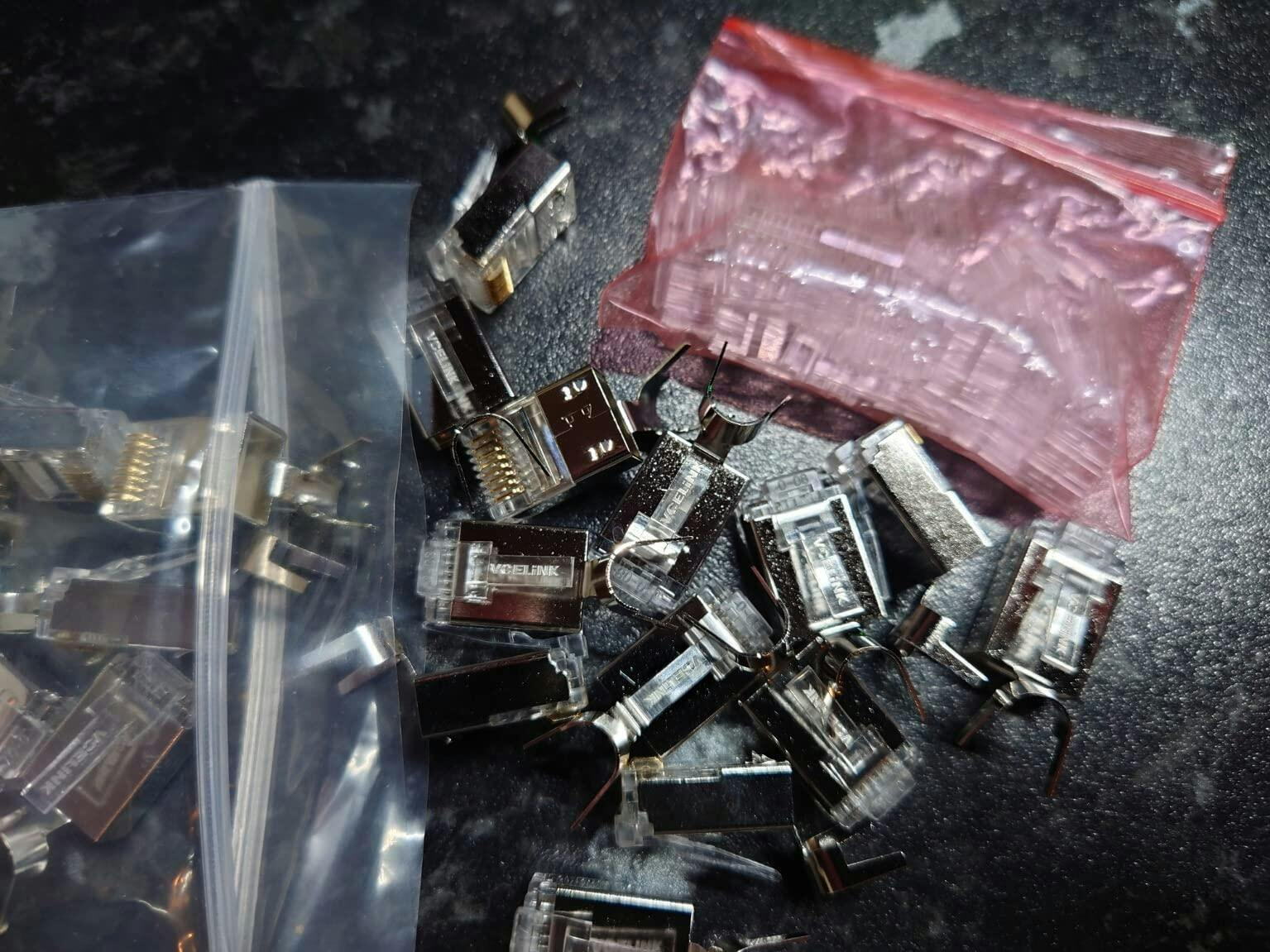

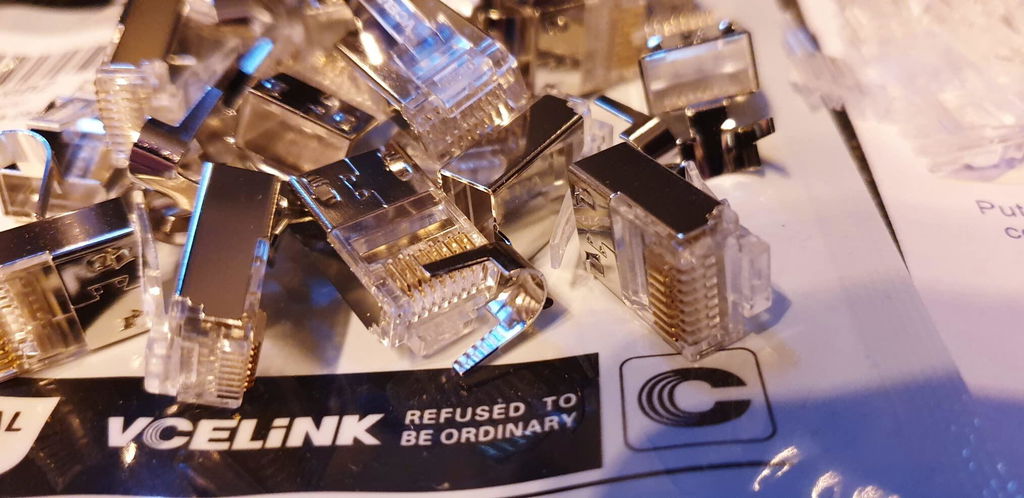

These come in a plastic pack which has another plastic pack inside that contain the connectors. Also included are some instructions on how to use them. With them being cat6, the ethernet cables inside are spaced further apart to lessen any interference and they are compatible with Cat6, Cat5e and Cat5 cables. One of the things I like about pass-through connectors with a load bar is that you can see the ethernet cables properly so you can check they went through the tracks properly and are in the correct sequence. You can also get the ethernet cable sheath right up to the connector before you crimp it so it’s nice and snug.

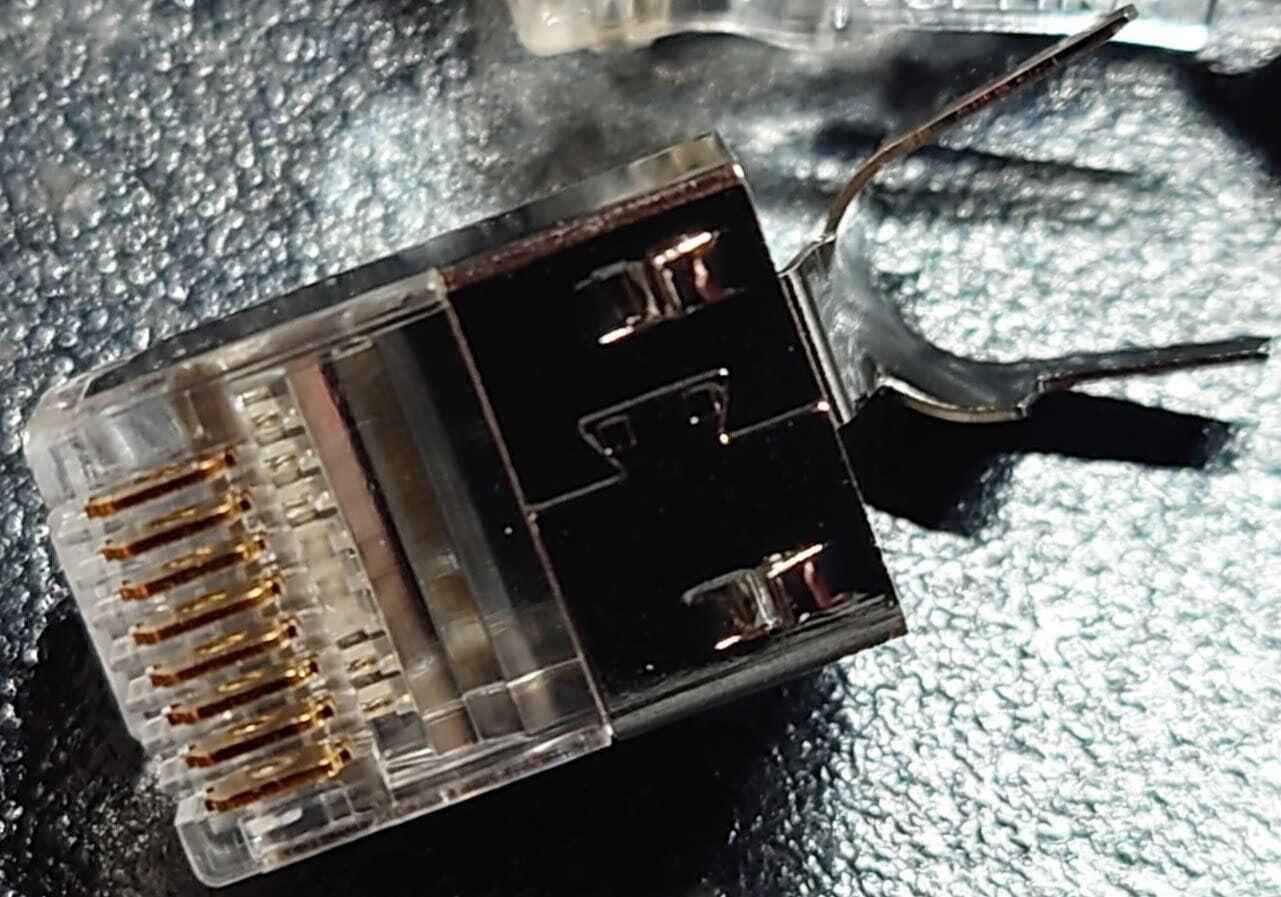

These also have a 3-pronged blade which means they can be used with solid core cable. I’ve used about 20 of these now and every one of them got a good connection and passed the connection test on my ethernet tester.

Since these have 3-pronged blades, is Cat6 and is also the pass-through load bar, for the price you may as well buy these. They are not as expensive as some pass-through connectors, and I would always prefer the pass-through load bar type over the traditional. My crimping tool doesn’t cut the excess cable off, but they are easy enough to slice off with a blade…

I usually buy the regular adaptors as I got used to them. However, I have to admit that these adapters are really good and worth it; The only thing I think they could improve is the manual/instructions.

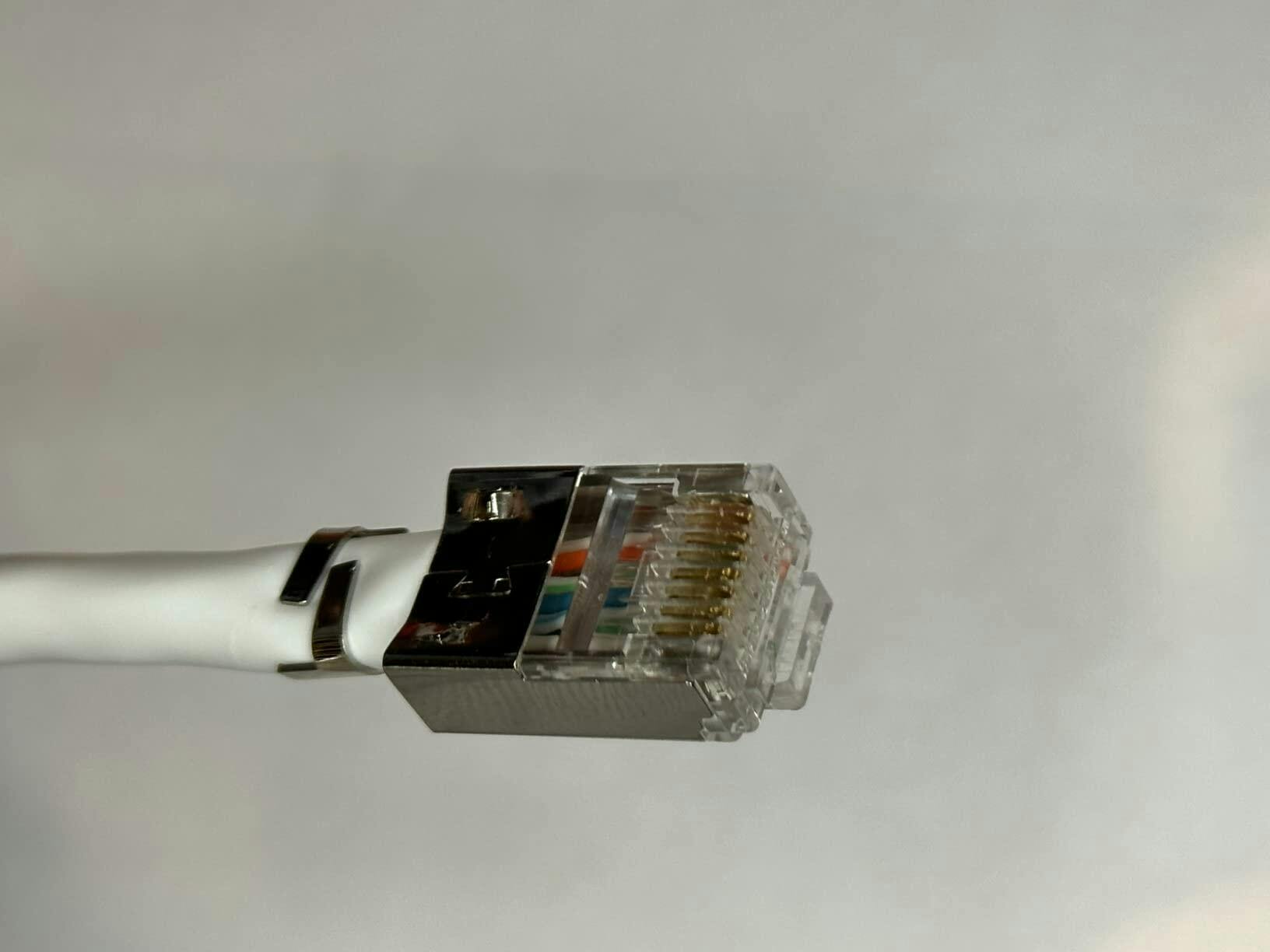

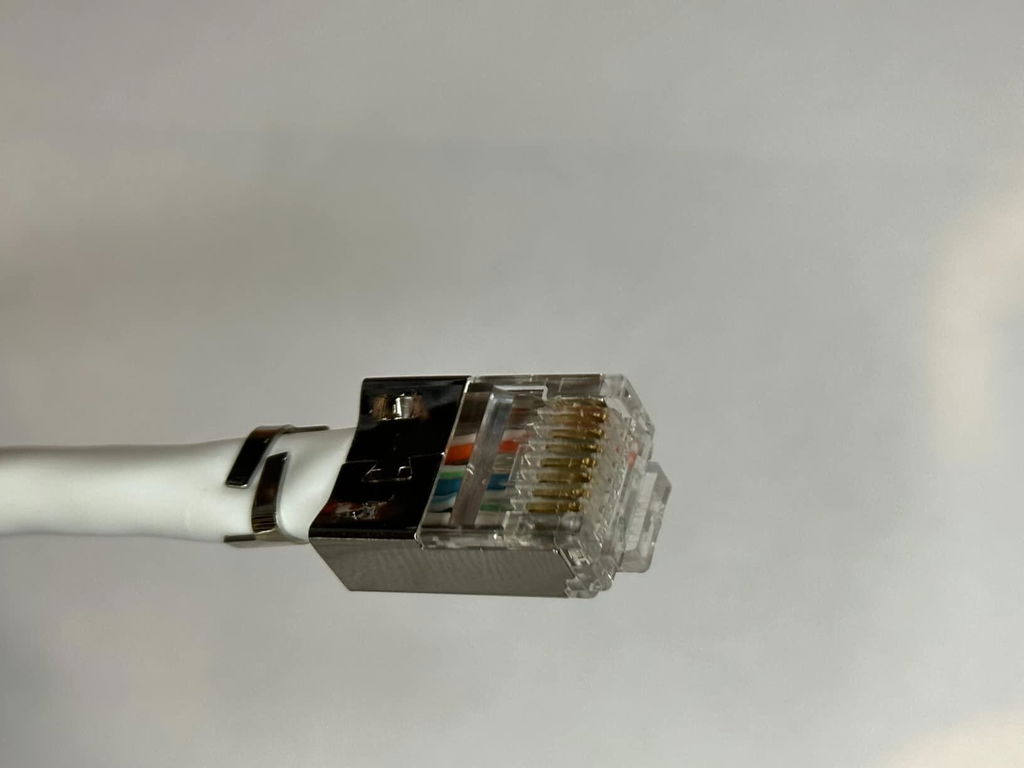

It took me a few minutes to understand how to use them as you have to carefully pass the wires individually through the little plastic cap; It makes it easier to allow some spare wire, then once you have passed all the wires you just cut the excess wire and crimp it with your crimping tool (not provided), so, bear in mind that you will need to have a crimping tool to use these… I had a lovely experience with these adapters and a great result, as seen from the photos.

A pack of 25 CAT6 connectors at a reasonable price.

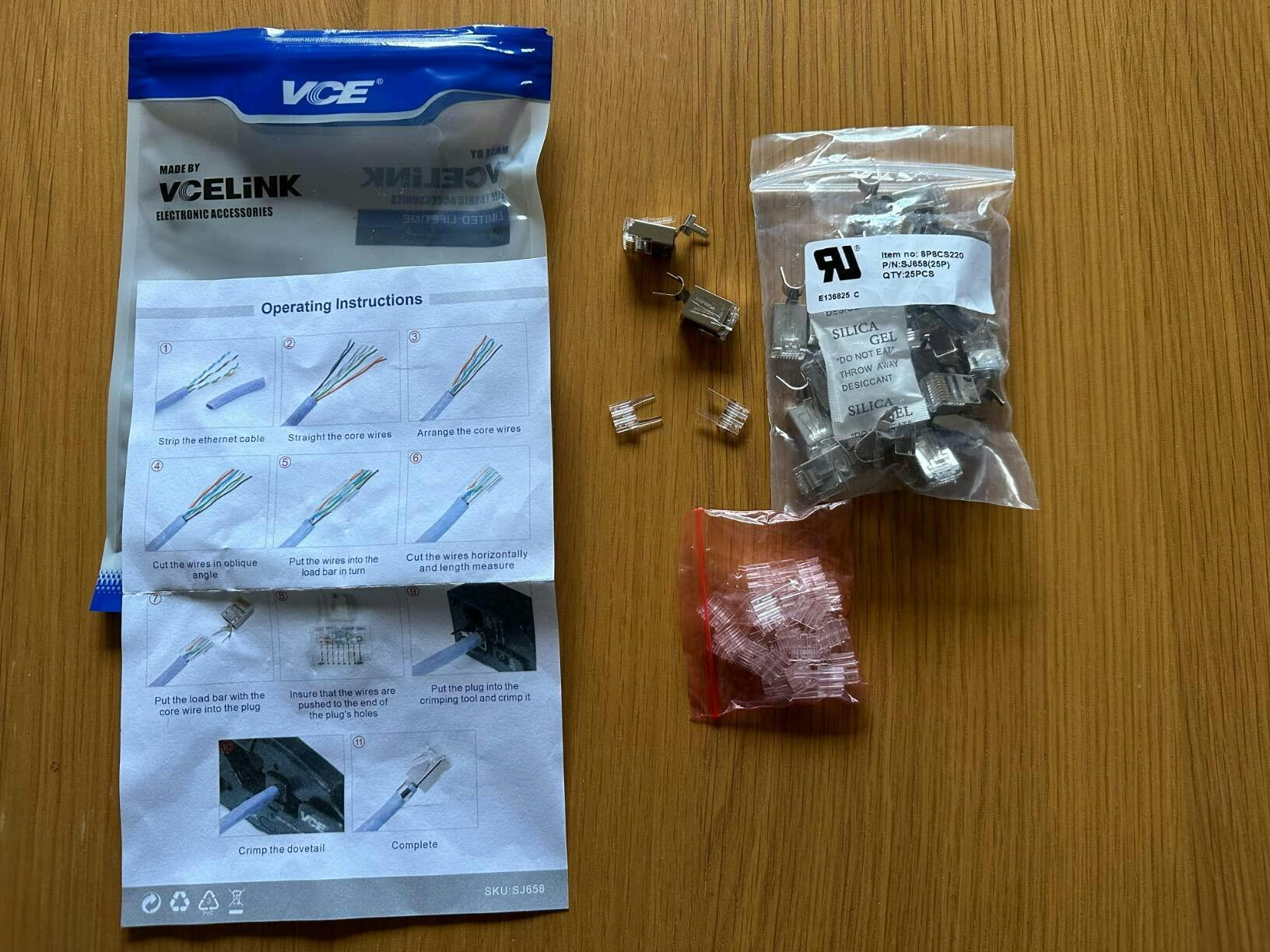

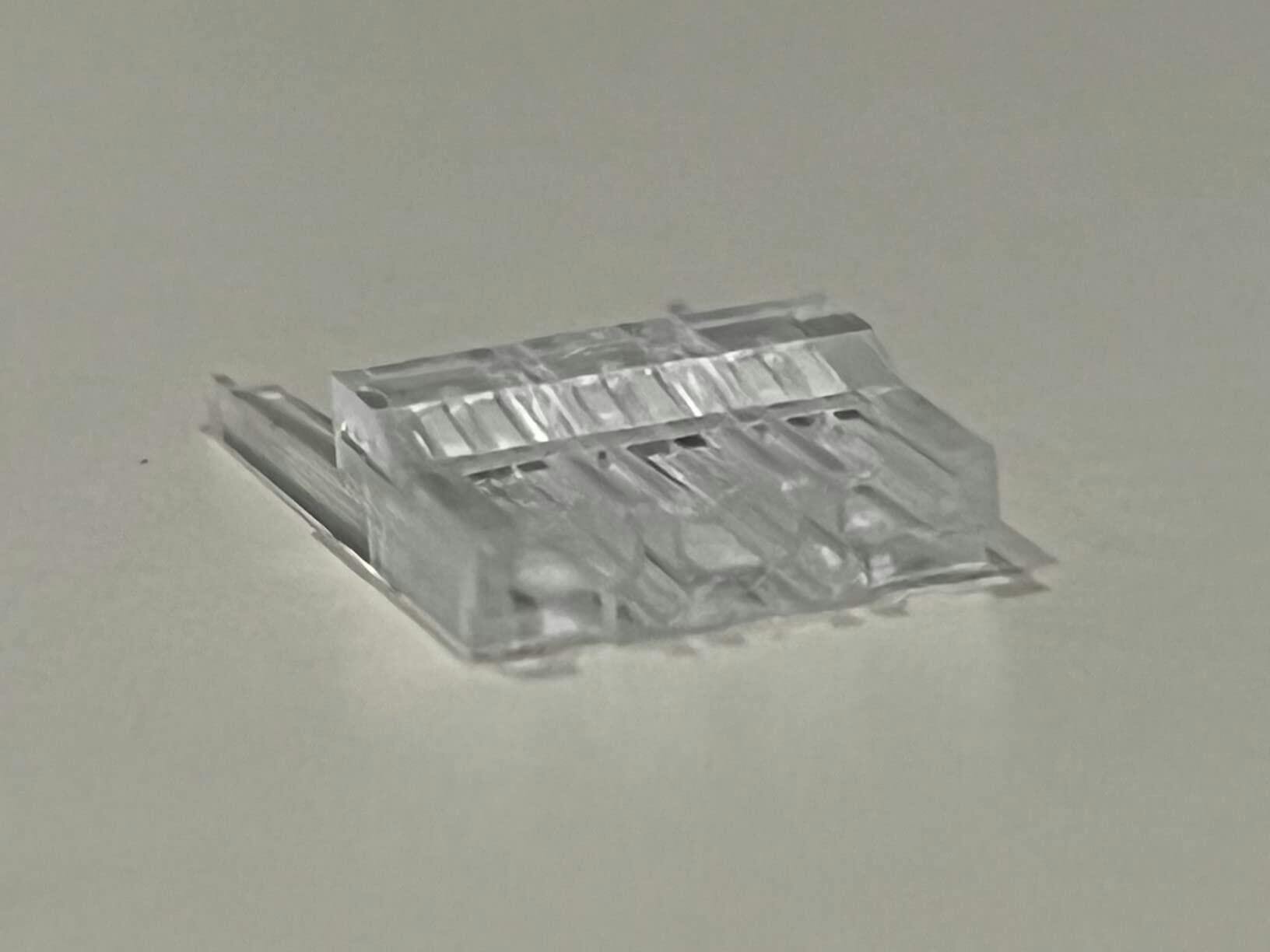

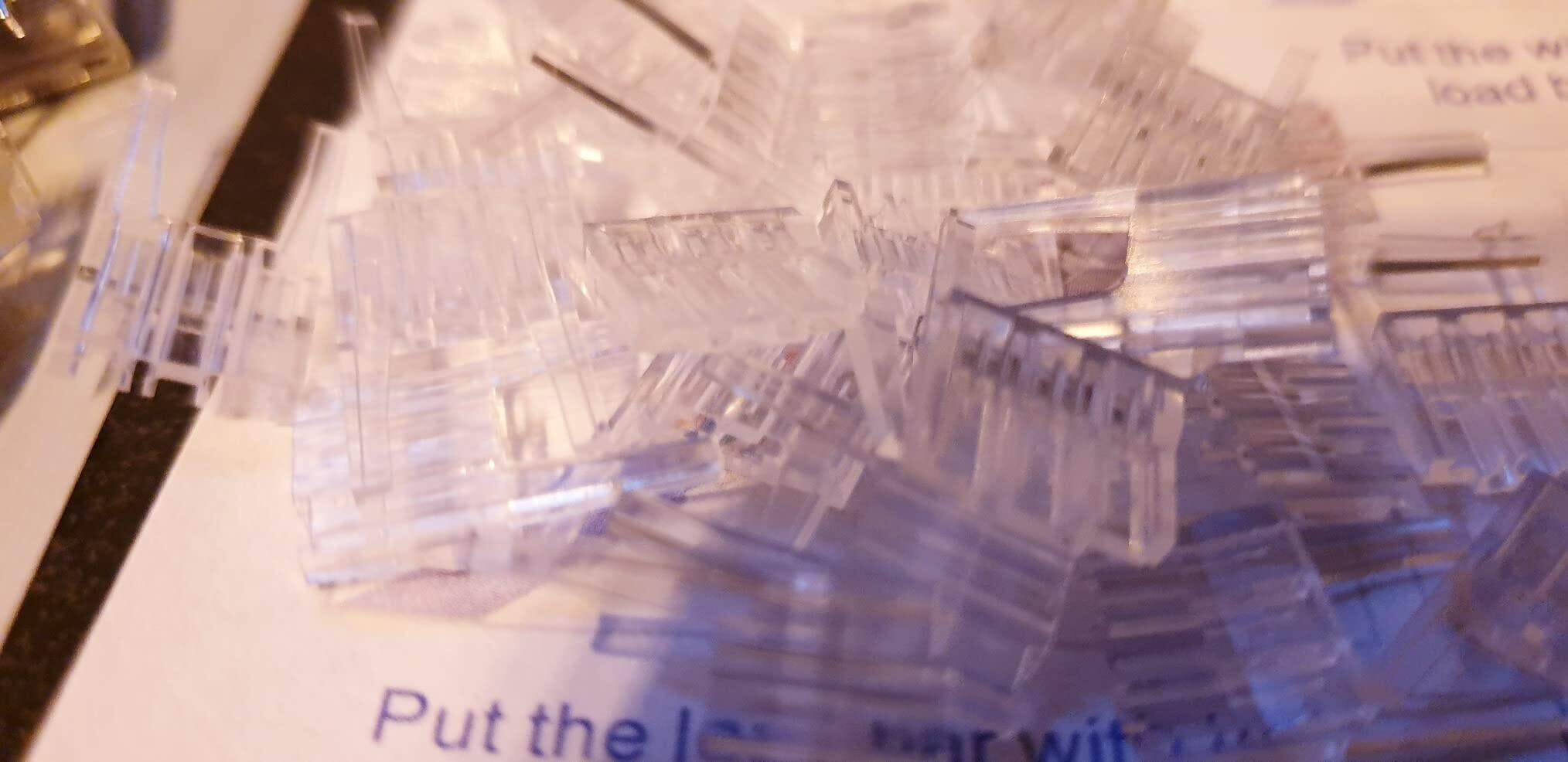

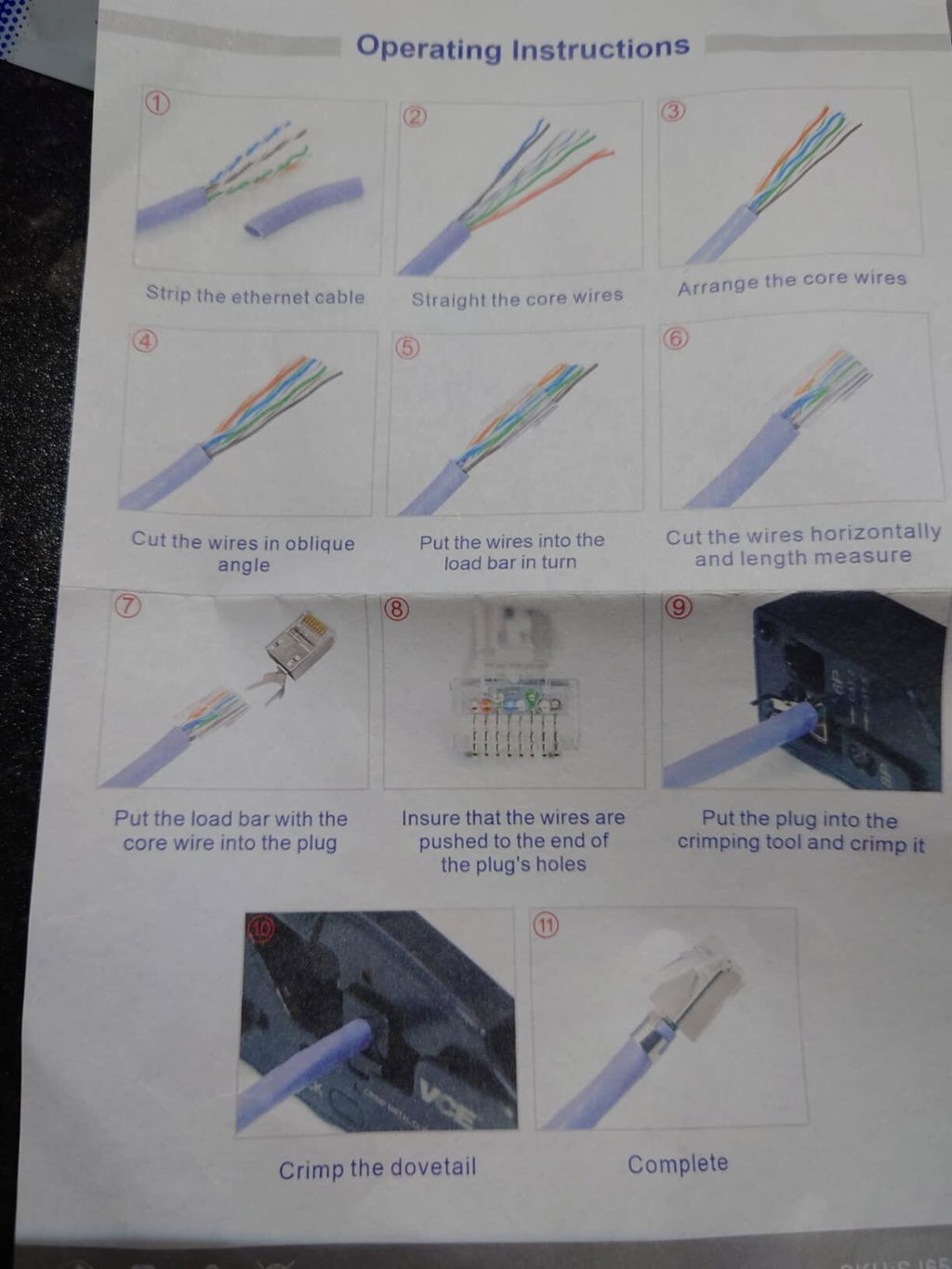

The pack contains the plugs, loading aids (to help sort the wires for insertion) and an instruction leaflet.

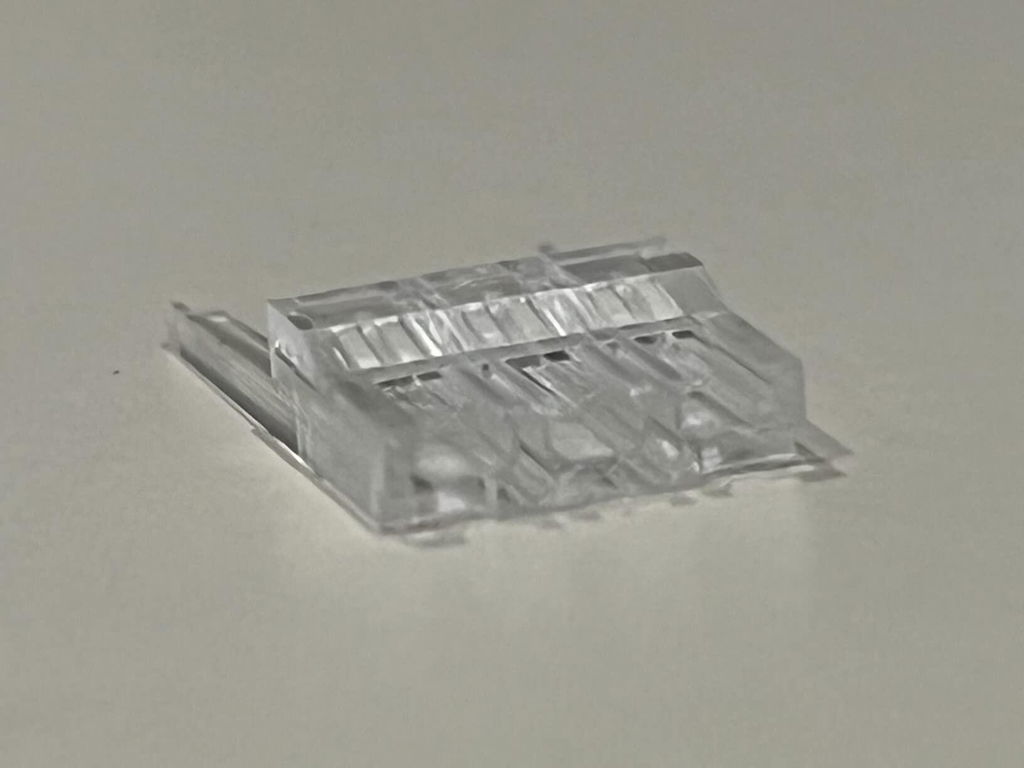

The leaflet was a little small and a little lightly printed for me but if you're planning on assembling these its the same process as ever with the addition of the second level of holes for managing thicker CAT6 wires in the loader /plug.

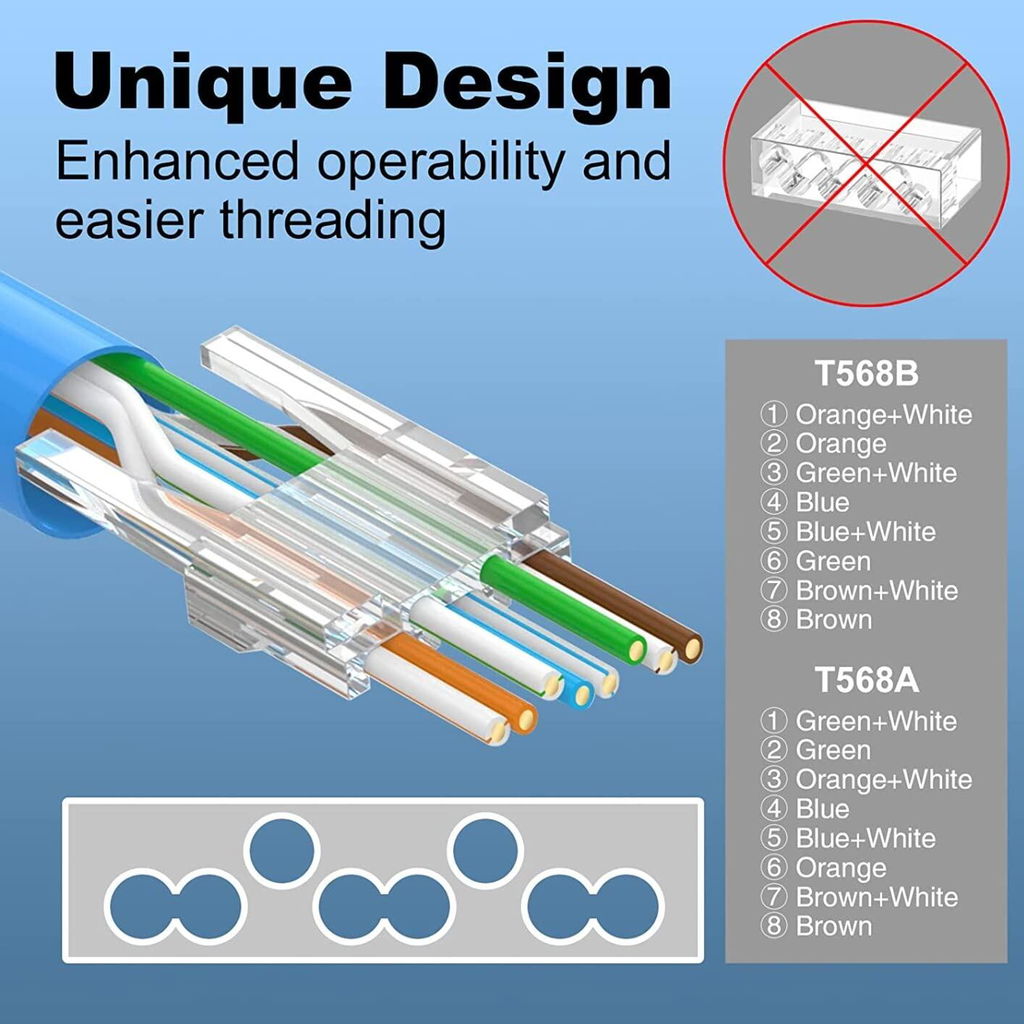

I found a better image of the required wire order for these online that illustrates this and have re-posted it here. Worth noting you'll probably be wanting to use the T569B plan so I've crossed through the other plan .

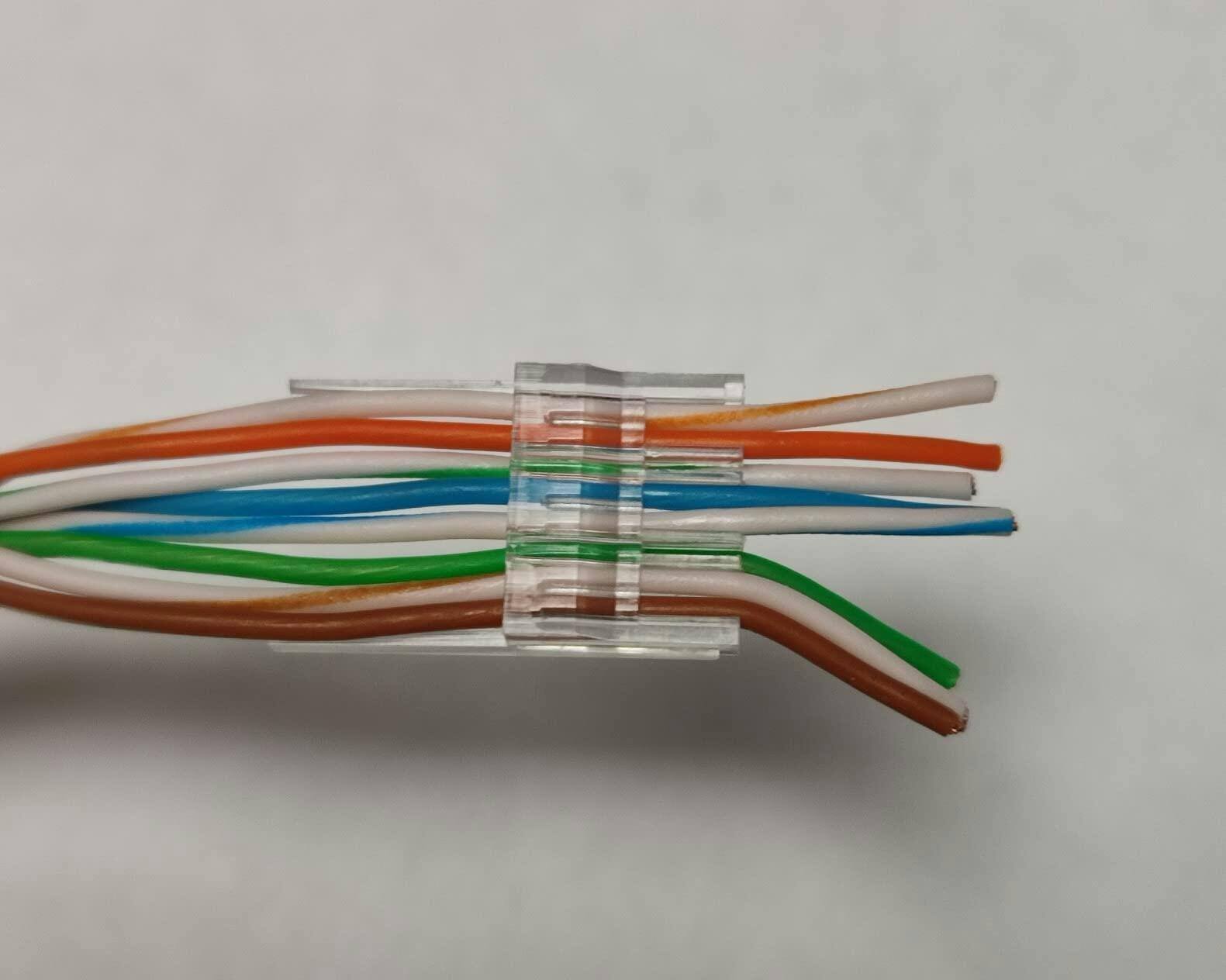

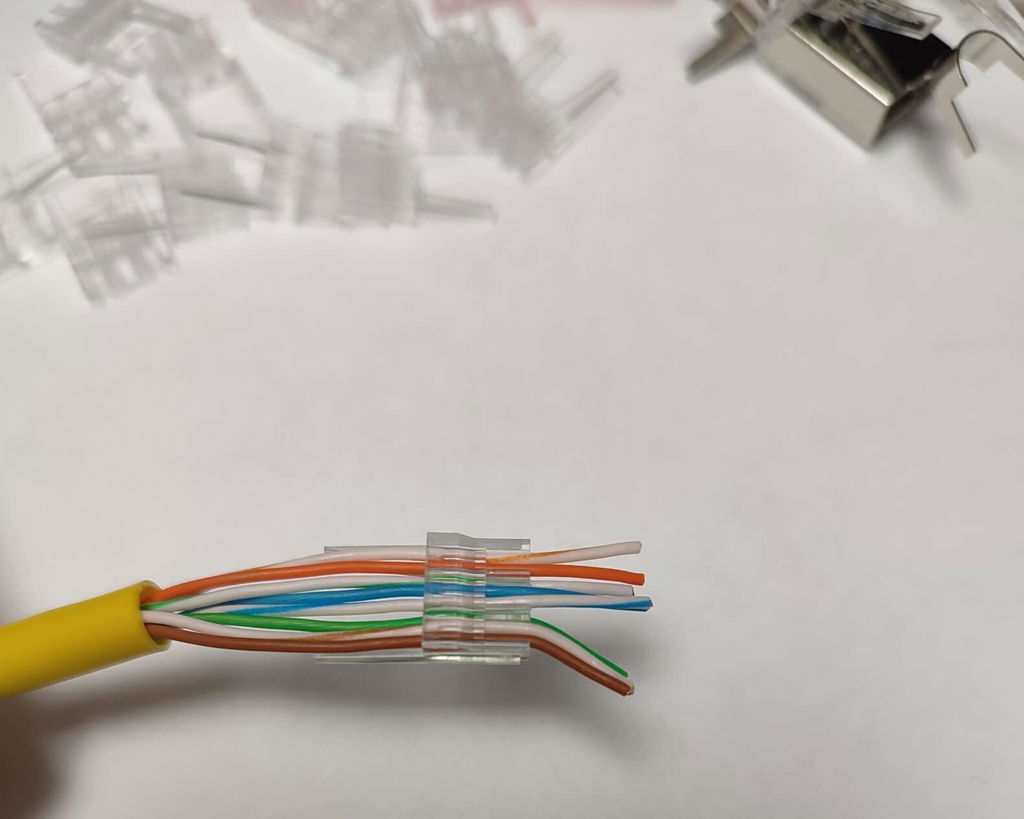

To assemble, tease out the wires into the right order, cut them at a slant and insert one by one into the loader

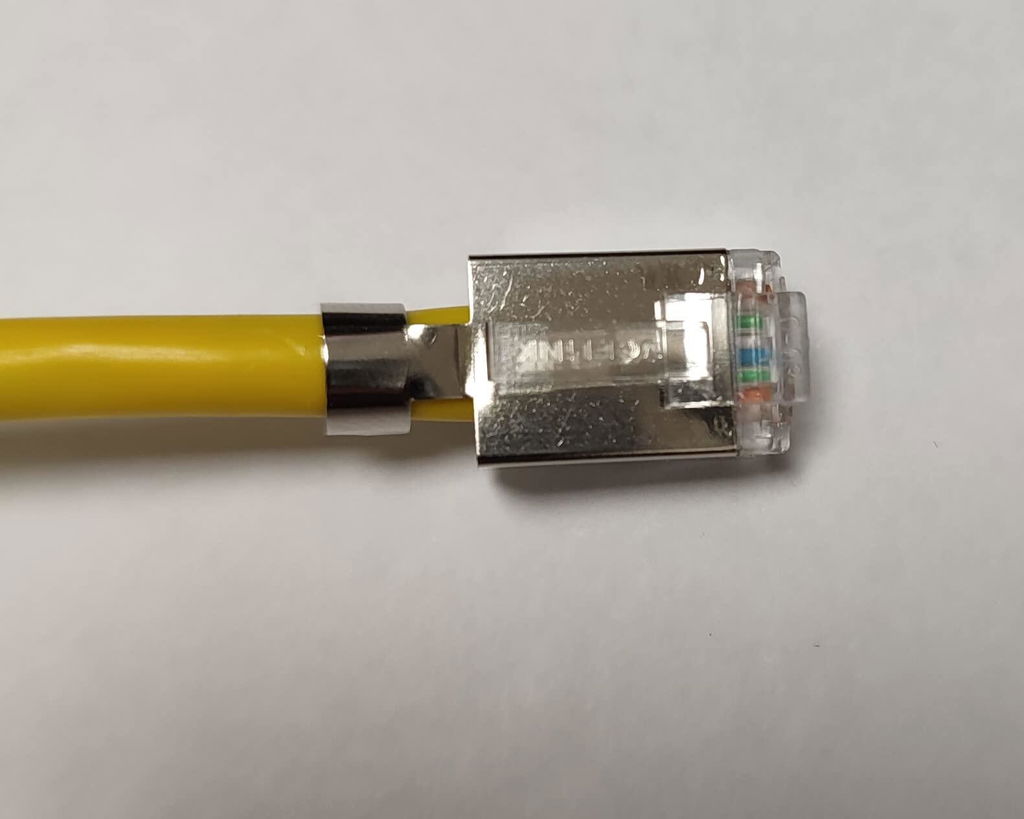

Get the cable outer case as close to the loader as you can (closer than the image shows)so that the rear of the plug case can grip it,
cut the wires at the front flush,

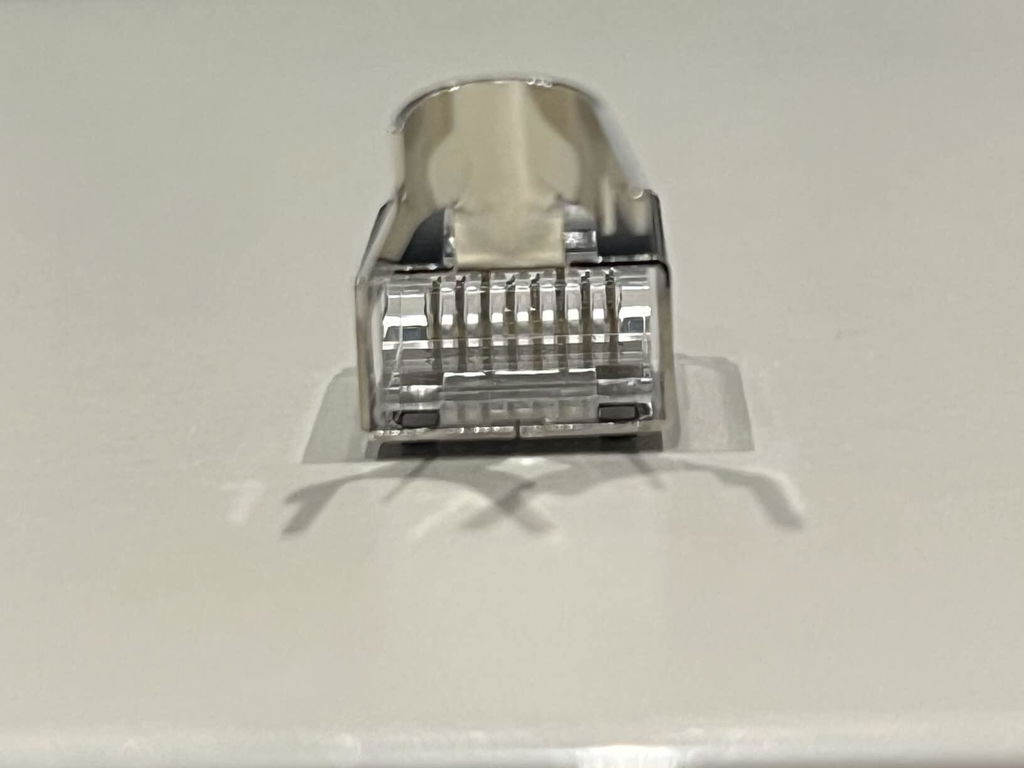

put them in the plug shell and check all reach the end and
crimp with the proper tool.

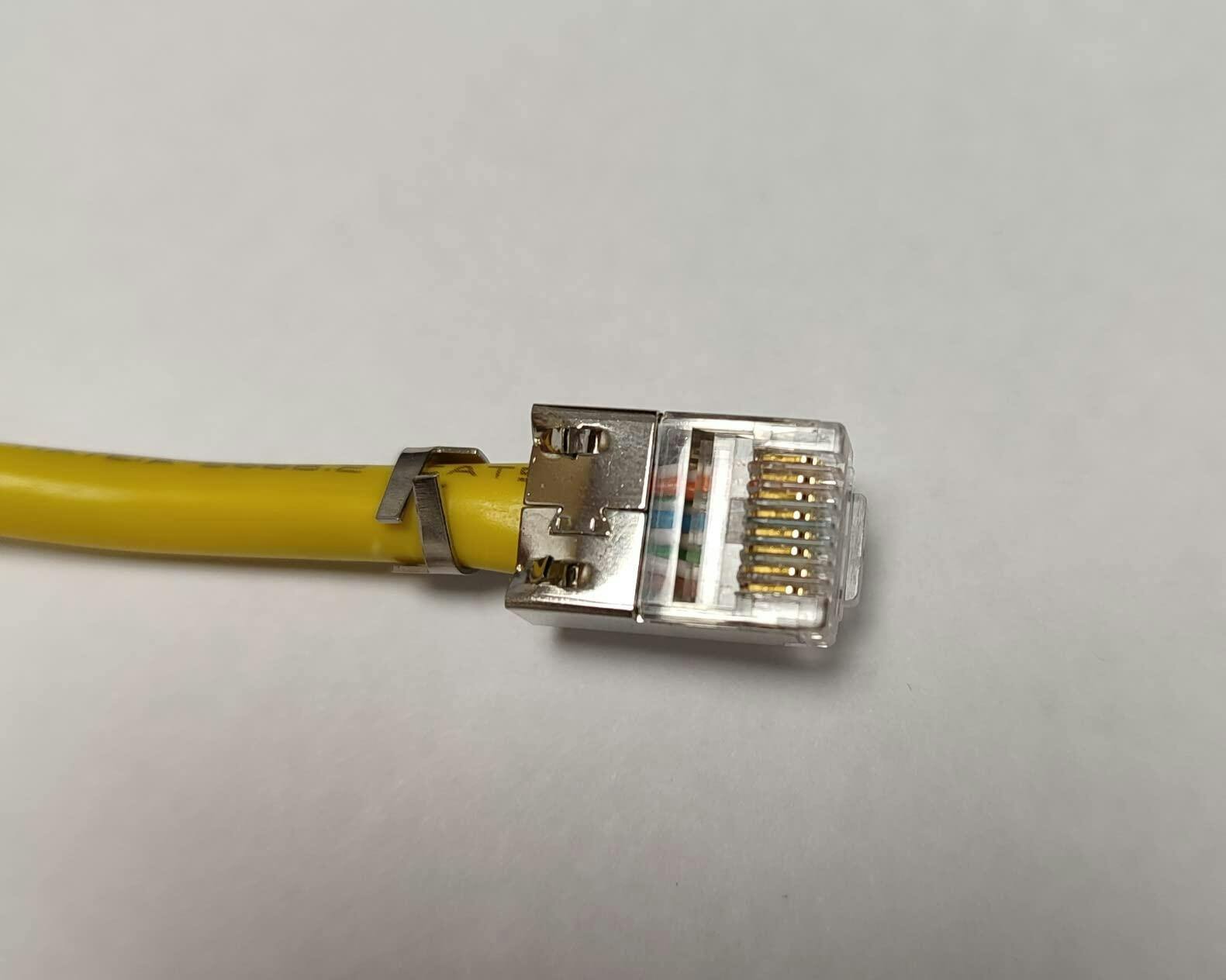

The metal cable grip would then grip the outer shield on Screened cables but in this case it was Unscreened cable I had on hand so it's just an extra mechanical aid.

The connector blades gripped the wire cores fine even though they were at the very low end of the stated diameter range

Some strain relief boots to cover the rear of the connectors would have been nice but are optional, pretty standard and are available separately

Not Bad !
