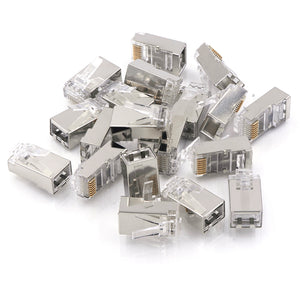

Cat6 RJ45 Modular Plug

Cat6 RJ45 Modular Plug VCELINK

SJ653-25P-OL
$15.99
Low Stock <100
QuantityPrice Per Unit / PackSavings
10-24 $15.195%
25-49 $14.718%
50+ $13.5915%
Item Quantity
Saves you %

Free Shipping for Orders Over $10.99 in the US.

Fast shipping. Know More at Delivery & Return.

For more information, please send us an inquiry or email us.

Features:

  • Housing Material: Polycarbonate, UL94V-0
  • Blade Material: 50u" Gold-plating + Copper Alloy
  • Insulation resistance: 500 MΩ
  • 12-Month Warranty & Lifetime Product Support

Pairs Perfectly With

  • modular plug boot

    RJ45 Boots in Multiple Color VCELINK

    $2.99

    Item Quantity
    Color
  • ethernet crimper
Total price: --
Prices shown may not reflect final costs.

Description

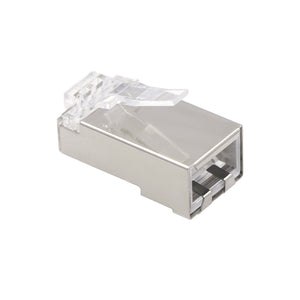

Our Shielded Cat6 RJ45 Modular Plug features a shielded design for interference resistance, ensuring a more stable and reliable network connection. With a capability of up to 1000Mbps (1Gbps), our shielded RJ45 connectors guarantee a fast and stable network connection.

It is suitable for various devices, and you can enjoy uninterrupted online gaming, high-definition video streaming, and large file transfers with our Cat6 plugs.

Specifications

Product Type Cat6 RJ45 Connector
Termination Type 8P8C Connector
Style Two-piece; Non-pass-through; Shielded

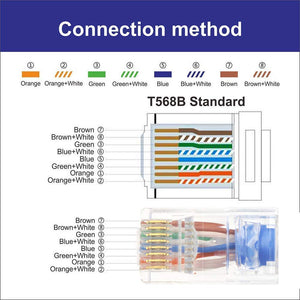

Wiring Scheme T568A/T568B
Data Rate Support 1000 Mbps
Housing Material Polycarbonate, UL94V-0
Shielded Shell Material Copper Alloy
Contact Blade Material Copper Alloy
Gold-Plating 50 Micron
Operating Ambient Temperature -20°C ~ 75°C

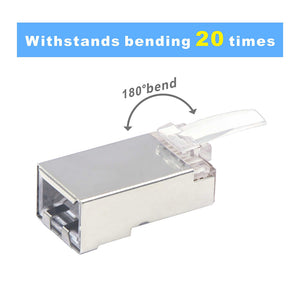

Strain Relief Test 20 Pound MIN.

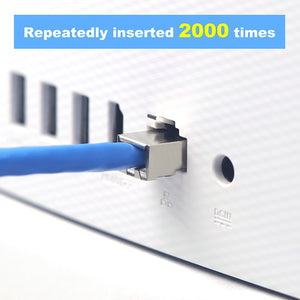

Durability 1200 Mating Cycles
OD of the Individual Cable Core Ø 0.98 ~ Ø1.05
Usage Stranded or Solid Wire 23 AWG to 26 AWG

Features

Easy Installation

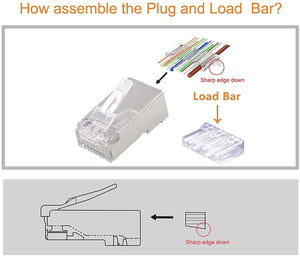

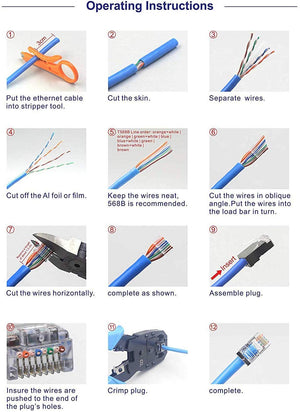

The two-piece design makes it easier to install. The load bar allows you to double-check the wire sequence to decrease the error rate.

Shielding Performance

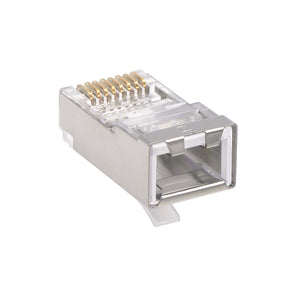

The metal housing provides a shielding performance to reduce EMI and RFI, providing a secure connection.

Powerful Compatibility

-Our RJ45 modular plug meets Cat6 performance requirements per ANSI/TIA-568-B.2-10 for a Gigabit Ethernet network;

-The Cat6 connector is backward compatible with Cat5e and Cat5 network cables.

Stable Transmission

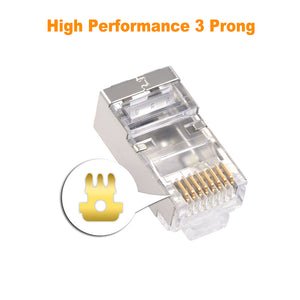

-The 3-prong design ensures a tighter bond between the contacts and the cores than 2-prong contacts, which provides a stable transmission;

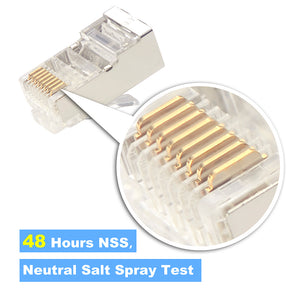

-The gold-plated contacts minimize the risk of corrosion and oxidation, ensuring stable data transmission.
